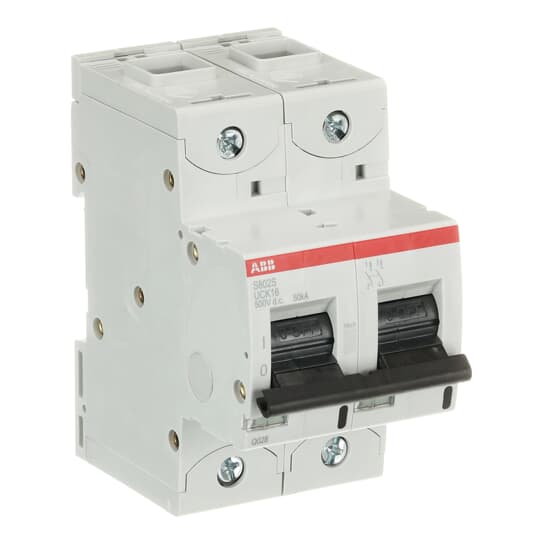

S802S-UCK16 High Performance MCB – Image 2 of 3

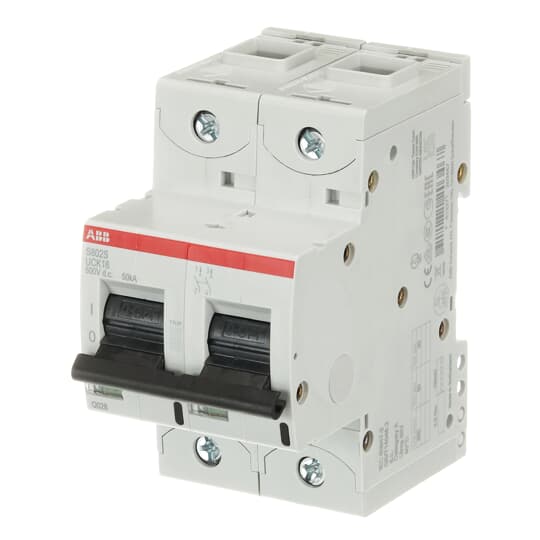

S802S-UCK16 High Performance MCB – Image 3 of 3

1 / 3

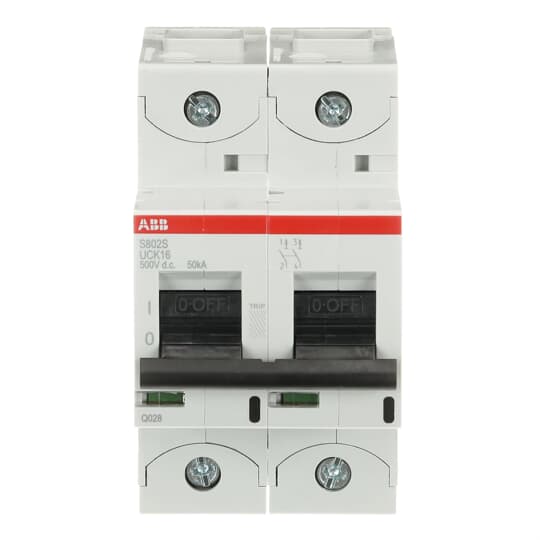

S802S-UCK16 High Performance MCB

Name: S802S-UCK16 High Performance MCB
Brand: ABB
SKU: 2CCS862001R1467
Availability: InStock

S802S-UCK16 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £263.75 excl. VAT. Voltimum+ members earn 116 points per unit.

S802S-UCK16 High Performance Miniature Circuit Breaker 2 Poles K Characteristic 16A 50kA 250VDC

Product identifiers

SKU: 2CCS862001R1467

EAN: 7612271203467

GTIN: 7612271203467

MPN: S802S-UCK16

Loyalty points: 116

Price: £ 263.75 Excl. VAT

Specifications

Frequency
Power loss	6.2
Voltage type	DC
Rated current	16
Rated voltage	-
Built-in depth	82.5
Explosion-proof	no
Pollution degree	2
Over voltage category	3
Current limiting class	3
Release characteristic	Other
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	1500
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	8
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
