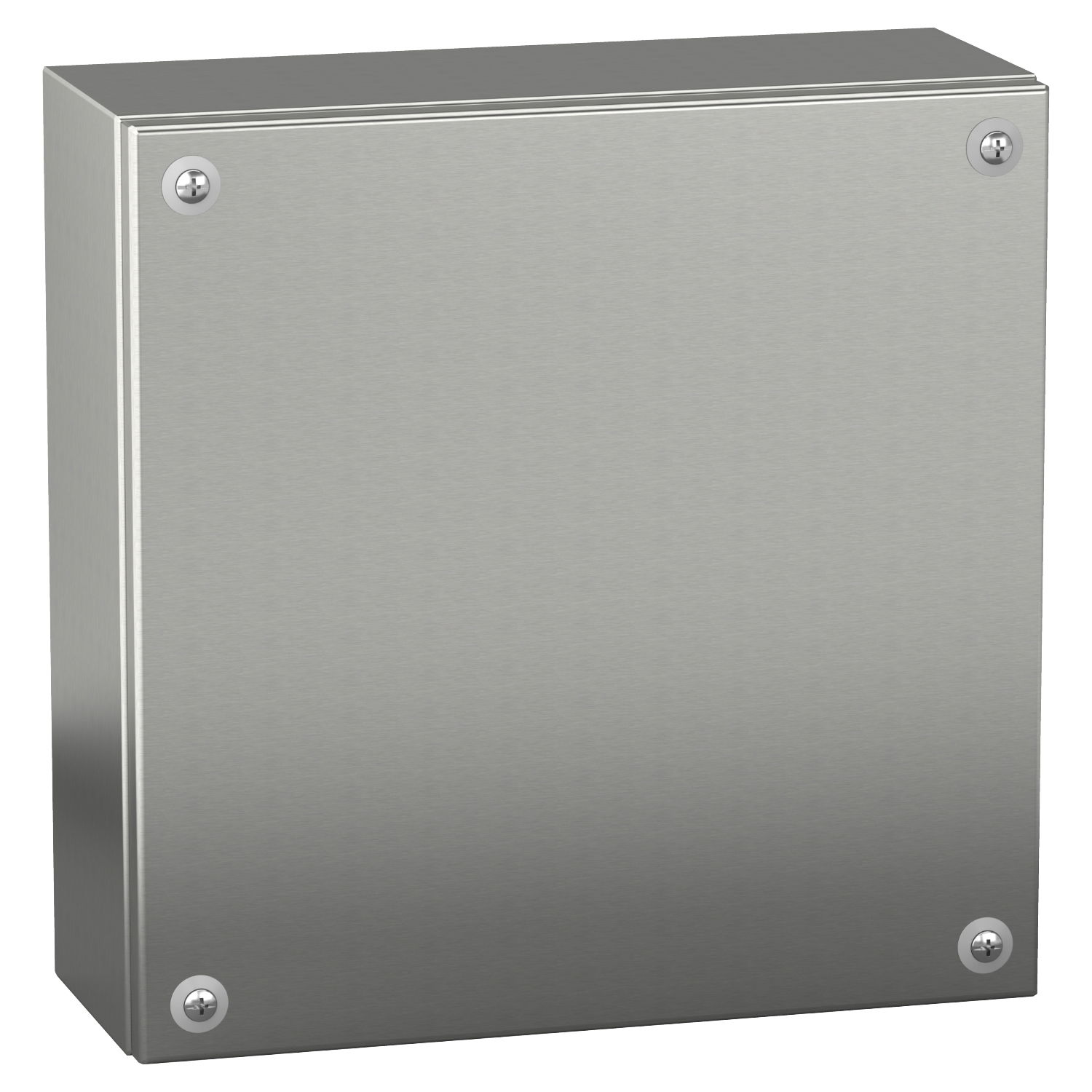

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66"

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x200x80 mm, IP66"

Industrial box for Spacial SBX. Multi purpose. 200 x 200 x 80 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover by captive screws Cover by 4 captive screw PZ2 outside sealed area. Made of stainless steel 304L. Protection IP 66, IK10.

Product identifiers

SKU: NSYSBX20208
EAN: 3606481715180
GTIN: 3606481715180
MPN: NSYSBX20208

V+ Loyalty points:

70

Price: £ 190.24 Excl. VAT

Videos

How to video

Specifications

Depth 80 mm
Shape Square
Width 200 mm
Colour Grey
Length 200 mm
EFUK0020 no
EFUK0021 yes
Material Stainless steel
RAL-number 7035
Halogen free yes
Type of inlet -
For Ex-zone gas None
Mounting method Surface mounted
Cover attachment Screwed
Number of inlets 0
Extension possible no
Operating temperature
Explosion-tested version no
Degree of protection (NEMA) 4
Rated insulation voltage Ui -
Material plate thickness cabinet 1.2 mm
