Converter module 24 W - 24..28.8 V DC, 12 V DC - 2 A - for regulated SMPS

Link copied
SKU
EAN
GTIN
MPN

Converter module 24 W - 24..28.8 V DC, 12 V DC - 2 A - for regulated SMPS by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and TLA. It is currently in stock at all of them. Trade prices range from £98.72 to £192.70 excl. VAT. Voltimum+ members earn 20 points per unit.

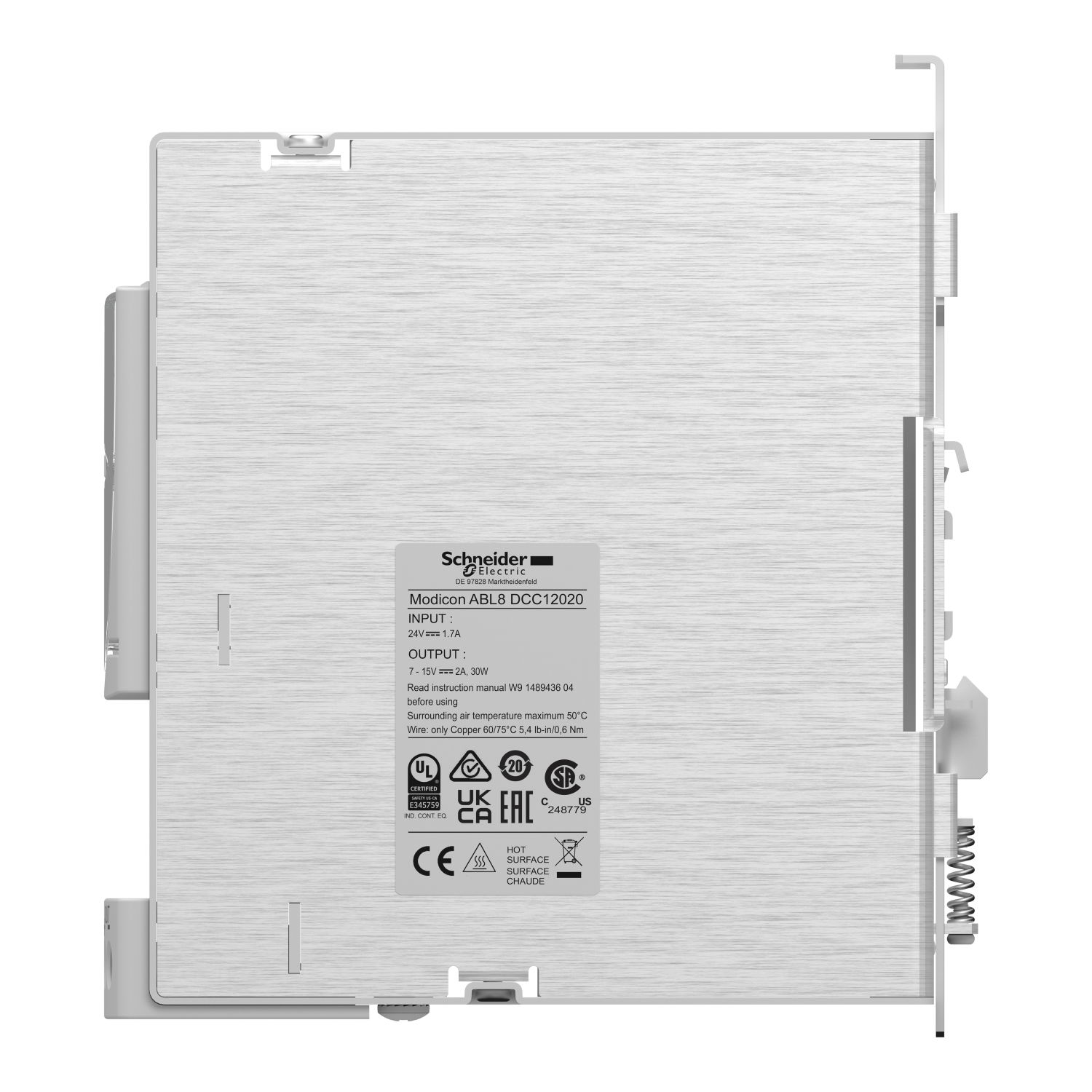

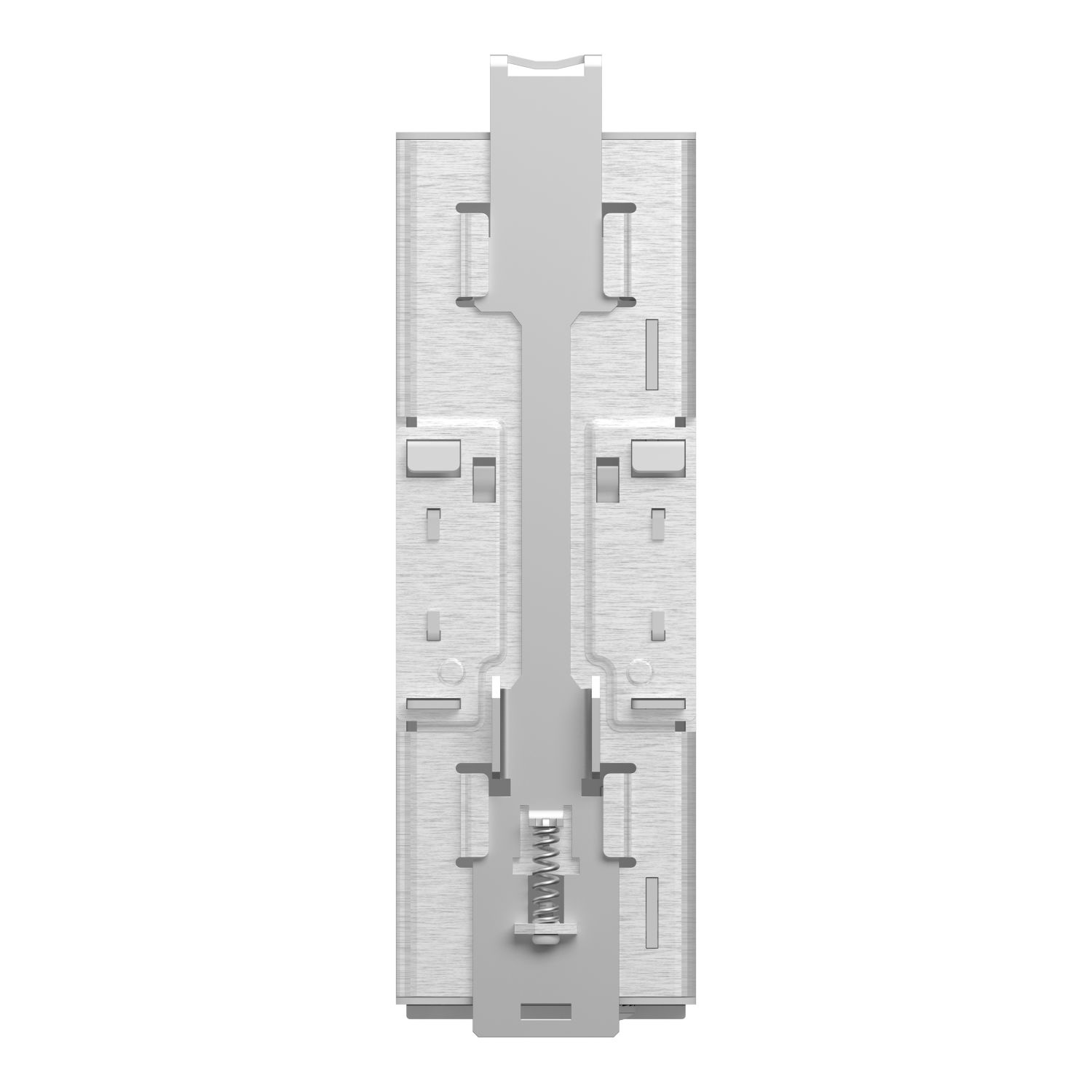

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Voltimum+ Loyalty Programme Loyalty points: 20

Price range: £ 98.72 - £ 192.70 Excl. VAT

Specifications

Depth 140 mm
Width 44 mm
Height 143 mm
Stabilized yes
Power output 24 W
Built-in width -
Built-in height -
Modular version yes
Short-circuit-proof yes
Max. output current 2 -
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable yes
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) DC
Nominal value output current 2 -
Nominal value output voltage 1 12 V
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 None

Documents

Declaration of Conformity (Sustainability)

ABL8DCC12020 REACh Regulation

Open

Instruction sheet

ABL8DCC...DC/DC converters Phaseo Universal, Instruction Sheet (EN)

Open

Product data sheet

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open
