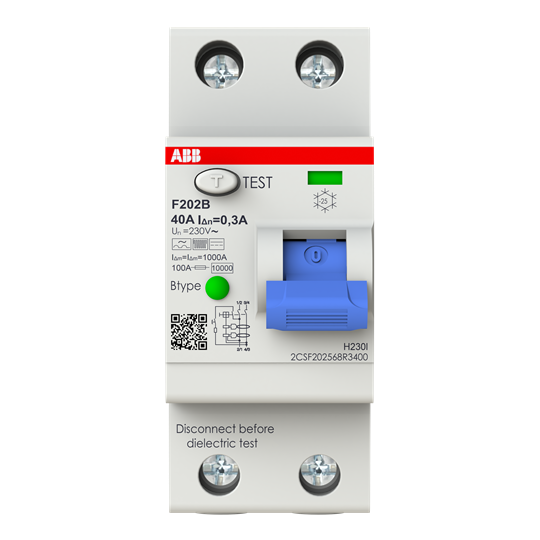

Residual Current Circuit Breaker F200 - 2P - 300 mA - 40 A - Type B

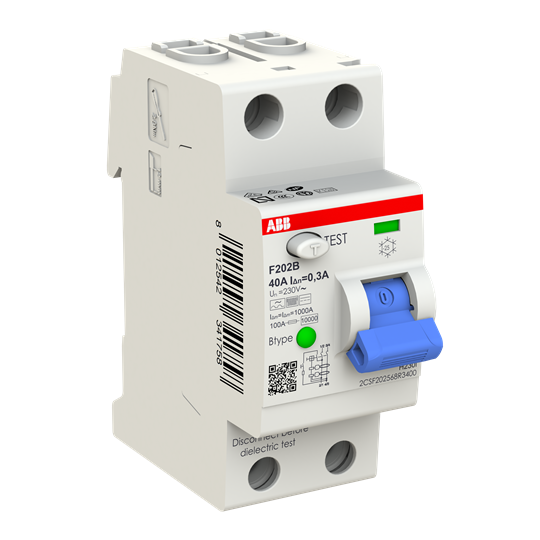

Residual Current Circuit Breaker F200 - 2P - 300 mA - 40 A - Type B – Image 2 of 3

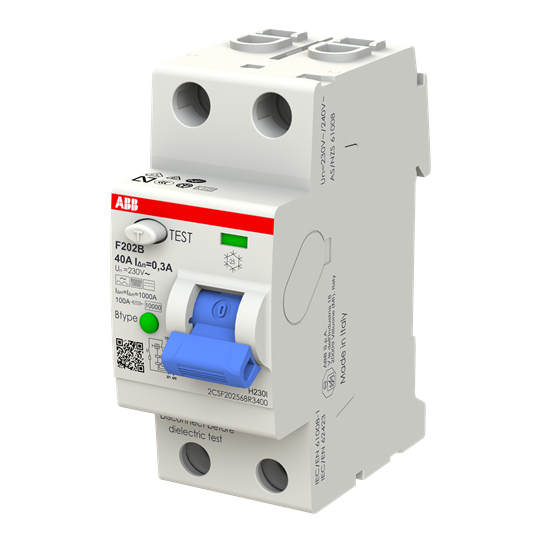

Residual Current Circuit Breaker F200 - 2P - 300 mA - 40 A - Type B – Image 3 of 3

1 / 3

Residual Current Circuit Breaker F200 - 2P - 300 mA - 40 A - Type B

Name: Residual Current Circuit Breaker F200 - 2P - 300 mA - 40 A - Type B
Brand: ABB
SKU: 2CSF202568R3400
Availability: InStock

Residual Current Circuit Breaker F200 - 2P - 300 mA - 40 A - Type B by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £541.17 excl. VAT. Voltimum+ members earn 284 points per unit.

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

Product identifiers

SKU: 2CSF202568R3400

EAN: 8012542341758

GTIN: 8012542341758

MPN: F202 B-40/0.3

Loyalty points: 284

Price: £ 541.17 Excl. VAT

Specifications

Frequency	Other
Power loss	3.6
Voltage type	-
Rated current	40
Rated voltage	-
Built-in depth	69
Explosion-proof	no
Mounting method	DIN rail
Number of poles	2
Pollution degree	2
Rated fault current	-
Leakage current type	B
RAL-number (similar)	7035
Selective protection	no
Surge current capacity	3
With interlocking device	no
Degree of protection (IP)	IP20
Rated insulation voltage Ui	-
Short-time delayed tripping	no
Additional equipment possible	yes
Width in number of modular spacings	2
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Short-circuit breaking capacity (Icw)	-
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
