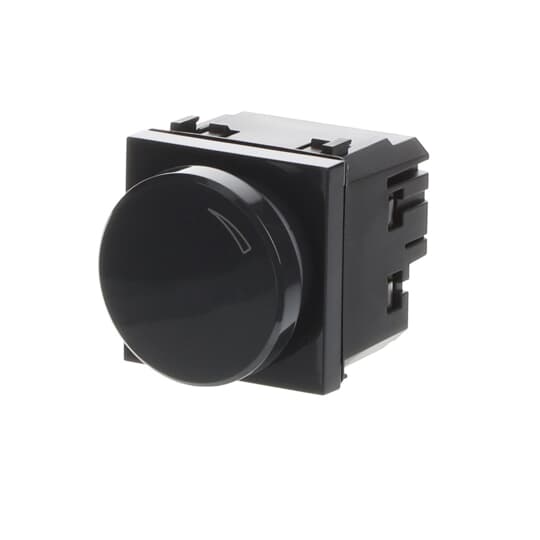

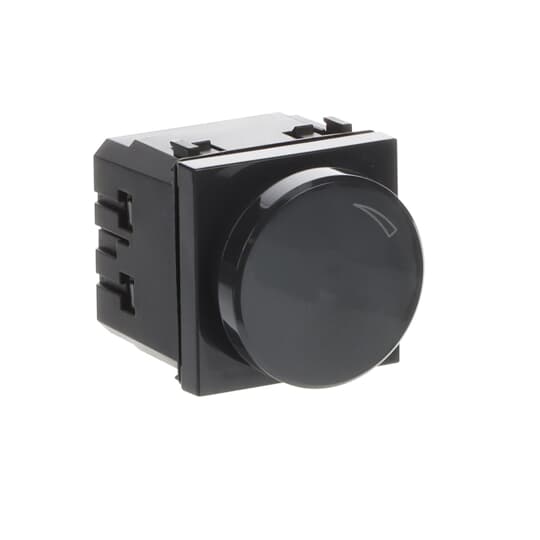

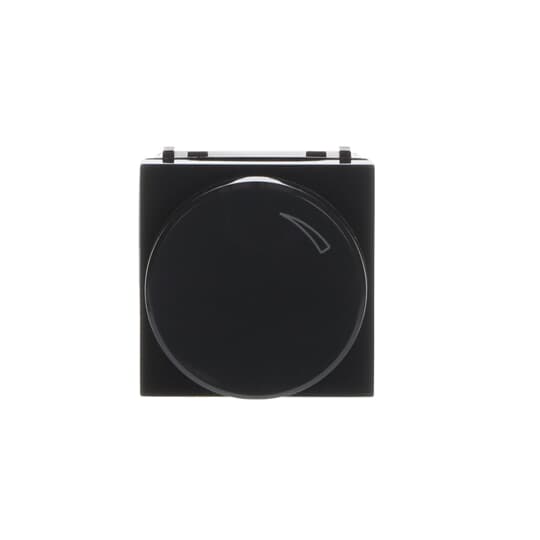

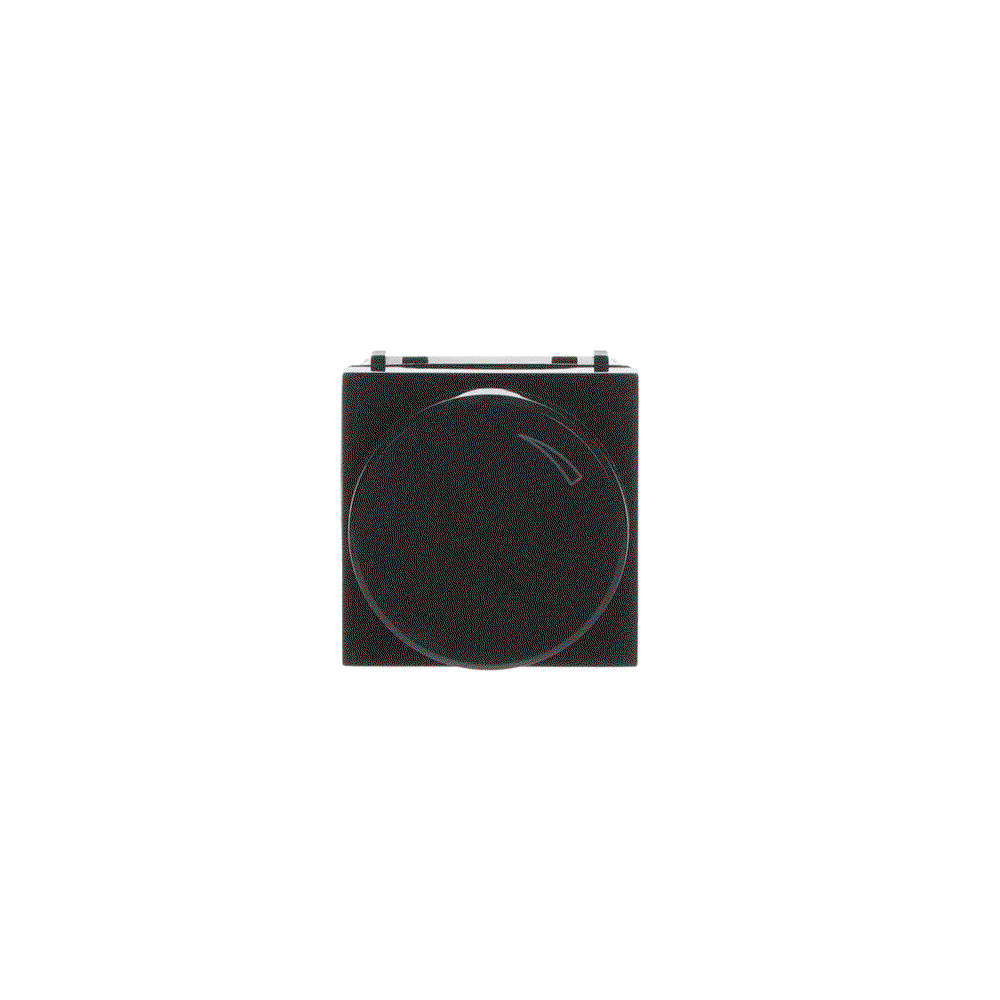

Dimmer 1-gang Anthracite Polished - Millenium
Rated voltage: 230 Vac ± 10%.
Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz
(Nominal power: 200 W/VA).
Power (min./max load):
- LEDi: 2 / 100 W/VA (max. 10 lamps).
- Dimmable energy saving lamps:
2 / 100 W/VA (max. 10 lamps).
- LV LEDi with transformer (only type L or LC):
4 / 100 W/VA (max. 10 lamps).
- Incandescent lamps: 10 / 250 W/VA.
- Halogen lamps: 10 / 250 W/VA.
- LV halogen with transformer (only type L or LC):
10 / 250 W/VA (max. 10 lamps).
2 wire connection.
Optional: auxiliary on/off with 2-way switch N2X02.
Indicator LED lamp included.
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.
Combination with frames AMD5144-XX & 5244-XX
Product identifiers
SKU: 2CLA626030N1801
EAN: 8427238138404
GTIN: 8427238138404
MPN: AMD60344-AN
Loyalty points:
63
Price: £ 108.23 Excl. VAT
ETIM Group
Specifications
| Colour | Anthracite |
| Material | Metal |
| Frequency | |
| Transparent | no |
| Device depth | 32 |
| Device width | 44 |
| Halogen free | no |
| Type of load | Resistive load |
