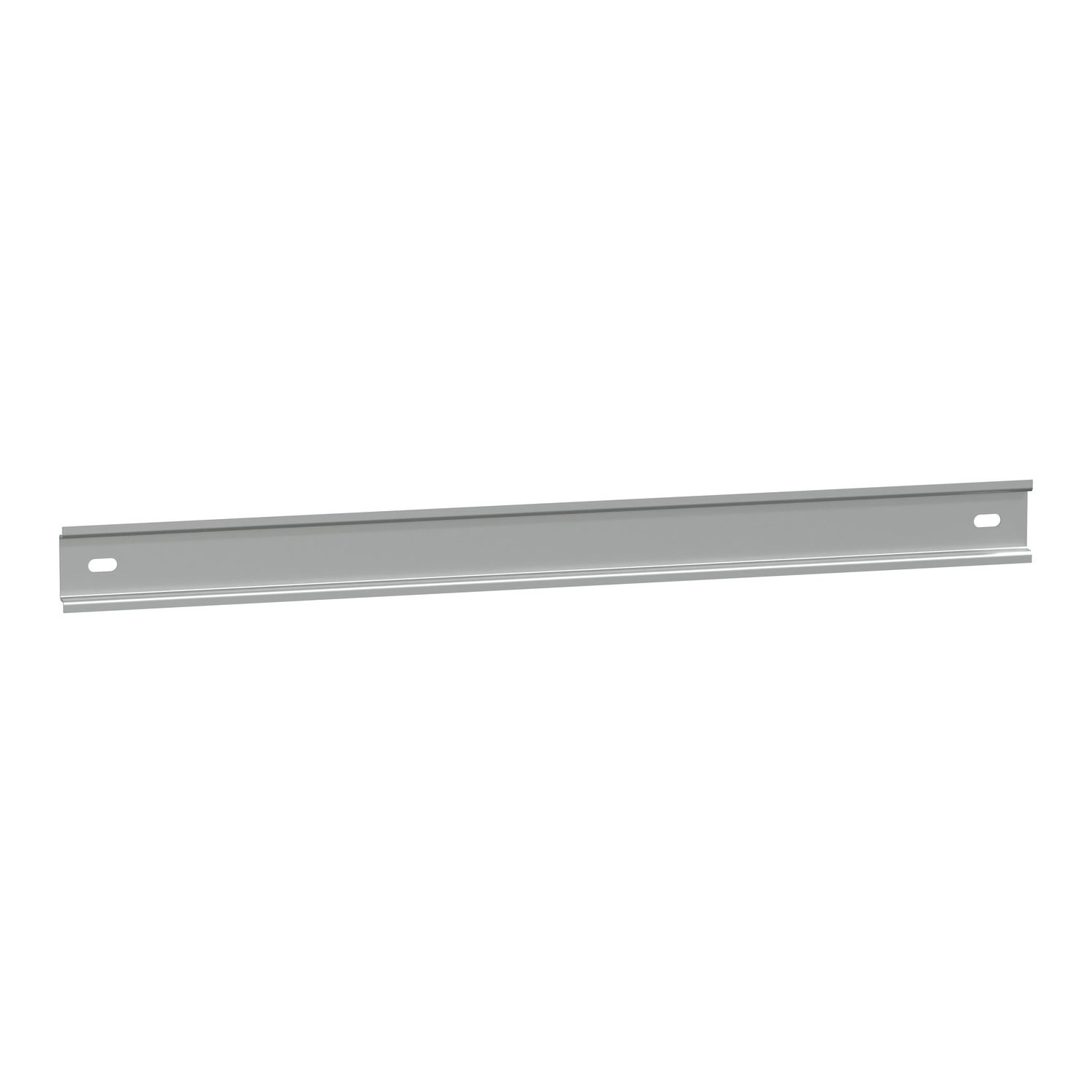

35mm symetrical DIN rail -L 380mm for using with NSYTCSxx in PLM54 and 64
PanelSeT PLM 35mm symetrical DIN rail. L is 280 mm. For using with NSYTCSxx in PLM43. Fixing by element rear of enclosure. Plastic nut mounting support. DIN rail adjustment in height, pitch 25 mm. Steel made, zinc coated surface finish.
Product identifiers
SKU: NSYCS400PLM
EAN: 1360648019165
GTIN: 1360648019165
MPN: NSYCS400PLM
Loyalty points:
1
Price: £ 4.51 Excl. VAT
Categories
ETIM Group
Specifications
| Model | DIN rail (top hat rail) 35/7.5 mm |
| Height | 7.5 mm |
| Length | 410 mm |
| Material | Steel |
| Punch shape | Round hole |
| Material thickness | 1 mm |
| Surface protection | Continuously galvanised |
| Drill hole distance centrically | 375 mm |
