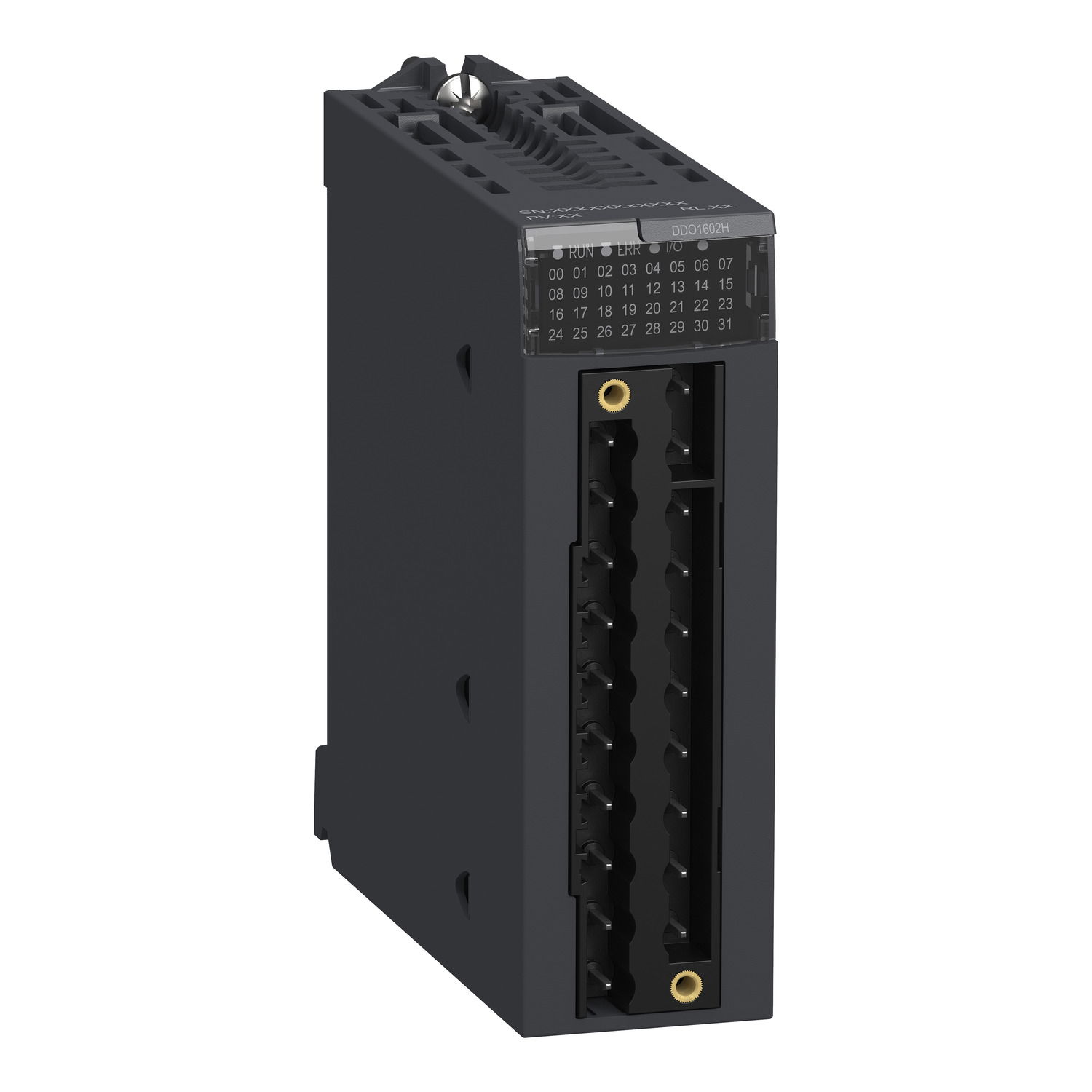

Discrete output module X80 - 16 O - 24 V DC - for severe environments

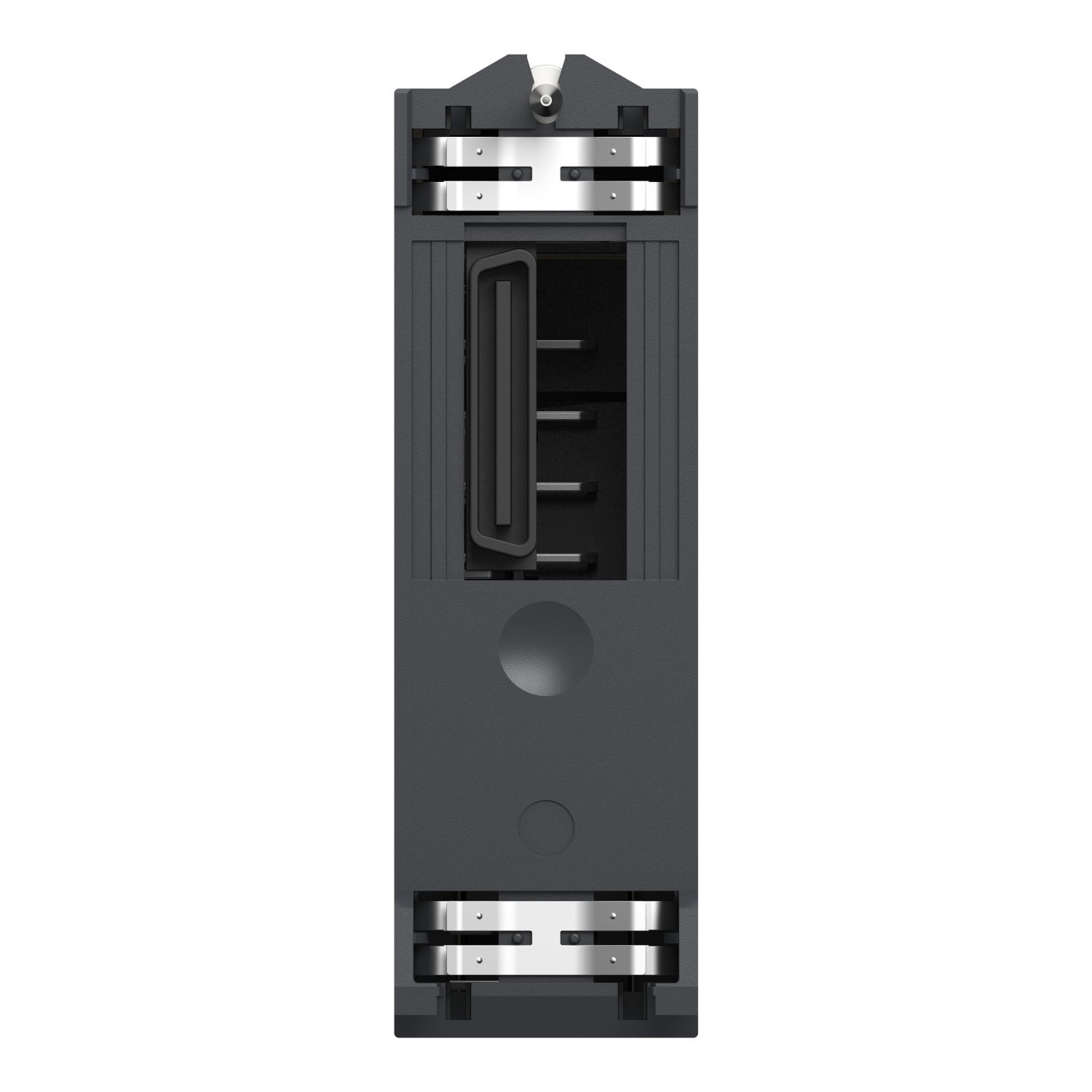

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 2 of 7

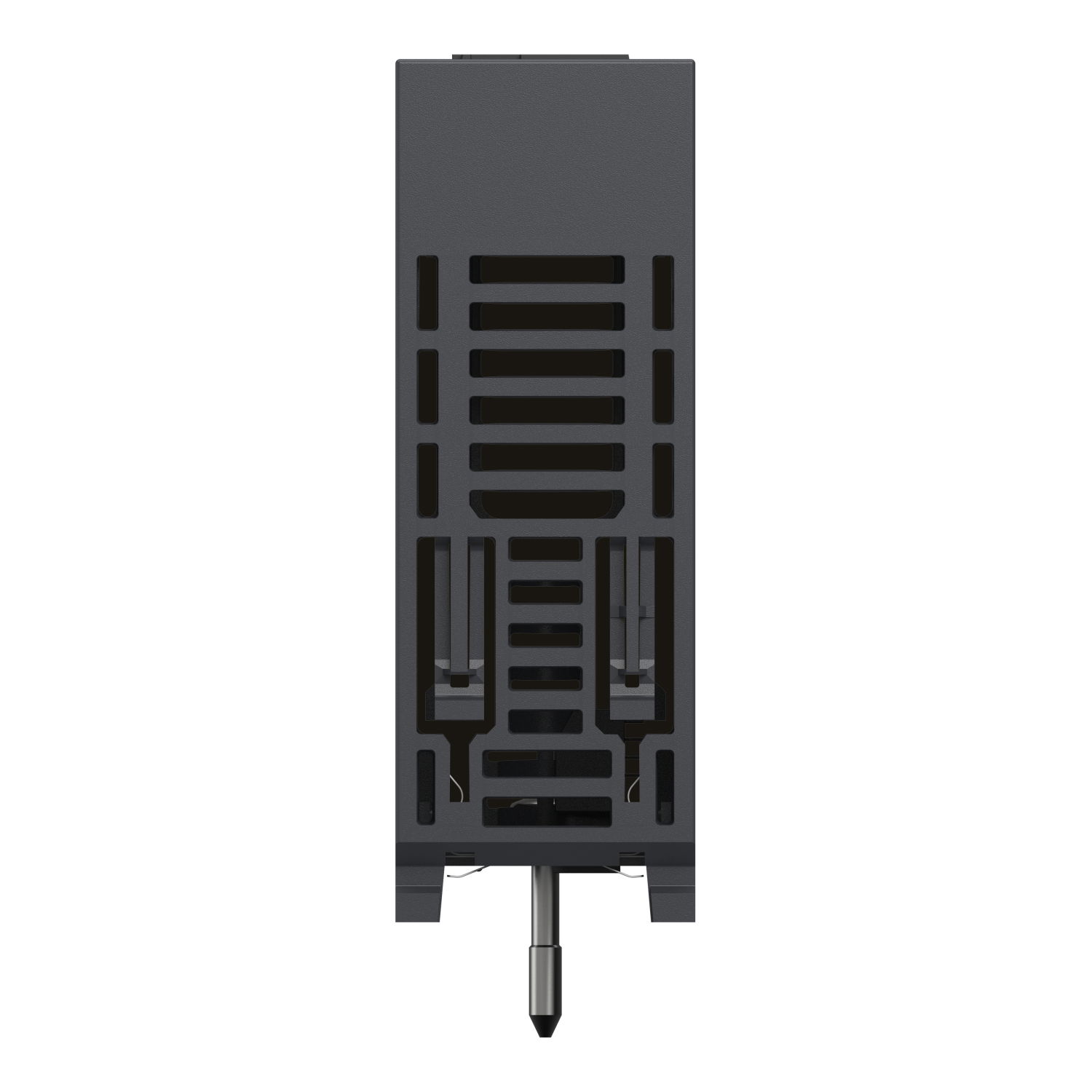

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 3 of 7

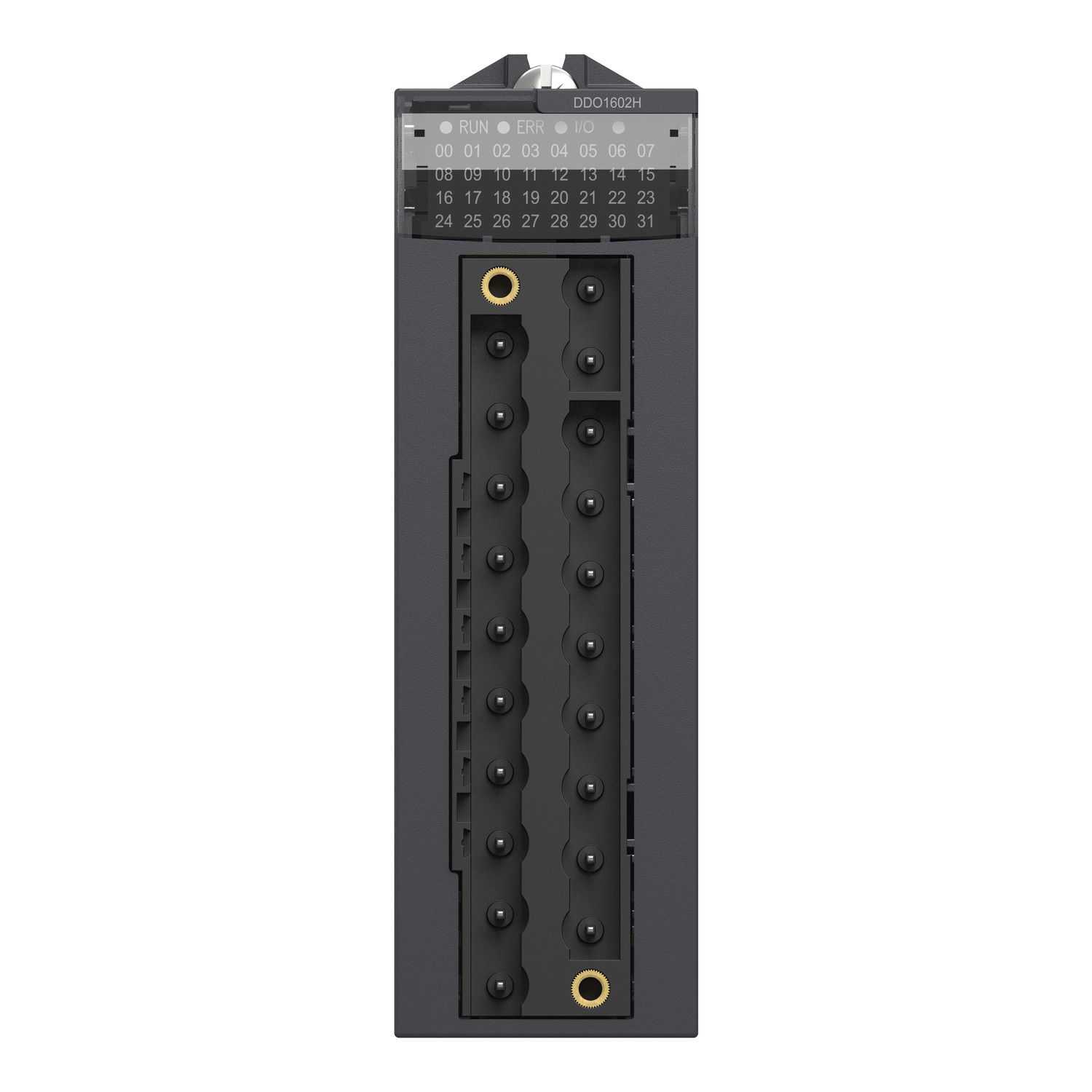

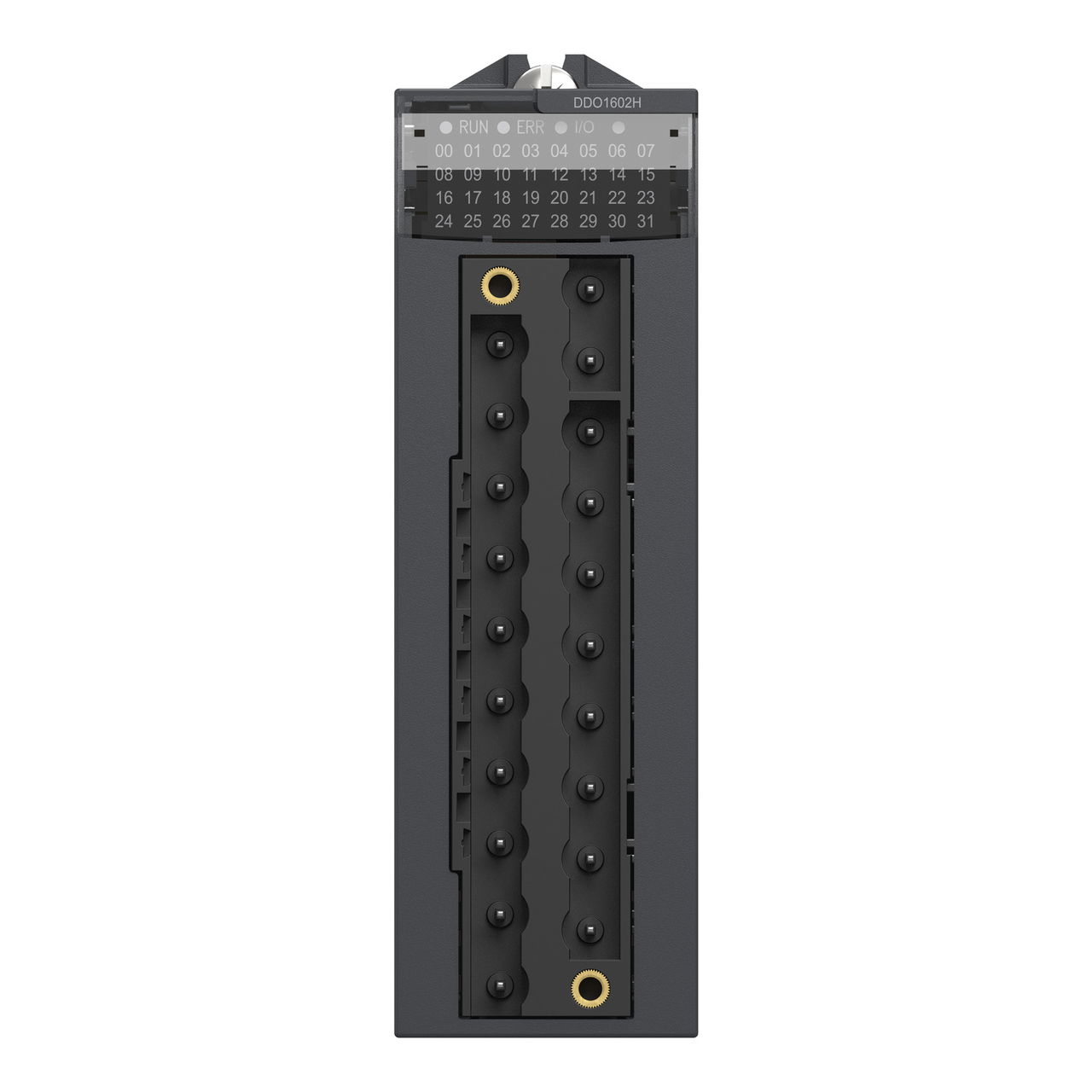

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 4 of 7

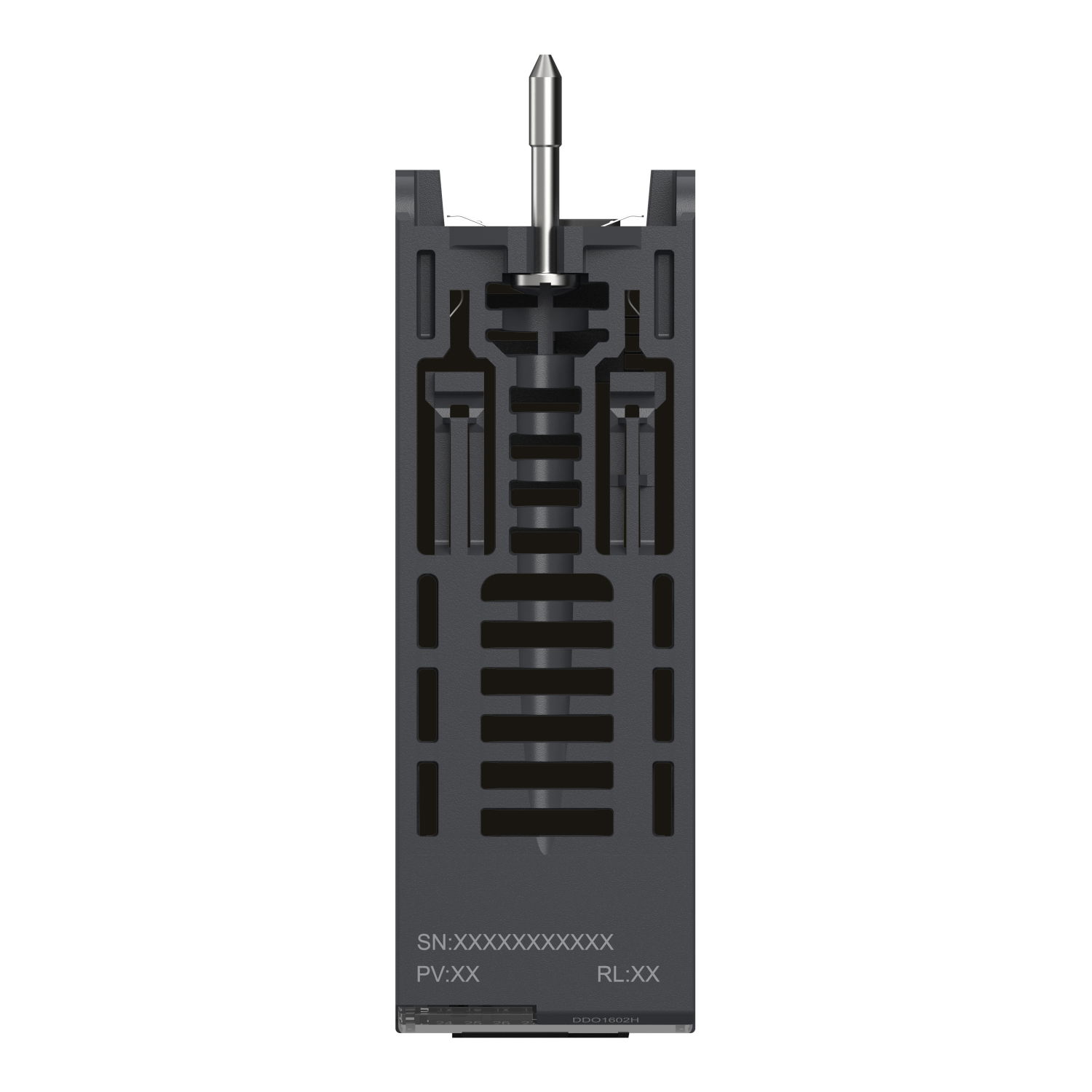

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 5 of 7

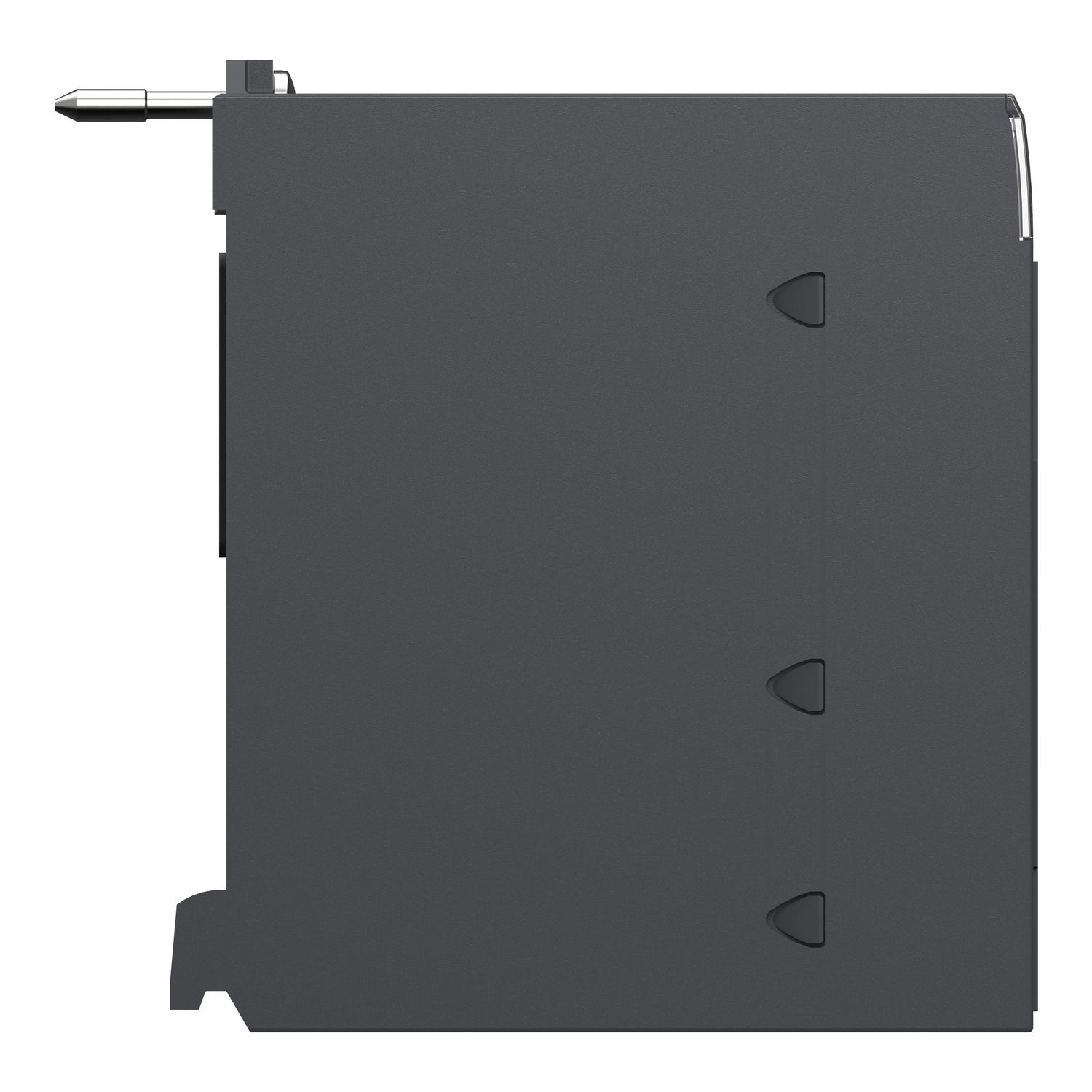

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 6 of 7

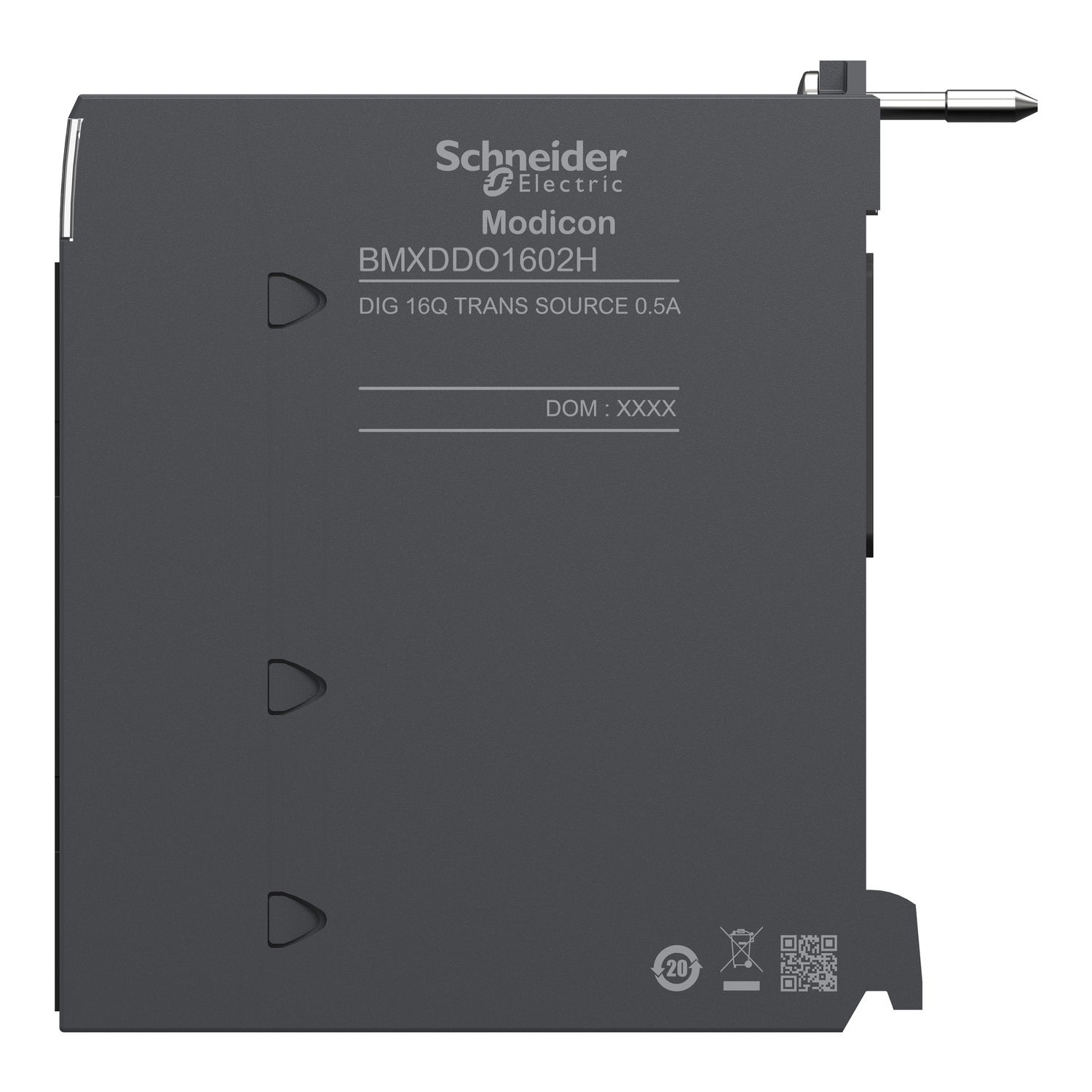

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 7 of 7

1 / 7

Discrete output module X80 - 16 O - 24 V DC - for severe environments

Name: Discrete output module X80 - 16 O - 24 V DC - for severe environments
Brand: Schneider Electric
SKU: BMXDDO1602H
Availability: InStock

Discrete output module X80 - 16 O - 24 V DC - for severe environments by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £306.59 excl. VAT. Voltimum+ members earn 35 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 4W, a typical current consumption 79mA at 3.3V DC and 0.6A current per channel. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 392285 hours of MTBF. It is an IP20 rated product. It weighs 0.12kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Product identifiers

SKU: BMXDDO1602H

EAN: 3595864025766

GTIN: 3595864025766

MPN: BMXDDO1602H

Loyalty points: 35

Price: £ 306.59 Excl. VAT

Specifications

Depth	150 mm
Width	33 mm
Height	100 mm
Redundancy	no
Output current	0.5 A
Power consumption	4 W
Supply voltage DC
Type of digital output	Transistor
Type of output voltage	DC
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Number of digital inputs	0
Input current at signal 1	0.65 mA
Number of digital outputs	16
Permitted voltage at input
SIL according to IEC 61508	None
Digital inputs configurable	no
Permitted voltage at output
Time delay at signal change
Type of electric connection	Plug-in connection
Digital outputs configurable	yes
Suitable for safety functions	no
Voltage type (supply voltage)	DC
Type of voltage (input voltage)	DC
Appendant operation agent (Ex ia)	no
Appendant operation agent (Ex ib)	no
Explosion safety category for gas	None
Explosion safety category for dust	None
Short-circuit protection, outputs available	yes
Performance level according to EN ISO 13849-1	None
