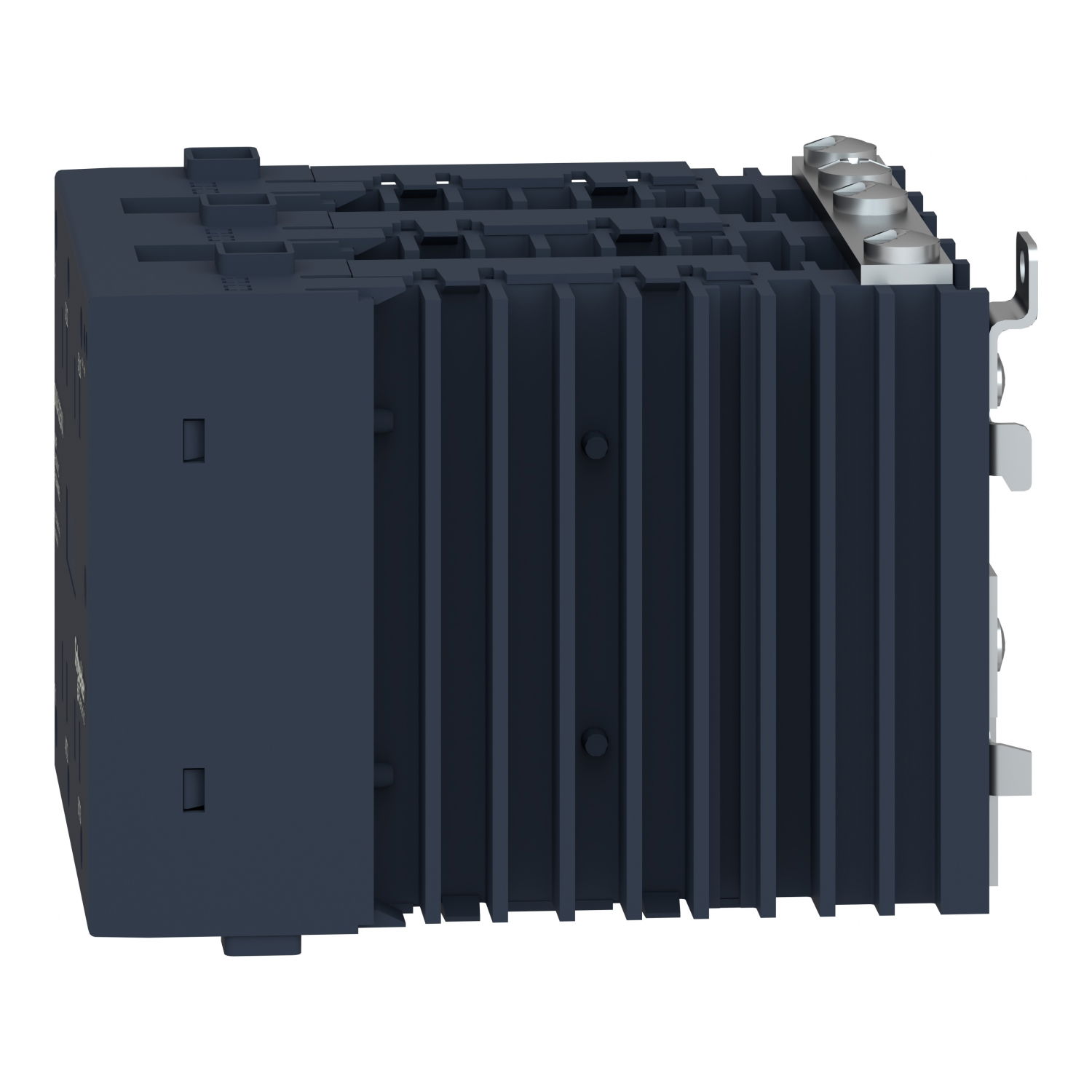

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC – Image 3 of 9

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC – Image 4 of 9

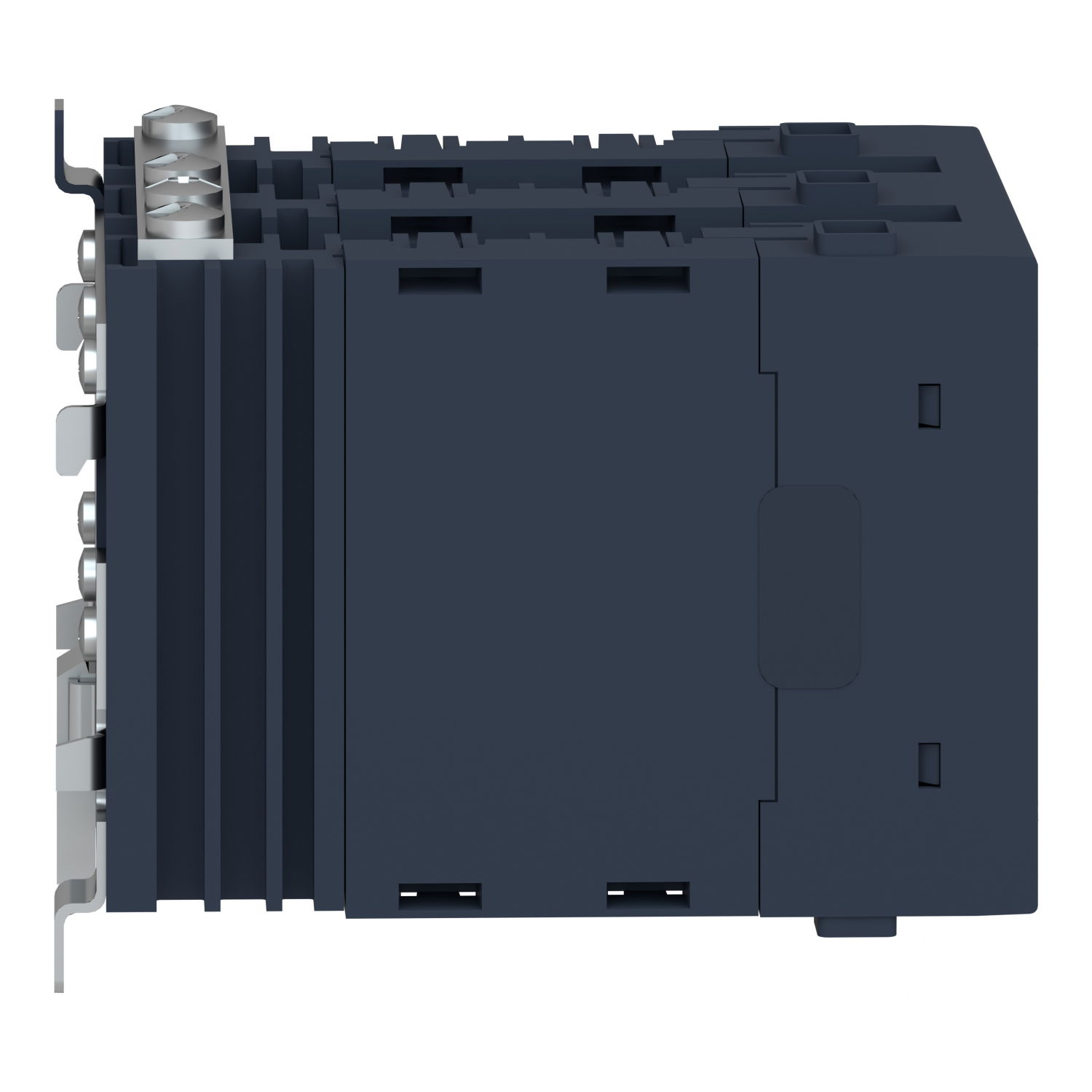

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC – Image 5 of 9

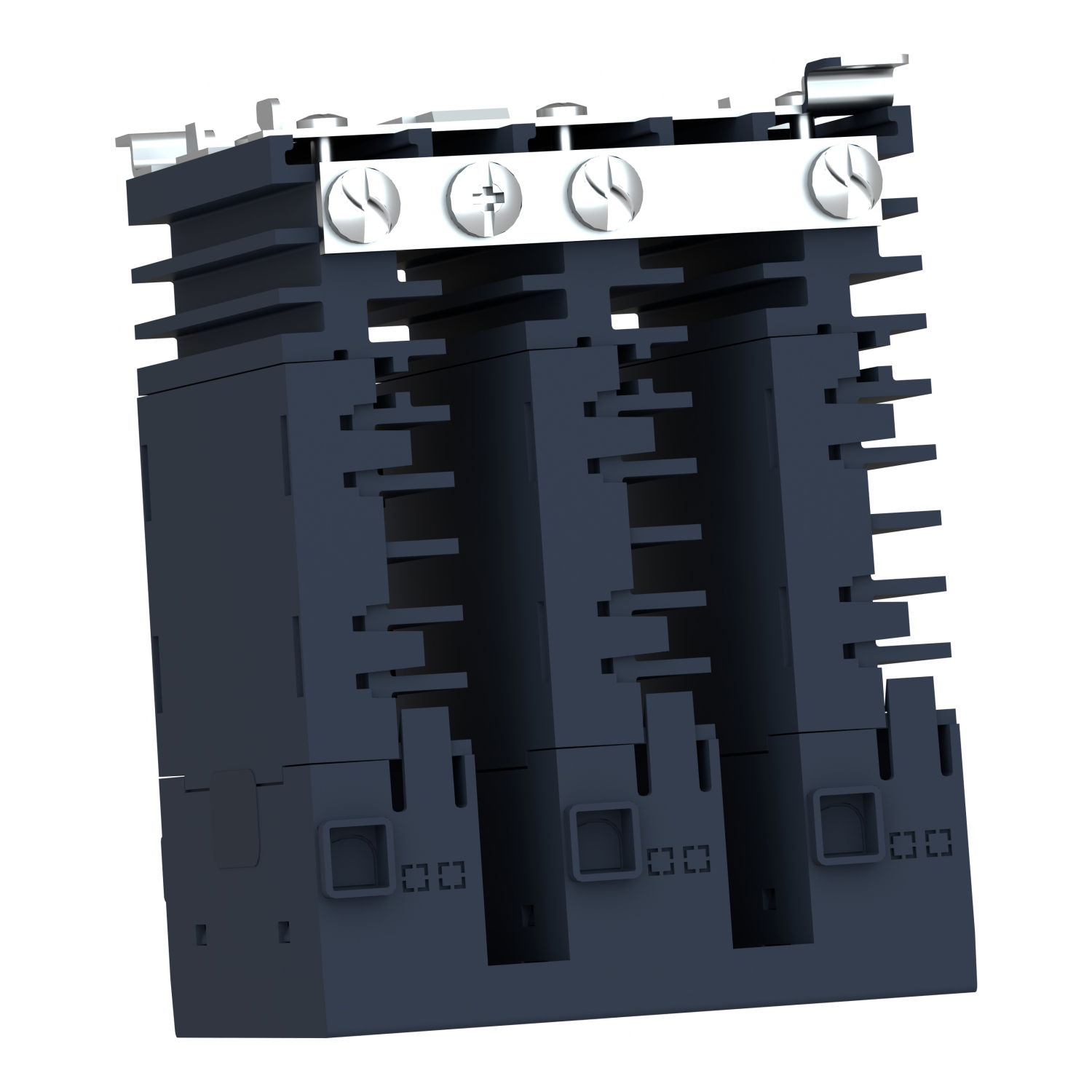

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC – Image 6 of 9

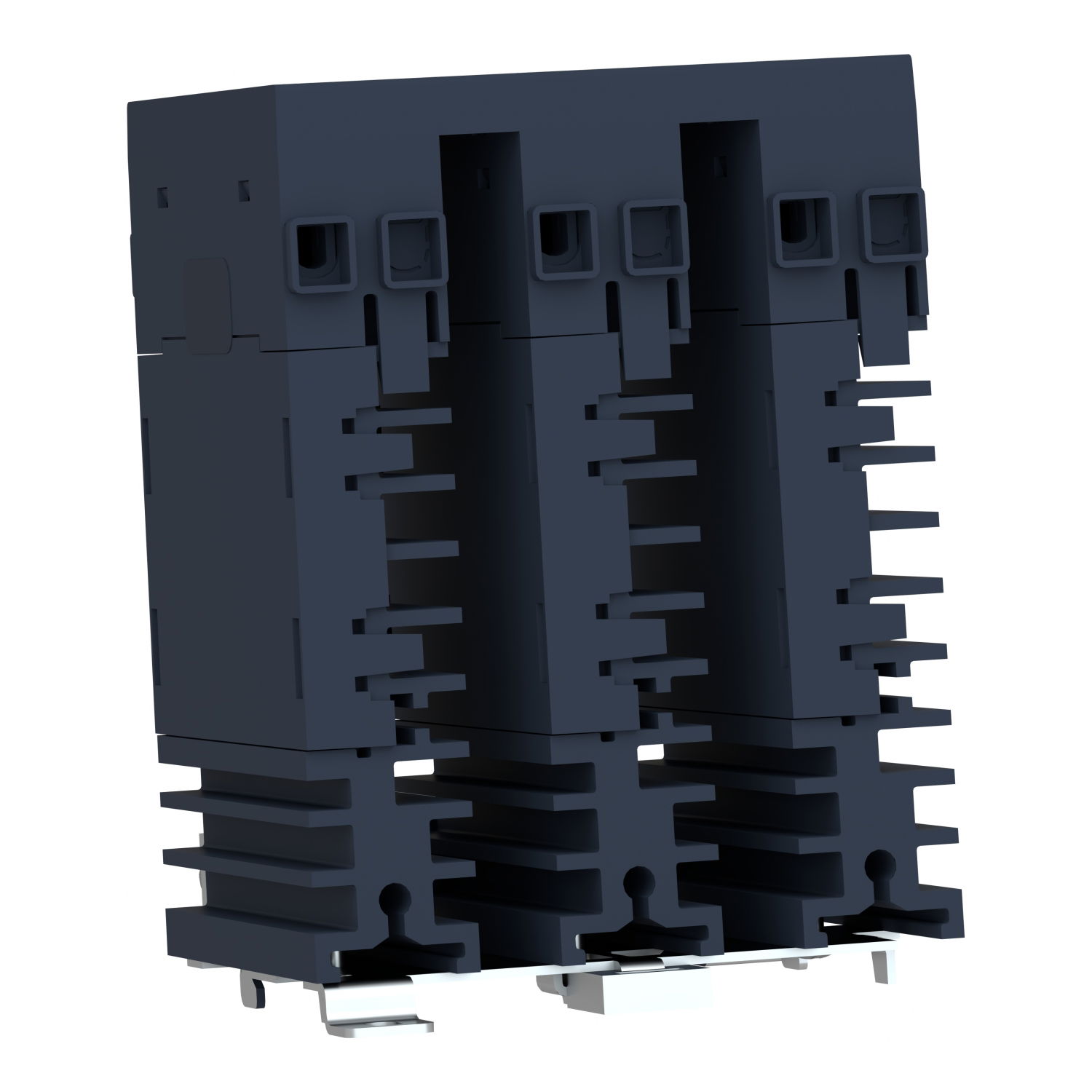

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC – Image 7 of 9

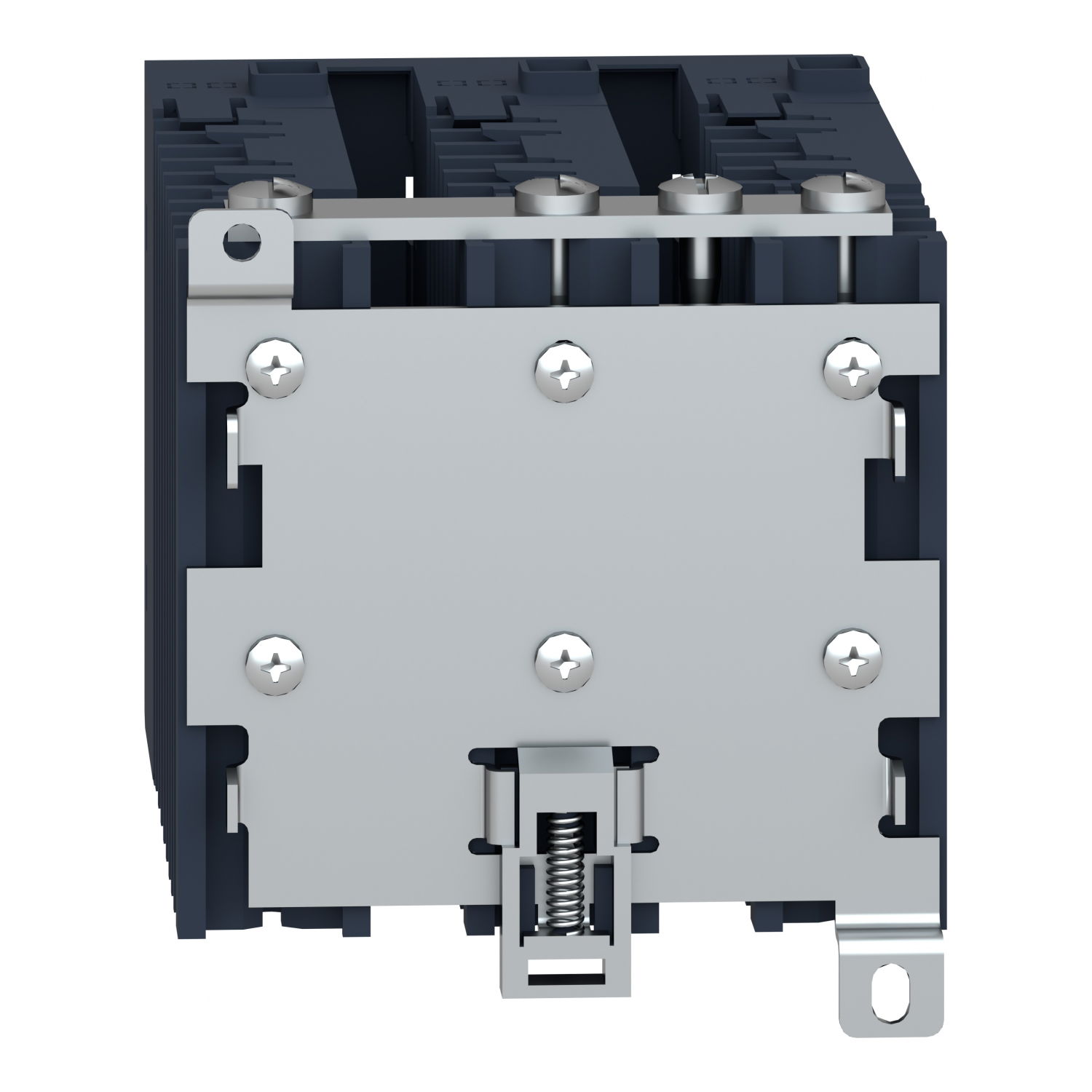

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC – Image 8 of 9

1 / 9

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC

Name: Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC
Brand: Schneider Electric
SKU: SSM3A325BD
Availability: InStock

Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £202.86 to £210.01 excl. VAT. Voltimum+ members earn 28 points per unit.

This SSM three-phase solid state relay is part of the range of solid state modular relays Harmony. It features 25A power rating and 1NO contact. It features a control circuit voltage of 4V to 32V DC and an output voltage (load output) of 48V to 660V AC. This relay is maintenance free, fully electronic with unlimited life span. It features a control input voltage LED indicator in green. Its protection index is IP20. It weighs 740g and its dimensions are, 90mm wide, 97mm high, 123.8mm deep. 0 It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. 0 0 0 It can be mounted on 35mm DIN rail. 0 0 0

Product identifiers

SKU: SSM3A325BD

EAN: 3606485441719

GTIN: 3606485441719

MPN: SSM3A325BD

Loyalty points: 28

Price range: £ 202.86 - £ 210.01 Excl. VAT

Specifications

Depth	-
Model	-
Width	-
Height	-
Modular version	yes
Number of phases	3
With LED indication	-
Complete with socket	-
Operating voltage DC
With detachable clamps	-
Type of switch function	-
Degree of protection (IP)	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Switching at zero-crossing	no
Voltage type for actuating	AC/DC
Type of electric connection	-
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated operation current Ie at AC-1	25 A
Rated operation current Ie at AC-3	25 A
Rated operation current Ie at AC-51	25 A
Rated operation current Ie at AC-53a	25 A
Rated operation current Ie at AC-53b	25 A
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Relay technology category according to IEC 61810-7	-
