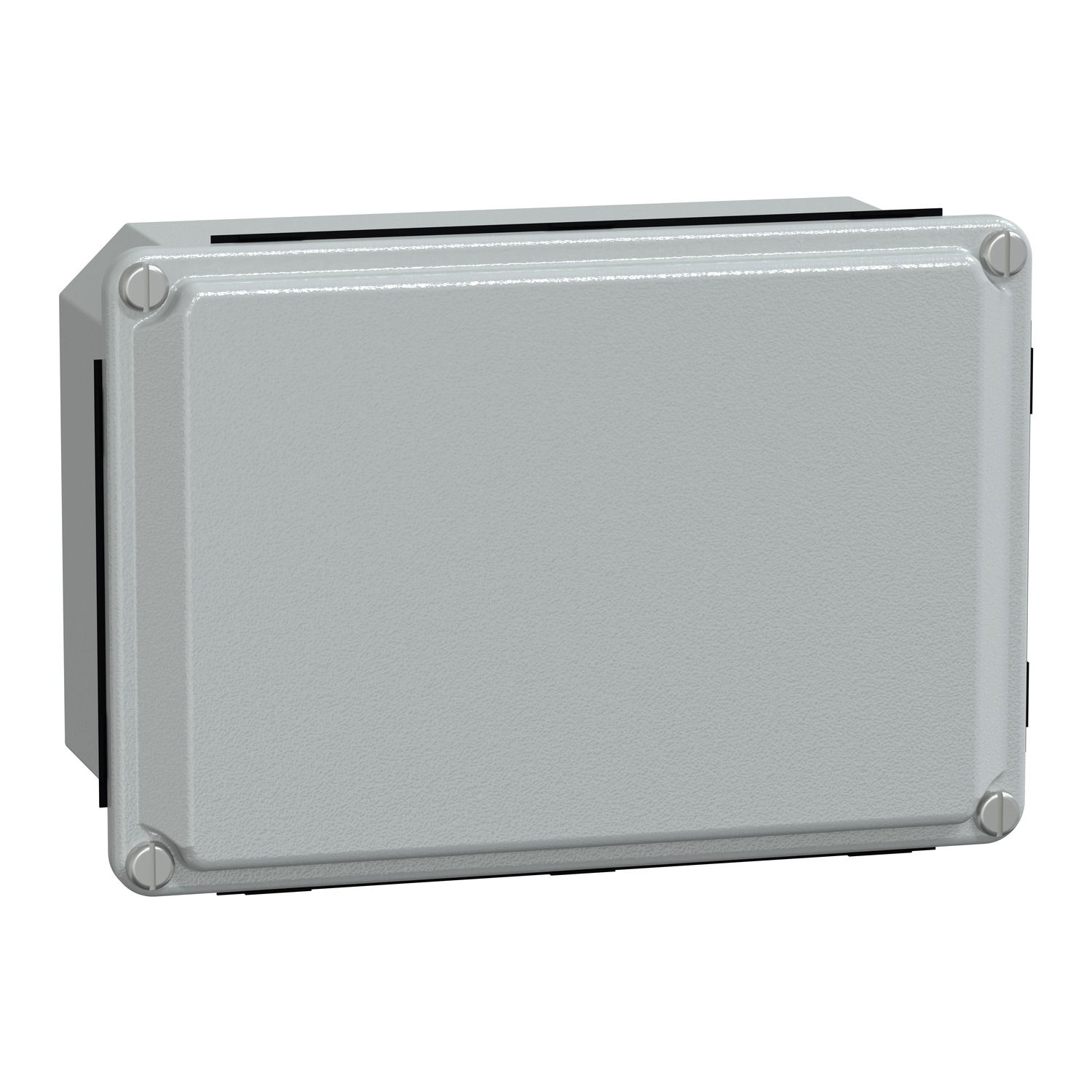

Metal industrial box - low plain cover - H155xW105xD61 - IP55 - grey RAL 7035

Name: Metal industrial box - low plain cover - H155xW105xD61 - IP55 - grey RAL 7035
Brand: Schneider Electric
SKU: NSYDBN1510
Availability: InStock

Product identifiers

SKU: NSYDBN1510

EAN: 2360648018784

GTIN: 2360648018784

MPN: NSYDBN1510

Loyalty points:
8

Price: £ 21.01 Excl. VAT

ETIM Group

Connection material (electrotechnical)

Videos

How to video

Specifications

Depth	61 mm
Model	Junction box
Shape	Rectangular
Width	105 mm
Colour	Grey
Length	155 mm
Castable	no
Diameter	-
Material	Steel
Sealable	no
Connectable	no
Cover model	Blind cover
Halogen free	-
Weatherproof	yes
Equipped with	None
With screening	no
For Ex-zone gas	None
Mounting method	Wall-/ceiling mounting
Cover attachment	Screwed
For Ex-zone dust	None
Number of inlets	3
Circuit integrity	None
For tube diameter	32 mm
Transparent cover	no
Surface protection	Other
Inlet from the rear	no
Mounting in the soil	no
Mounting under water	no
Operating temperature
Explosion-tested version	no
Casting compound included	no
Degree of protection (IP)	IP55
Degree of protection (NEMA)	13
Rated insulation voltage Ui	-
Max. conductor cross section	32.5 mm²
Type of housing feed-through	None
