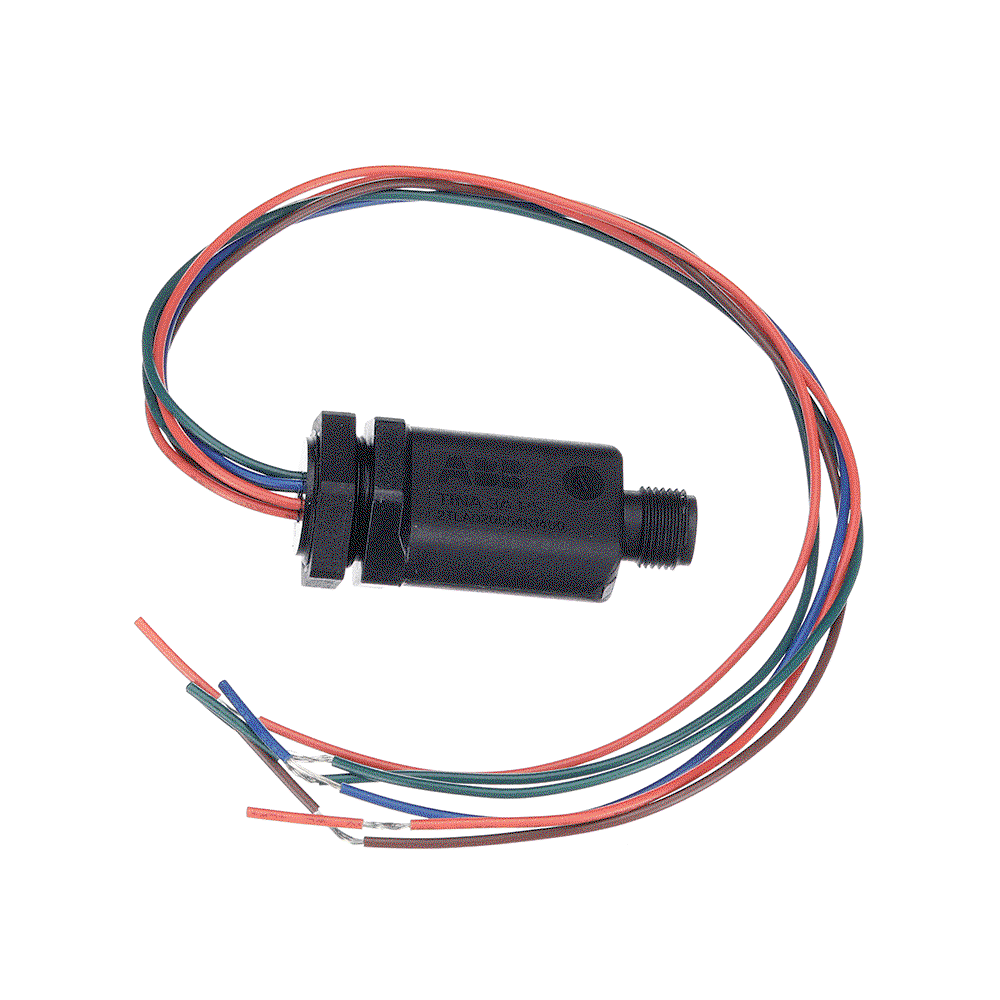

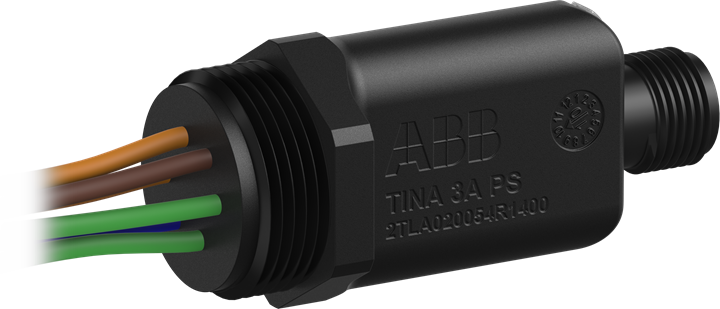

Tina 3Aps DYNlink adapter

Link copied
SKU
EAN
GTIN
MPN

Tina 3Aps DYNlink adapter by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £59.25 excl. VAT. Voltimum+ members earn 31 points per unit.

Tina 3Aps is used for adaptation of devices with two positively driven force-guided contacts like E-stop buttons and key switches, to the DYNlink solution, with extra conductor for the supply of the safety device. Tina 3A is mounted directly on the device enclosure to a M20 cable entry and has a M12-5 male connector for connection to the DYNlink loop. Connection to +24VDC and 0V on the device side.

Voltimum+ Loyalty Programme Loyalty points: 31

Price: £ 59.25 Excl. VAT

Specifications

Width 57
Height 24
Length 24
Rated voltage 24
Housing colour Black
Housing material Plastic
Pollution degree 2
Operating voltage
With LED indication no
Operating temperature
Material insulation body PBT
With potential separation no
Material of contact surface Gold
Type of connector for trunk line M12
Explosion safety category for dust None
Cable outer diameter for cable gland
Number of channels per connector slot 1
Max. current carrying capacity per socket 2
Max. current carrying capacity per I/O signal 2

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Tina_3A-3Aps_Product_Manual_(EN)_revF_2TLC172125M0201.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity_Tina_(EN)_2022_2TLC010057D0201_revC.pdf

Open
