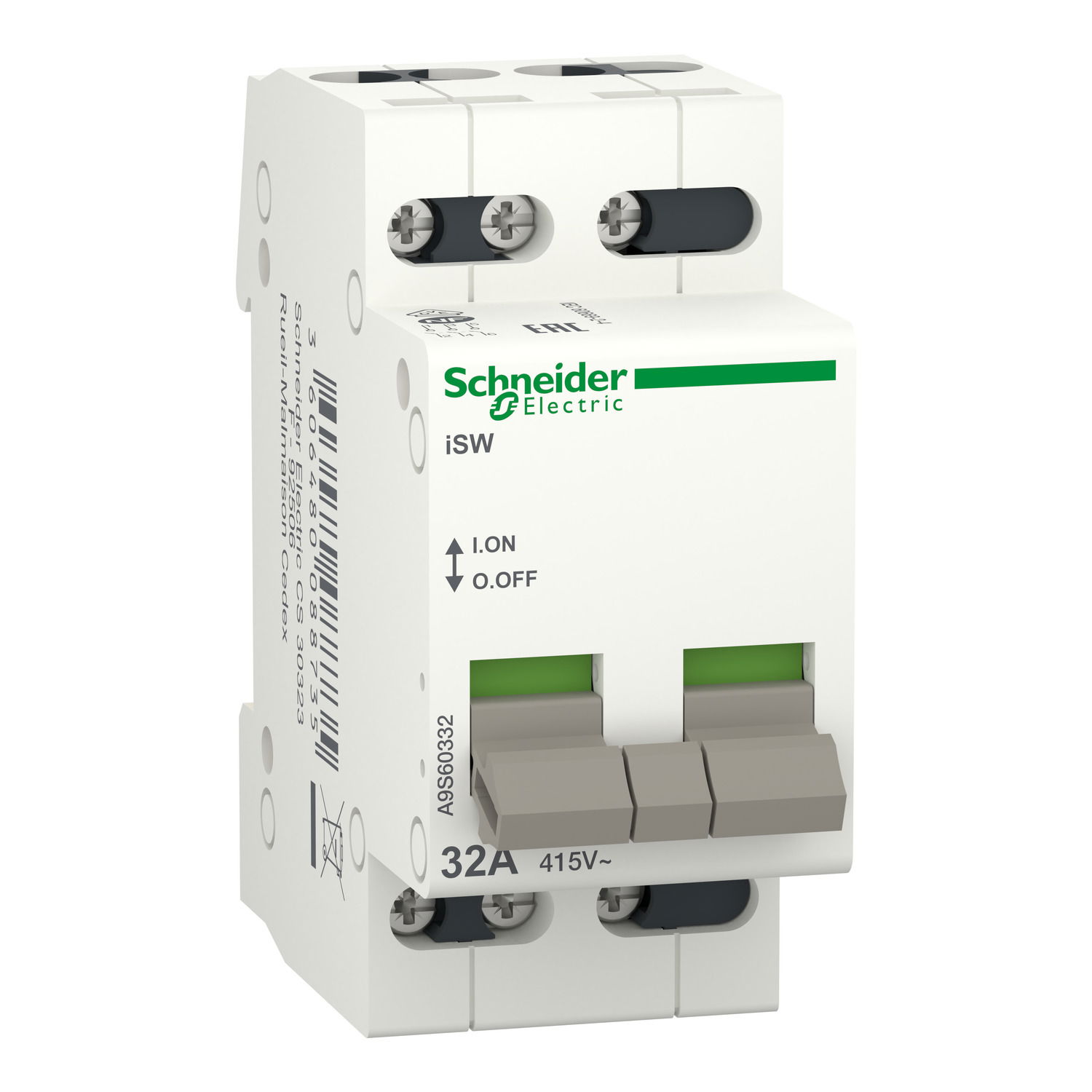

Switch Acti9 iSW - 3 poles - 32 A - 415V

Link copied
SKU
EAN
GTIN
MPN

Switch Acti9 iSW - 3 poles - 32 A - 415V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £40.03 excl. VAT. Voltimum+ members earn 5 points per unit.

This Acti9 iSW is a modular and reliable switch disconnector. it is a 3P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.

Voltimum+ Loyalty Programme Loyalty points: 5

Price: £ 40.03 Excl. VAT

Specifications

EFDE0032 yes
Lamp type -
Lamp socket -
Voltage type AC
Rated current 32 A
Rated voltage 415 V
Built-in depth 75.5 mm
Colour calotte White
Number of poles 3
Imprint/indication Other
Switching function Off switch
Degree of protection (IP) IP20
Short-circuit breaking capacity (Icw) -
Number of contacts as normally open contact 3

Documents

Declaration of Conformity (Sustainability)

A9S60332 REACh Regulation

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Product data sheet

Open

Catalog

Ready to install Distribution and Control products - Acti 9

Open
