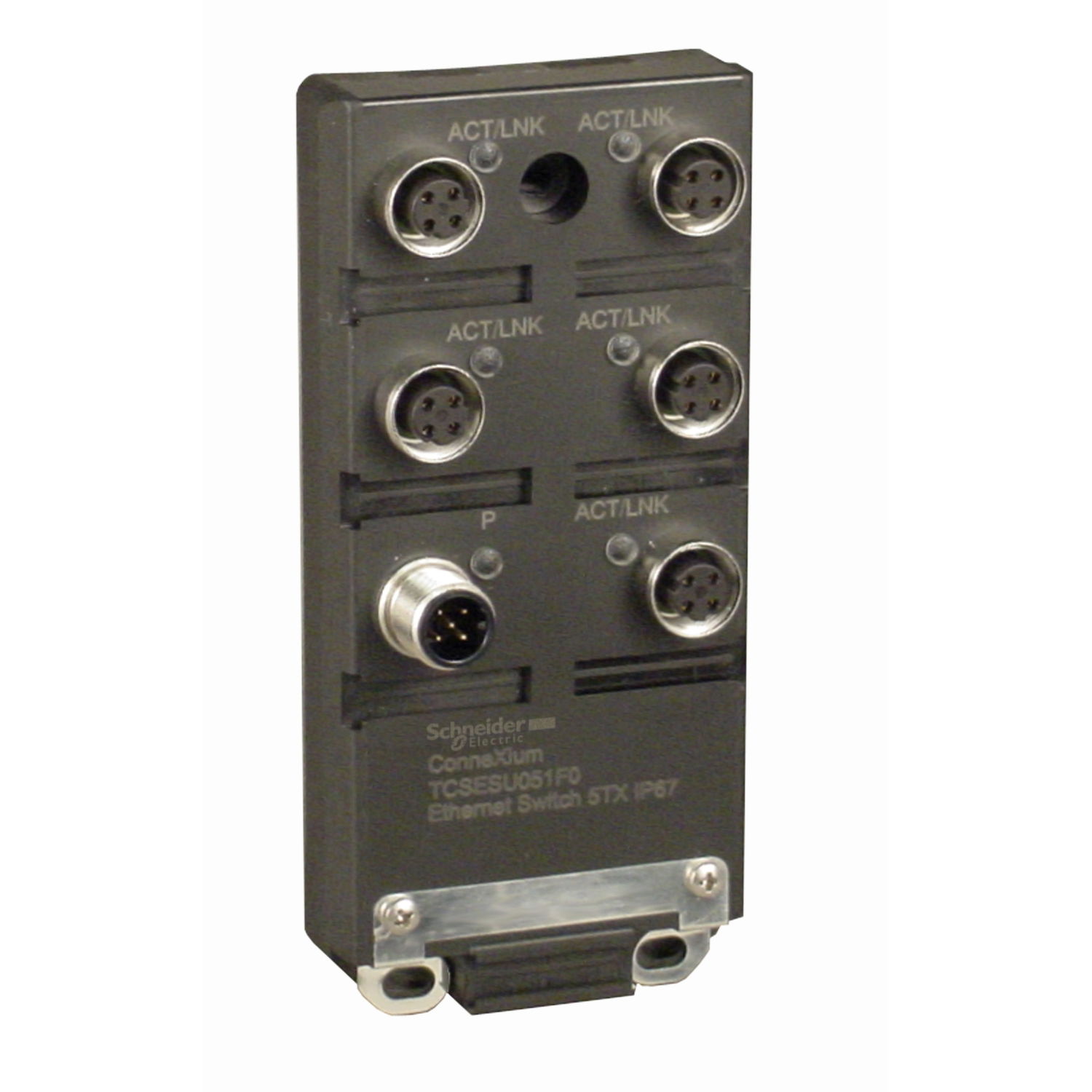

Ethernet ConneXium switch 5 x 10BASE-T/ 100BASE-TX ports - 24 V DC - IP67 - M12

Ethernet ConneXium switch 5 x 10BASE-T/ 100BASE-TX ports - 24 V DC - IP67 - M12

"This product is part of the Modicon Networking range, an offer of Modicon IP67 Unmanaged Switch." "This device comes with Ethernet TCP/IP protocol." "It comes with 5 copper cable transmission ports." "It provides simple connectivity for multiple Ethernet device ." "This product works at a power consumption of 3.2W and a rated voltage of 24V DC." "It is furnished with 5-way removable M12 connector (power supply) for electrical connection" "Its dimensions are 60mm (width) x 126mm (height) x 31mm (depth) and weighs 0.21 kg." "It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels." "It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards." "It is designed to be mounted on flat surface using screws." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."

Product identifiers

SKU: TCSESU051F0
EAN: 3595863865158
GTIN: 3595863865158
MPN: TCSESU051F0

Voltimum+ Loyalty Programme Loyalty points: 59

Price: £ 352.00 Excl. VAT

Specifications

Depth 31 mm
Width 60 mm
Height 126 mm
Layer 2 no
Layer 3 no
EFFR0001 no
EFFR0002 no
Ethernet yes
Max. PoE power -
Number of ports PoE 0
Number of module slots 0
Power over Ethernet (PoE) Other
Number of ports 100 Mbps ST 0
Number of ports 100 Mbps POF 0
Number of ports 1000 Mbps GBIC 0
Number of ports 10/100 Mbps M12 0
Number of max. stackable switches 0
Number of ports 1000 Mbps SC (LX) 0
Number of ports 40 Gbps Mini GBIC 0
Number of ports 1000 Mbps Mini GBIC 0
Number of ports 100/1000 Mbps Mini GBIC 0
