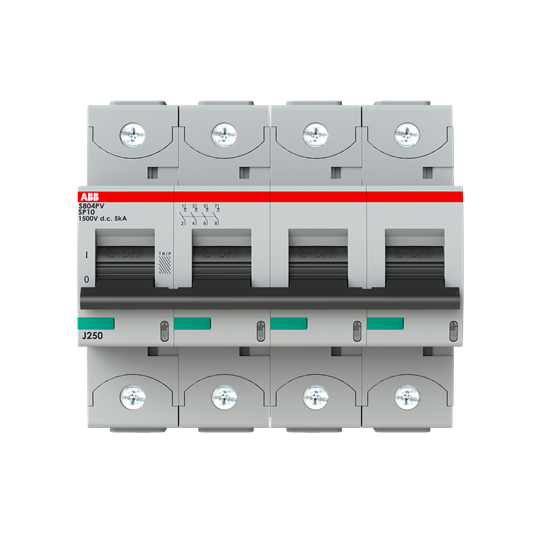

S804PV-SP5 High Performance MCB – Image 2 of 3

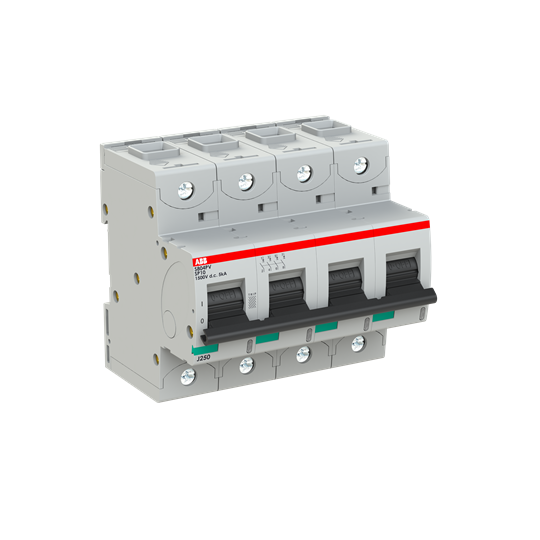

S804PV-SP5 High Performance MCB – Image 3 of 3

1 / 3

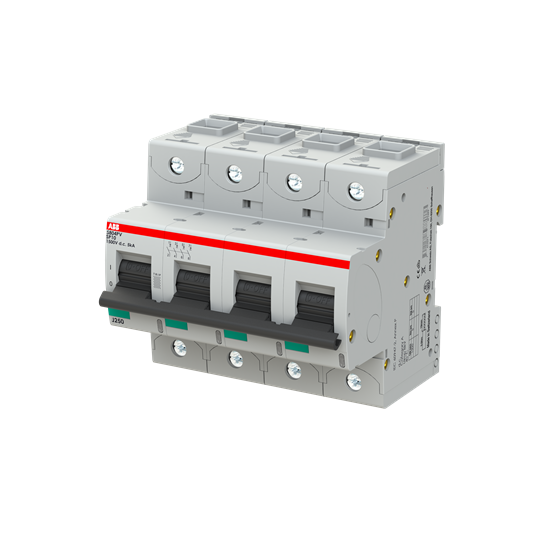

S804PV-SP5 High Performance MCB

Name: S804PV-SP5 High Performance MCB
Brand: ABB
SKU: 2CCF019586R0001
Availability: InStock

S804PV-SP5 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £413.24 excl. VAT. Voltimum+ members earn 202 points per unit.

The S804PV-SP5 is a 4-pole High Performance Circuit breaker for photovoltaics (DC), with cage terminal and a rated current of 5 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1500V. It can be used for voltages up to 1500V DC.

Product identifiers

SKU: 2CCF019586R0001

EAN: 7612271452124

GTIN: 7612271452124

MPN: S804PV-SP5

Loyalty points: 202

Price: £ 413.24 Excl. VAT

Specifications

Frequency
Power loss	6
Voltage type	DC
Rated current	5
Rated voltage	-
Built-in depth	82.5
Explosion-proof	no
Pollution degree	2
Over voltage category	3
Current limiting class	3
Release characteristic	Other
Number of poles (total)	4
Degree of protection (IP)	IP20
Number of protected poles	4
Flush-mounted installation	no
Rated insulation voltage Ui	1500
Additional equipment possible	yes
Width in number of modular spacings	6
Ambient temperature during operating
Rated impulse withstand voltage Uimp	8
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
