Programmable receiver - 4 PNP - 200 mA - 24 V DC - 2 pusbuttons - 6 LEDs

Link copied
SKU
EAN
GTIN
MPN

Programmable receiver - 4 PNP - 200 mA - 24 V DC - 2 pusbuttons - 6 LEDs by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £236.96 to £239.33 excl. VAT. Voltimum+ members earn 32 points per unit.

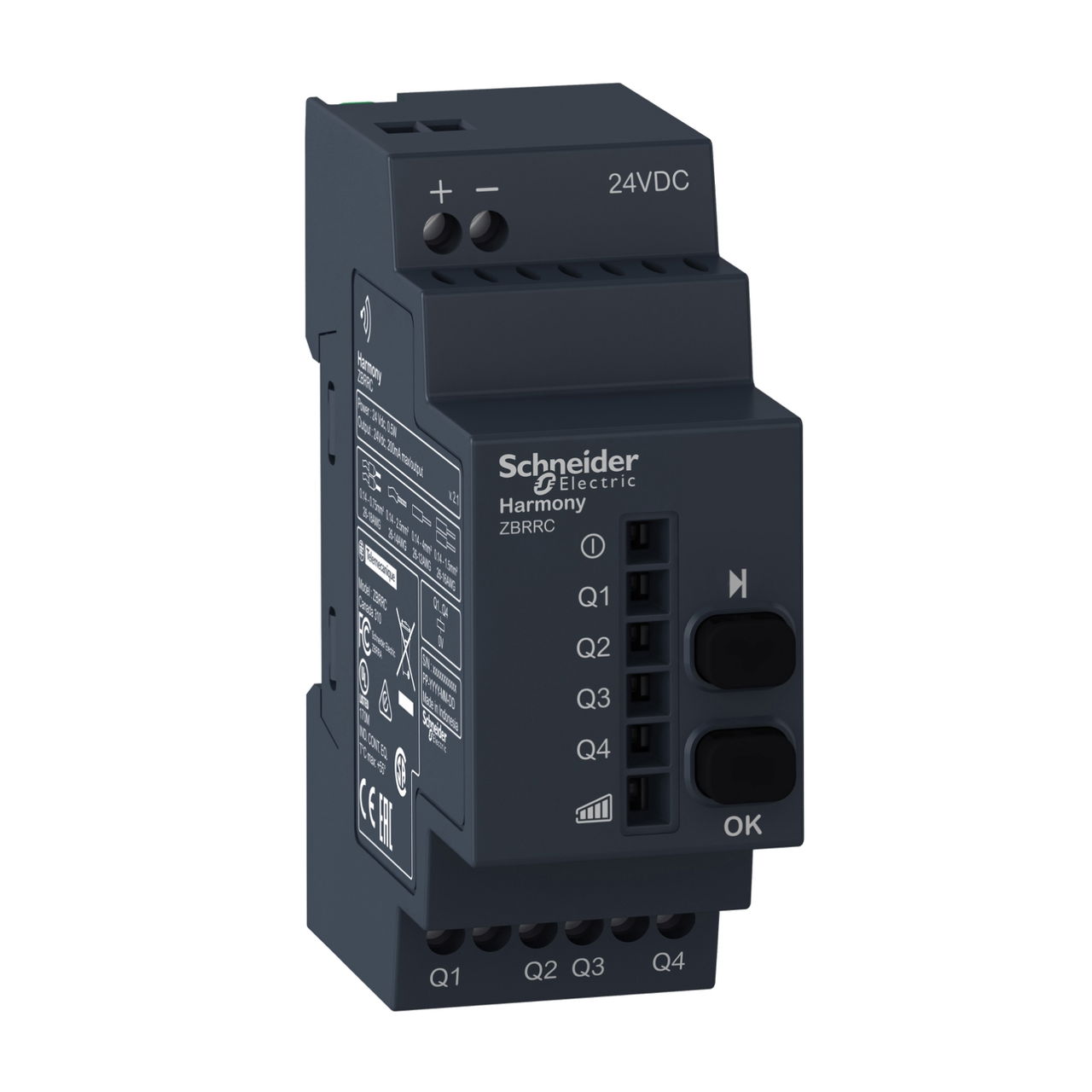

This configurable receiver is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It is equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It features 4 PNP outputs, 200 mA /24 V and it can be supplied with 24V DC. It is easily combined with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. Its protection index is IP20. It weighs 130g and its dimensions are, 36mm wide, 108mm high, 75mm deep.

Voltimum+ Loyalty Programme Loyalty points: 32

Price range: £ 236.96 - £ 239.33 Excl. VAT

Specifications

Accessory yes
Spare part no
Type of electrical accessory/spare part Other
Type of mechanical accessory/spare part -

Documents

Declaration of Conformity (Sustainability)

ZBRRC REACh Regulation

Open

User guide

Harmony XB5R Harmony Wireless Push Buttons Expert, Instruction Sheet

Open

Instruction sheet

ZBRRx - Programmable receiver, Instruction Sheet

Open

Product data sheet

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open

Technical illustration

Open
