CSU-2LV Current Sensing Unit

Link copied
SKU
EAN
GTIN
MPN

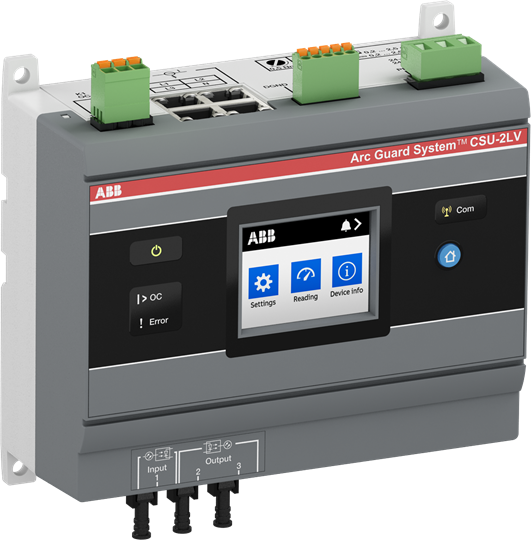

Current sensing unit CSU-2LV is an accessory to the Arc Guard System TVOC-2 when dual conditioning of light and current is needed to prevent nuisance tripping of the Arc Guard System. Designed to be used in low voltage applications. Connect 1-4 current sensors RC120... and RC200... to the CSU-2LV to measure L1-L3 and Neutral. Measures wide range of nominal current 0,25... 4 kA and over current 0,25... 12 kA. The unit sends a continuous light to the TVOC-2 while no over current or error occurs. Settings for over current level, warning current level, measured phases etc. are done in the touch screen or through Modbus RTU communication protocol. K1 signal relay is a change-over contact that can be used to signal over current to other system. Combine the CSU-2LV with accessories TVOC-2-OP... to daisy chain several current sensing units and to connect ot TVOC-2 main unit. Rated supply voltage 24... 240 V AC, 24... 250 V DC.

Voltimum+ Loyalty Programme Loyalty points: 172

Price: £ 1,722.82 Excl. VAT

Specifications

Depth 63.8
Width 155.5
Height 141.1
Time range
Nominal current -
Material contact -
Function star-delta no
Complete with socket -
Max. starting current -
Degree of protection (IP) -
With semiconductor output -
Operating voltage AC 50 Hz
Suitable as remote control no
Material of contact surface -
Type of electric connection Screw connection
Rated control supply voltage DC
Function delay on de-energization no
Outputs, reversible delayed/undelayed -
Rated control supply voltage AC 60 Hz
Function floating contact on de-energization no
Clock function, starting with pulse, variable -
Number of outputs, delayed, change-over contact -
Number of outputs, undelayed, change-over contact -
Function flashing, starting with pulse, fixed time -
Number of outputs, delayed, normally closed contact -
Number of outputs, undelayed, normally closed contact -

Documents

Deeplink product page

Open

Deeplink REACH

2AGS2022-006202 - REACh (Arc Guards).pdf

Open

Instructions for use

1SFC170020M0201_RevC_CSU-2_Installation_EN_V2.pdf

Open

Product data sheet

Open

Declaration DOC CE (Declaration of conformity CE)

1SFC170021D2701.pdf
