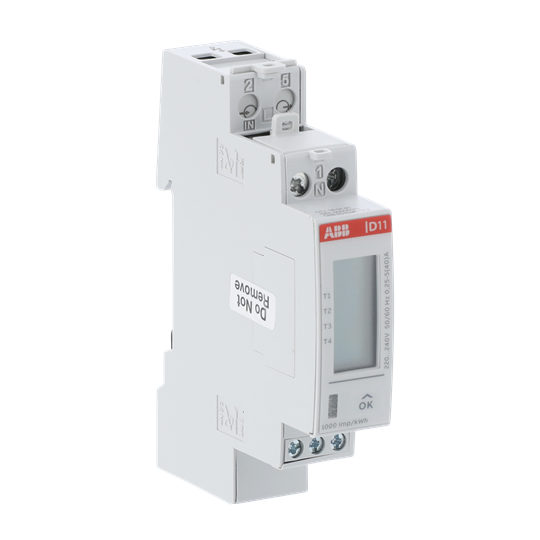

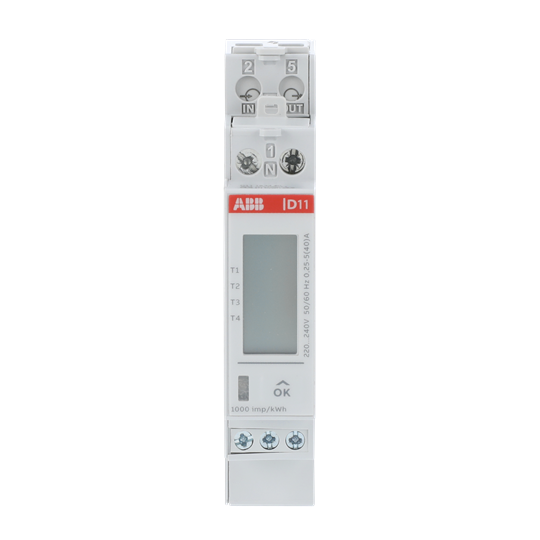

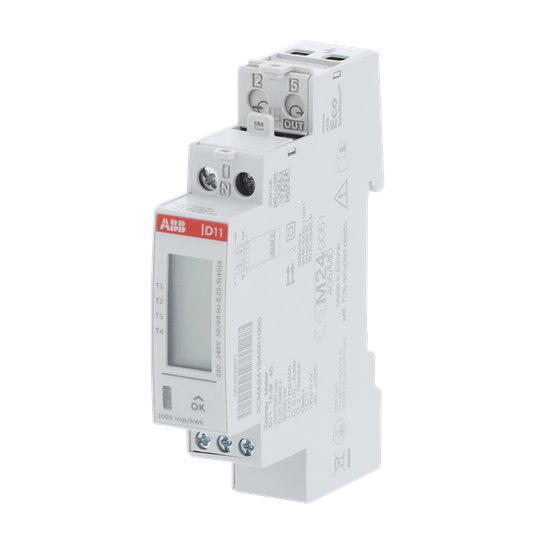

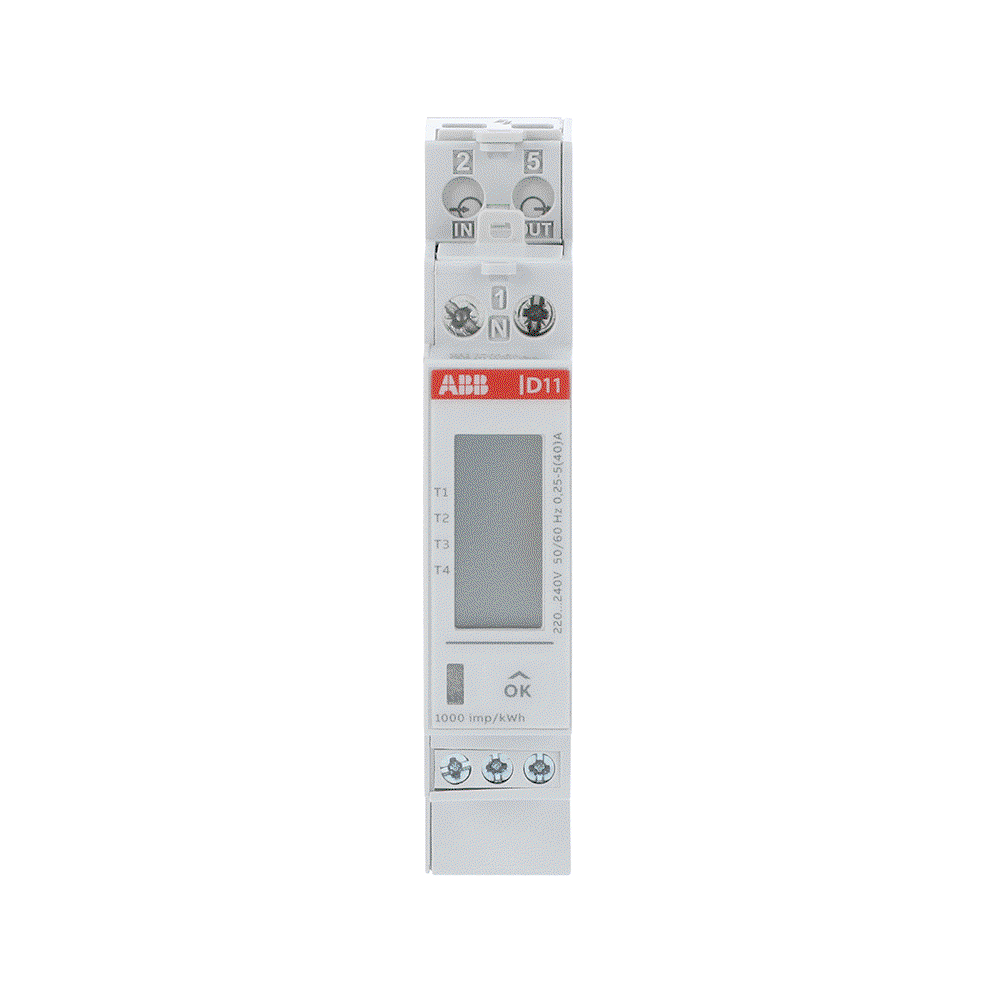

Energy meter '15', 1-phase, 40 A

Link copied
SKU
EAN
GTIN
MPN
D11 15-M 40 is a single phase energy meter, direct connection up to 40 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only one DIN module in width and housing in recycled plastic.

Voltimum+ Loyalty Programme Loyalty points: 7

Price: £ 71.00 Excl. VAT

Specifications

Depth 65
Model Direct measurement
Width 17.5
Height 92
Approval Measuring Instruments Directive
Frequency
Pole type Single phase
Calibrated -
Pulse type S0
Tariff type Two-tariff
Suitable for -
Accuracy class B
With lock code yes
Mounting method DRA (DIN-rail adapter)
Type of interface Other
Max. current (Imax) 40
Nominal current (In) 40
Nominal voltage (Un) N-L
Degree of protection (NEMA) -
Number of positions total (counter) 6

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_G_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Instructions for use

D11-D13 Installation_Manual.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108469A1600_A_DoC_D11.pdf

Open

Declaration EPD (Environmental Product Declaration)

9AKK108469A4516_en_B_D11-D13 Meters - Product Environmental Profile (PEP).pdf

Open
