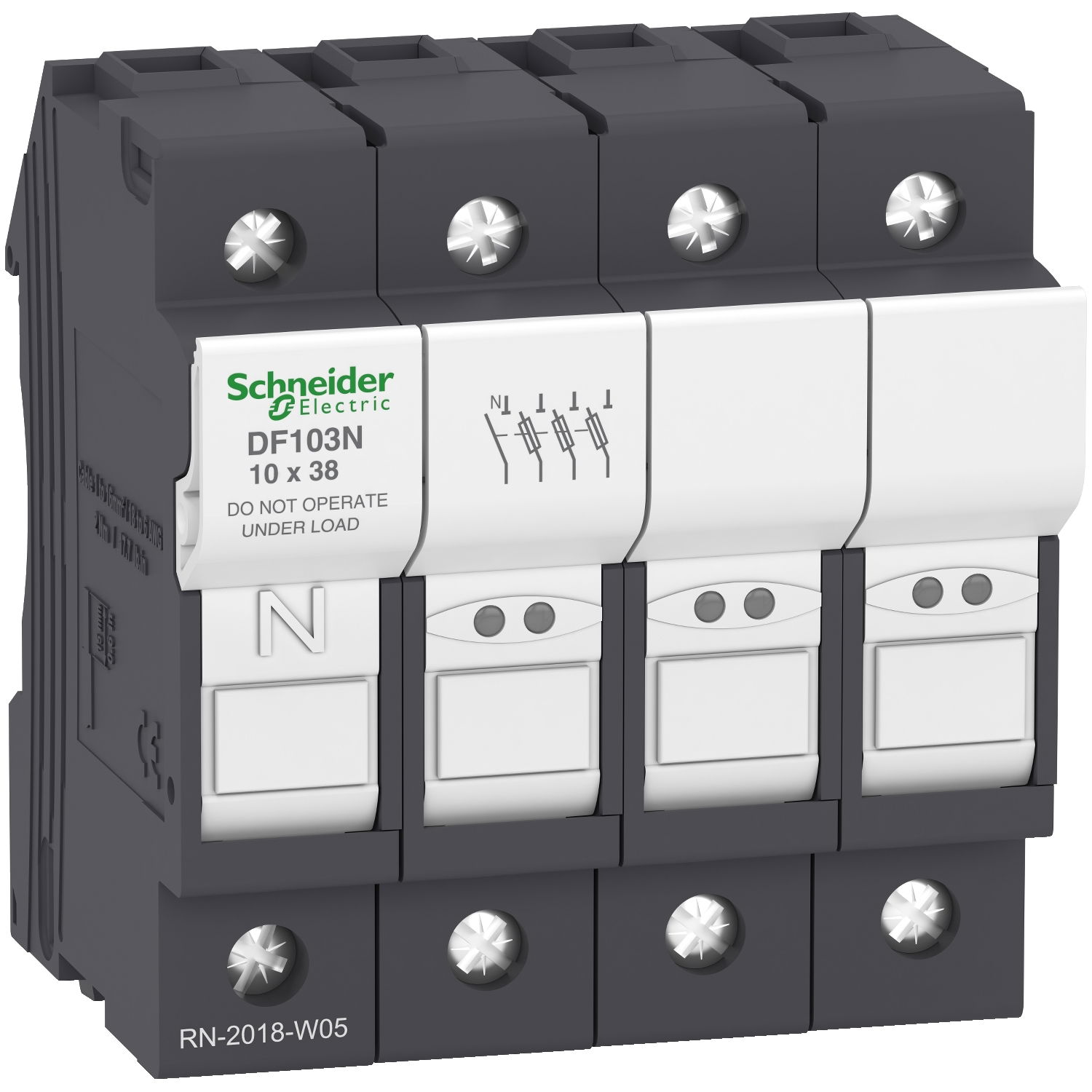

Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm

Link copied
SKU
EAN
GTIN
MPN

Fuse carrier TeSys DF, 3P+N 32A, fuse size 10x38 mm by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £17.97 to £31.26 excl. VAT. Voltimum+ members earn 4 points per unit.

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides a Neutral pole fitted with a locked tubular link. Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

Voltimum+ Loyalty Programme Loyalty points: 4

Price range: £ 17.97 - £ 31.26 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Circuit breakers and fuses

Specifications

Lockable yes
For fuse size 10x38 mm
Built-in depth 56.5 mm
Mounting method DIN rail
Nominal voltage 690 V
Number of poles 4
Degree of protection (IP) IP20
With optical defect indication no
Concurrently switching neutral conductor yes

Documents

Declaration of Conformity (Sustainability)

DF103N REACh Regulation

Open

Instruction sheet

TeSys DF8-DF10-DFCC - Fuse Carriers 25-32 A - Instruction Sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

DF103N EU RoHS Directive

Open

Declaration of conformity

EUdec-SC17102701D-TeSysDF

Open

Environmental Disclosure

Fuse carrier TeSys DF, 1P 32A, fuse size 10 x 38 mm

Open

CAD

Open
