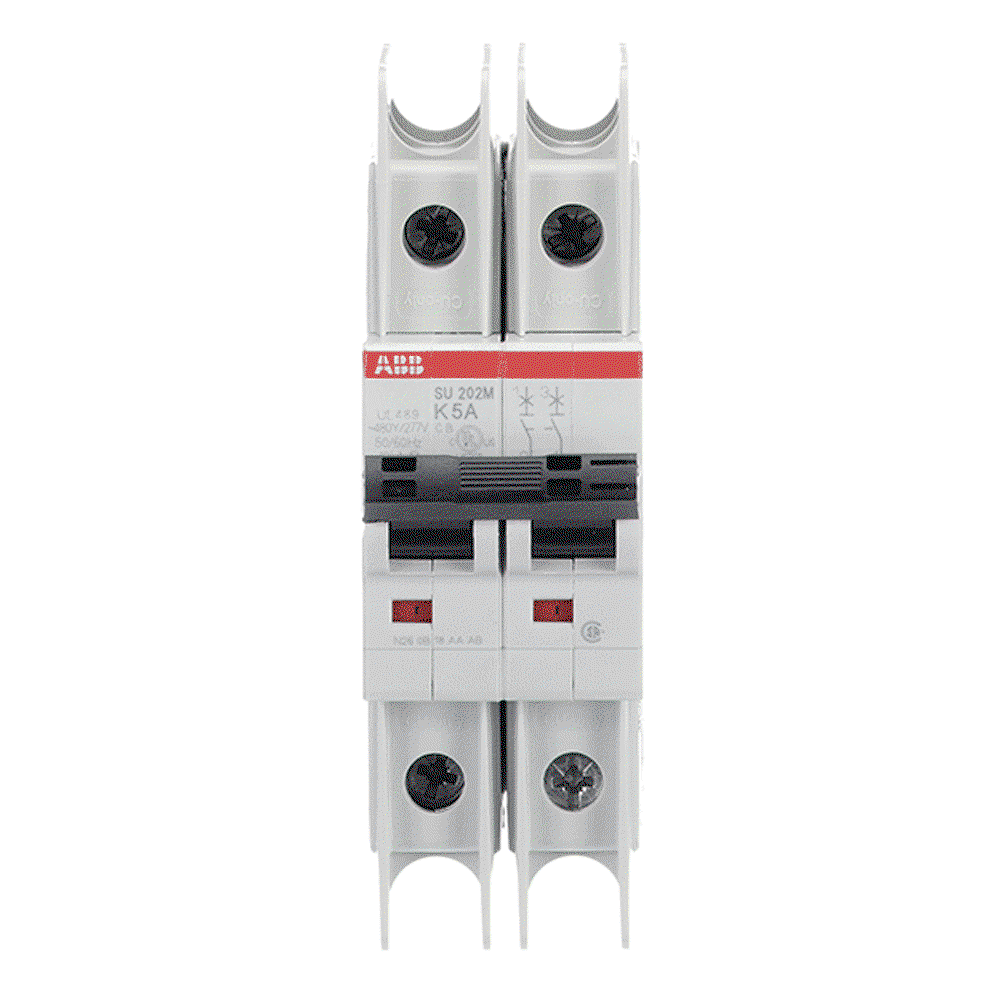

Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA

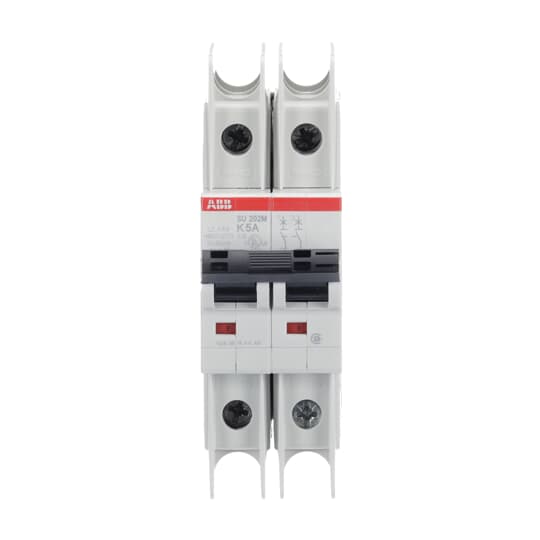

Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA – Image 2 of 4

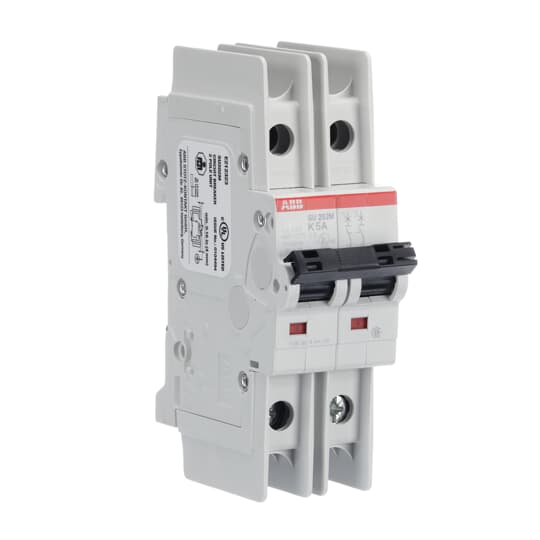

Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA – Image 3 of 4

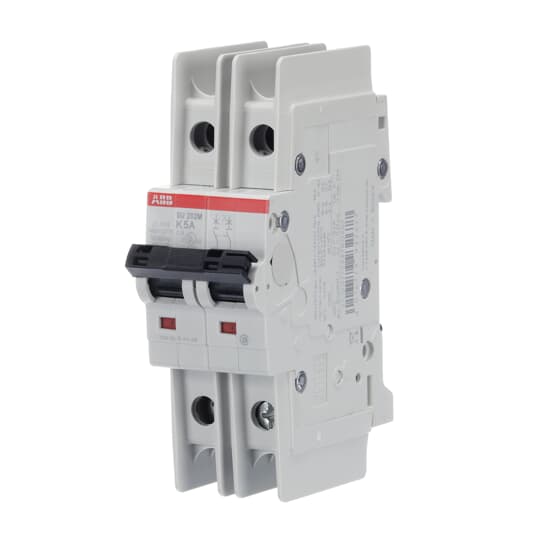

Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA – Image 4 of 4

1 / 4

Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA

Name: Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA
Brand: ABB
SKU: 2CDS272337R0357
Availability: InStock

Miniature Circuit Breaker - SU200M - 2P - 5 A - K - (400 V AC) 11.2 kA by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £116.30 excl. VAT. Voltimum+ members earn 65 points per unit.

SU202M-K5 Miniature Circuit Breaker K-Char., UL10kA, IEC15kA, 5A, 2P UL489

Product identifiers

SKU: 2CDS272337R0357

EAN: 4016779932677

GTIN: 4016779932677

MPN: SU202M-K5

Loyalty points: 65

Price: £ 116.30 Excl. VAT

Specifications

Frequency
Power loss	2.6
Voltage type	AC/DC
Rated current	5
Rated voltage	440
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	K
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	2
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
