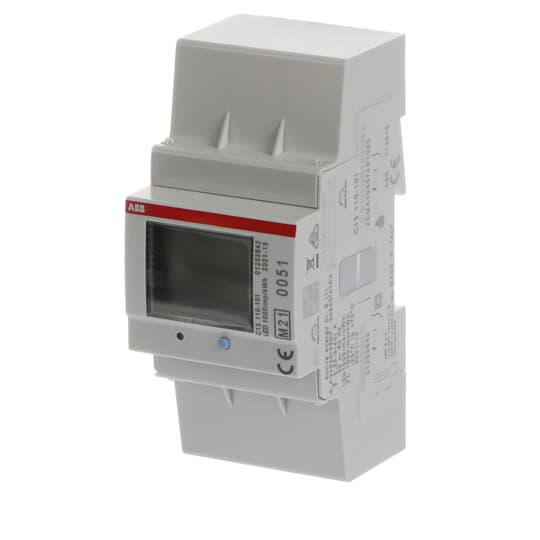

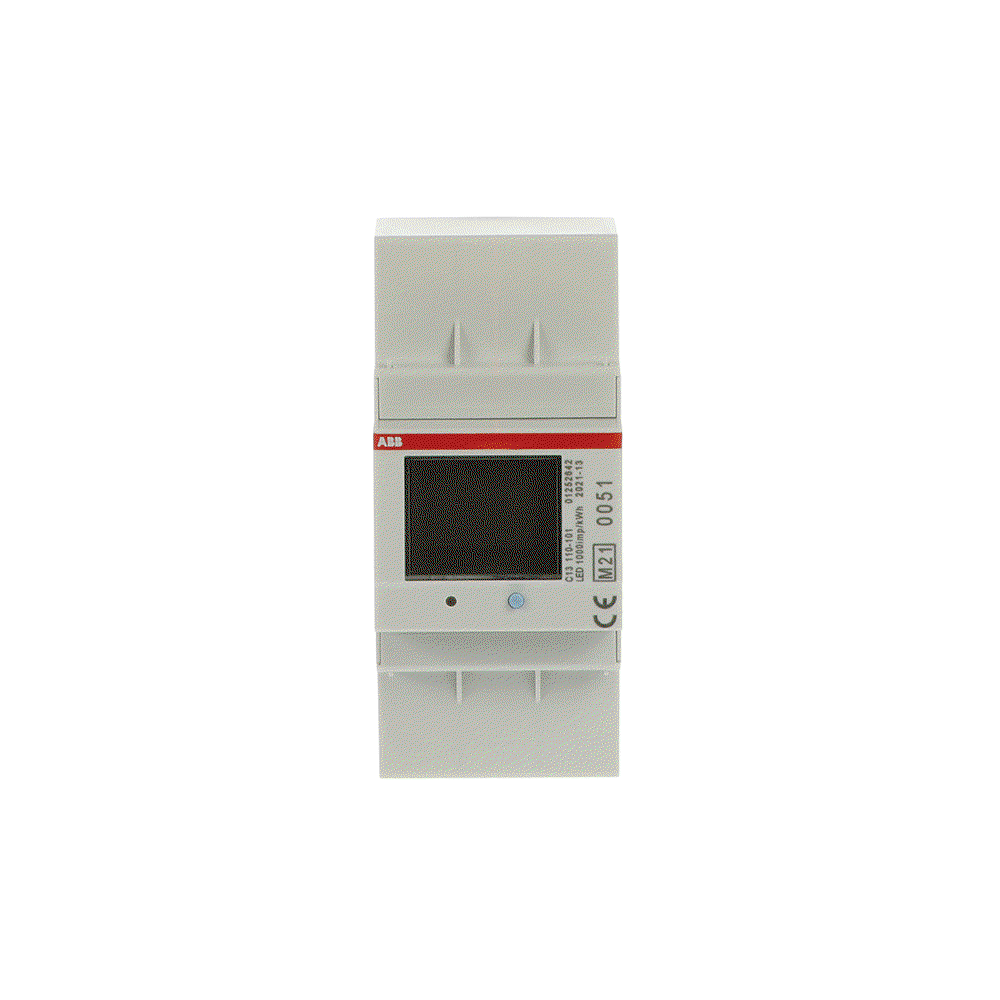

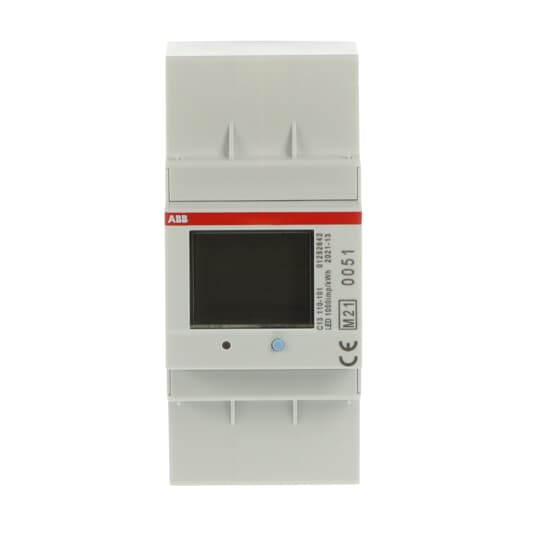

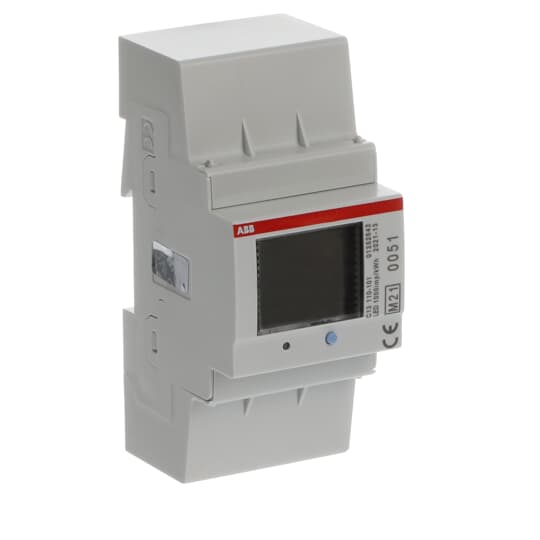

Energy meter 'Steel', None, 3-phase, 5 A

Energy meter 'Steel', None, 3-phase, 5 A

Basic compact meters for use in residential applications for single or multi family houses or in stand alone applications. To be used in a four wire system. The meter has instrumentation values. Three phase direct connected for active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified. 1000 imp/kWh.

Product identifiers

SKU: 2CMA103574R1000
EAN: 7392696035743
GTIN: 7392696035743
MPN: C13 110-101

Voltimum+ Loyalty Programme Loyalty points: 70

Price: £ 139.32 Excl. VAT

Specifications

Depth 65
Model -
Width 54
Height 26.5
Approval Measuring Instruments Directive
Frequency
Pole type Four conductor
Calibrated yes
Pulse type S0
Tariff type One-tariff
Suitable for -
Accuracy class B
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface None
Max. current (Imax) 40
Nominal current (In) 40
Nominal voltage (Un) N-L
Degree of protection (NEMA) -
Number of positions total (counter) 7
