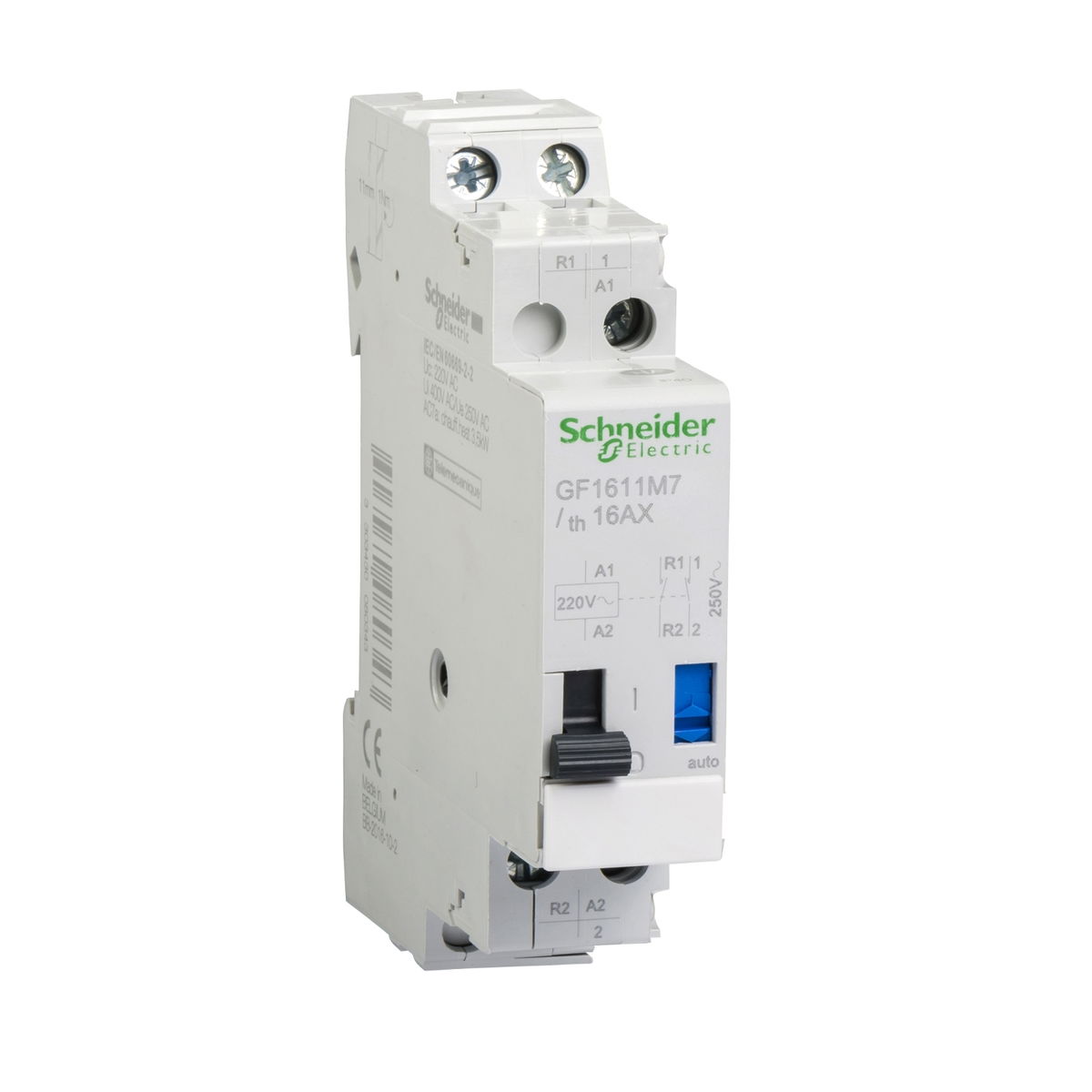

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil
Impulse relay designed for TeSys GF. Rated Current 16A, 2P. with contact composition 1 NO + 1 NC. Rated Operational Voltage 250VAC, 50/60 Hz AC-1. Impulse relay with control voltage of 220VAC, 50/60 Hz.
Product identifiers
SKU: GF1611M7
EAN: 3389110707786
GTIN: 3389110707786
MPN: GF1611M7
Loyalty points: 20
Price range: £ 49.67 - £ 51.83 Excl. VAT
Features
|
Function
|
Mechanical switch
|
|
Built-in depth
|
64 mm
|
|
Supply voltage
|
|
|
Mounting method
|
DIN rail
|
|
Control voltage 1
|
|
|
Control voltage 2
|
|
|
Rated switch current
|
16 A
|
|
Type of control voltage 1
|
AC
|
|
Type of control voltage 2
|
-
|
|
Max. load fluorescent lamp
|
1260 VA
|
|
Frequency control voltage 1
|
|
|
Frequency control voltage 2
|
|
|
Max. incandescent lamp load
|
1600 W
|
|
Suitable for manual operation
|
TRUE
|
|
Voltage type (supply voltage)
|
AC
|
|
Width in number of modular spacings
|
1
|
|
Max. switching current (cos phi = 0.6)
|
16 A
|
|
Max. load fluorescent lamp (Duo circuit)
|
2000 VA
|
|
Number of contacts as change-over contact
|
0
|
|
Number of contacts as normally open contact
|
1
|
|
Number of contacts as normally closed contact
|
1
|
|
Max. load fluorescent lamp (parallel compensated)
|
920 VA
|
