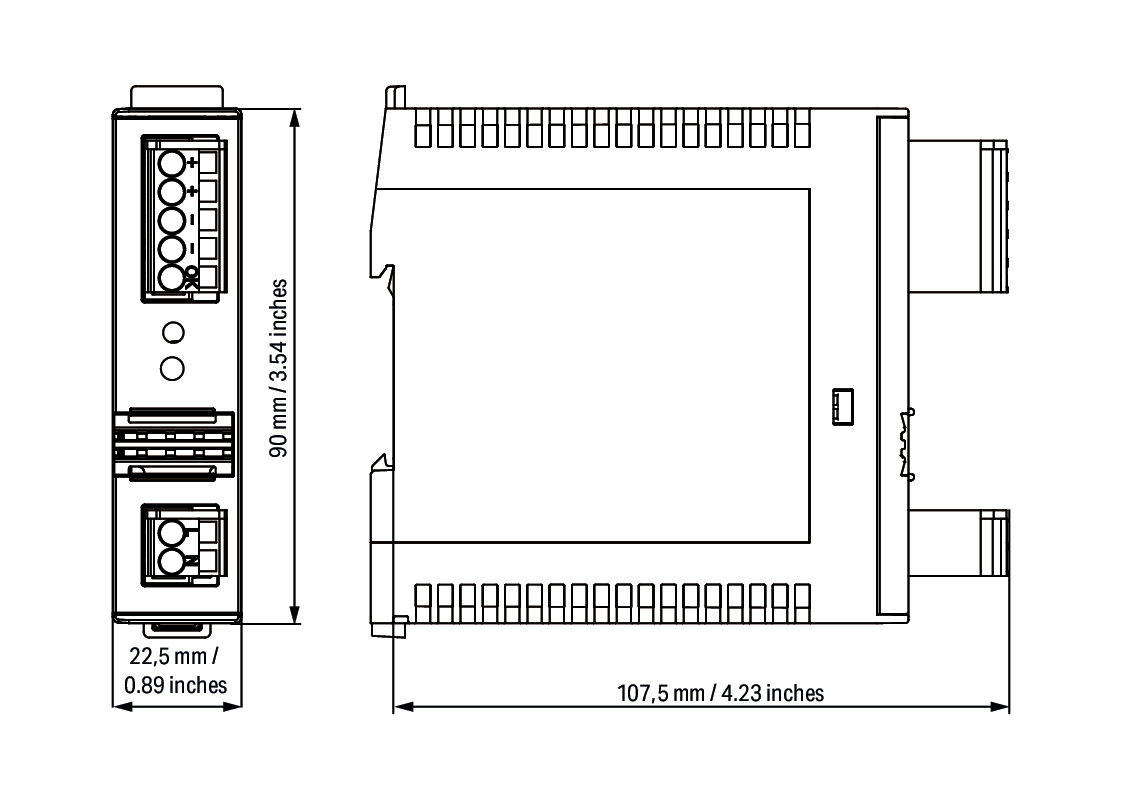

| Depth |
107.5 |
| Width |
22.5 |
| Height |
90 |
| Stabilized |
yes |
| Power output |
24 |
| Built-in width |
- |
| Built-in height |
- |
| Modular version |
yes |
| Power consumption |
- |
| Short-circuit-proof |
yes |
| Max. output current 1 |
1 |
| Max. output current 2 |
- |
| Max. output current 3 |
- |
| Rated supply voltage DC |
120 - 300 |
| Direct mounting possible |
no |
| Degree of protection (IP) |
IP20 |
| Output voltage stabilized |
yes |
| SIL according to IEC 61508 |
- |
| Suitable for rail mounting |
yes |
| Suitable for wall mounting |
no |
| Degree of protection (NEMA) |
- |
| Type of electric connection |
Spring clamp connection |
| 1st secondary output voltage |
23 - 28.5 |
| 2nd secondary output voltage |
|
| 3rd secondary output voltage |
|
| Secondary voltage adjustable |
yes |
| Rated supply voltage AC 50 Hz |
85 - 264 |
| Rated supply voltage AC 60 Hz |
85 - 264 |
| Suitable for safety functions |
no |
| Voltage type (supply voltage) |
AC/DC |
| Nominal value output current 1 |
1 |
| Nominal value output current 2 |
- |
| Nominal value output current 3 |
- |
| Nominal value output voltage 1 |
24 |
| Nominal value output voltage 2 |
- |
| Nominal value output voltage 3 |
- |
| Width in number of modular spacings |
1 |
| Performance level according to EN ISO 13849-1 |
- |
