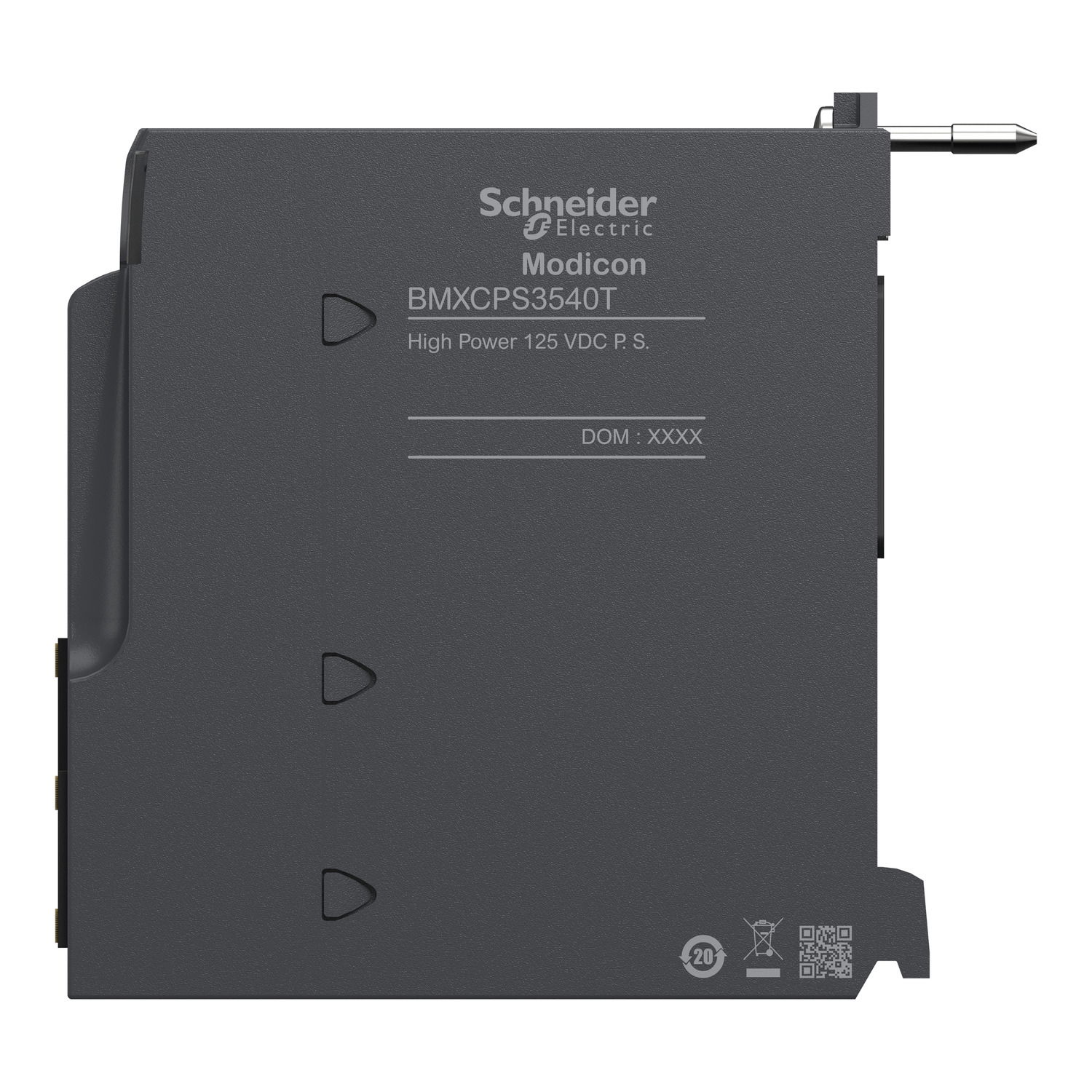

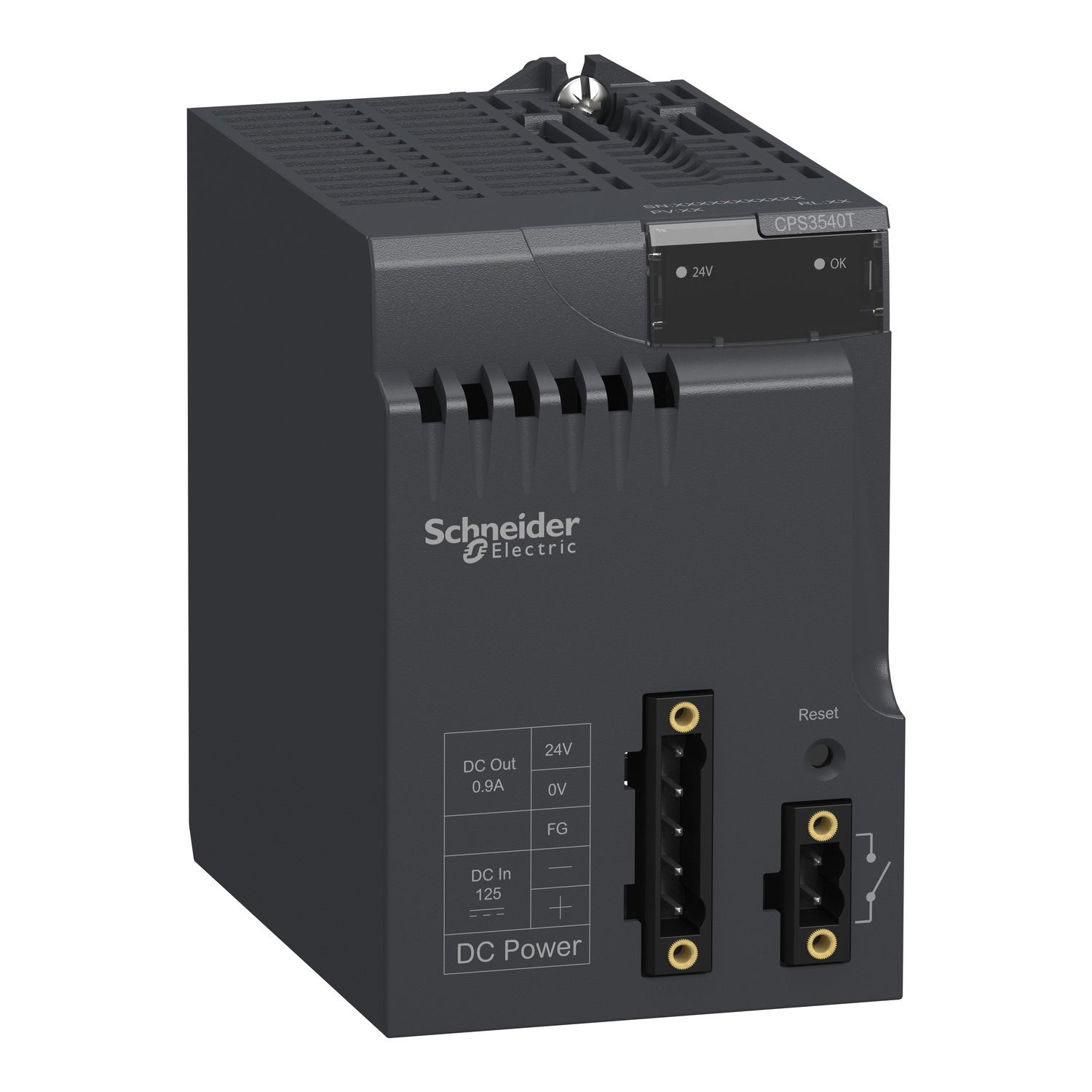

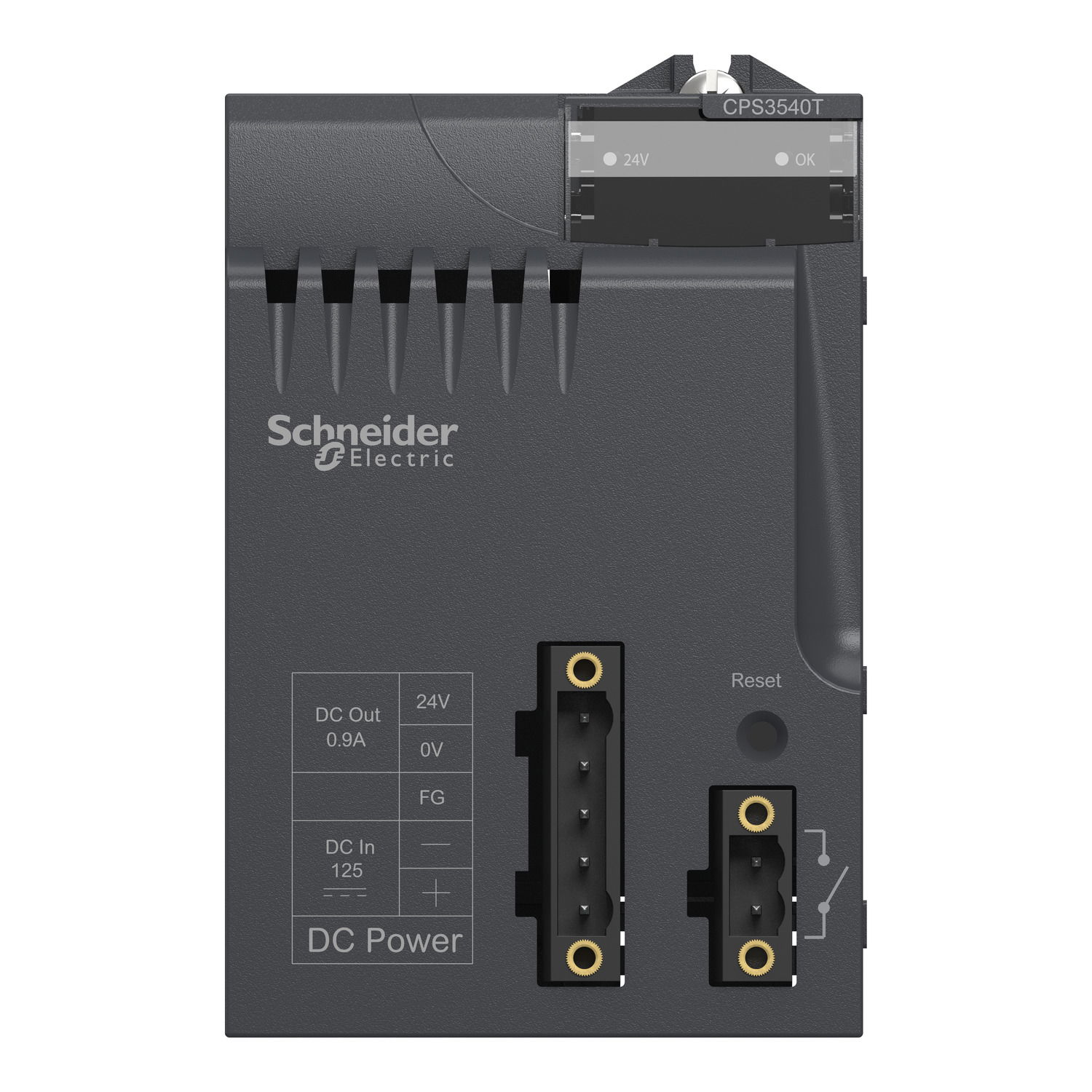

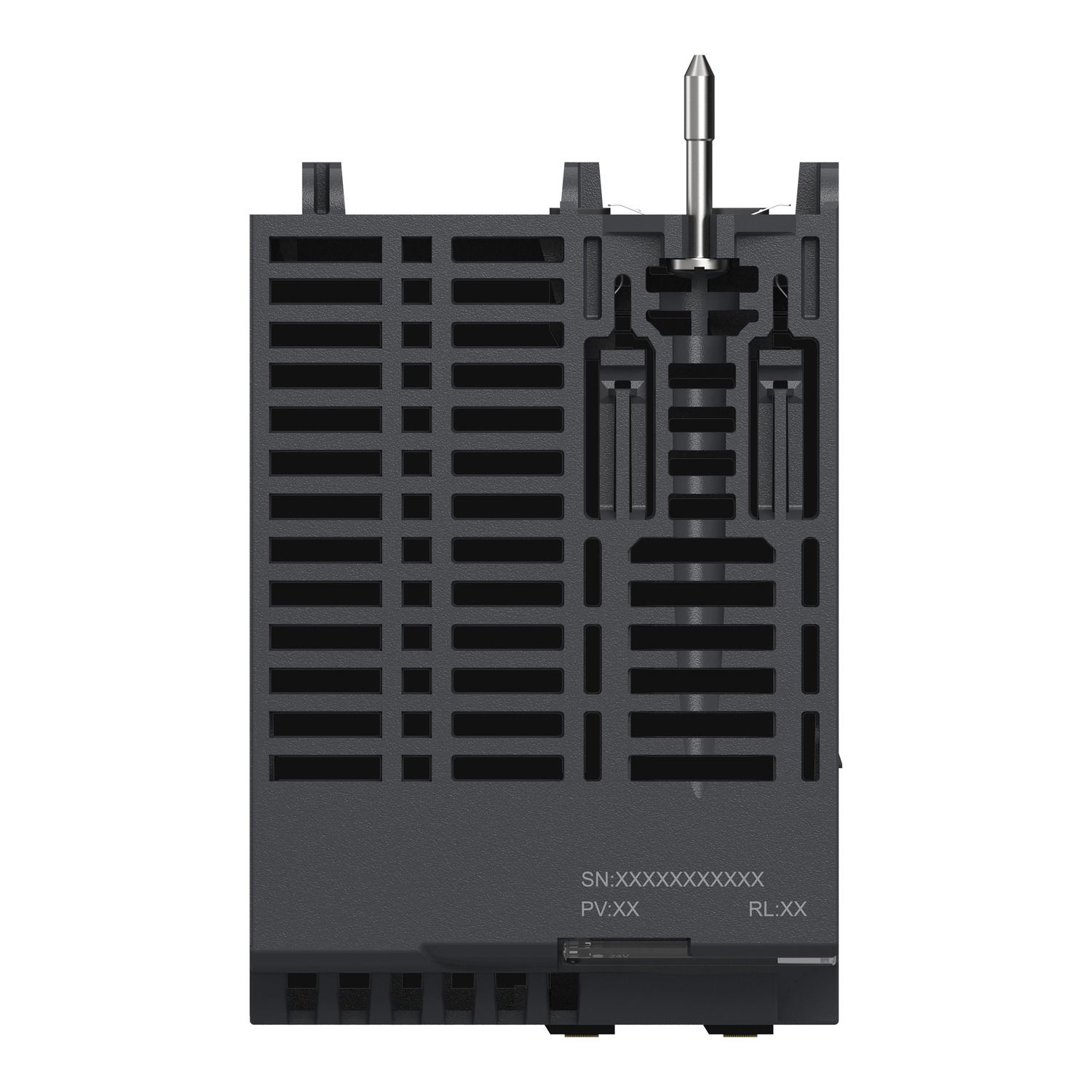

Power supply module X80 - 125 V DC - for extended temperature

Link copied
SKU
EAN
GTIN
MPN

Power supply module X80 - 125 V DC - for extended temperature by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £883.42 excl. VAT. Voltimum+ members earn 92 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Voltimum+ Loyalty Programme Loyalty points: 92

Price: £ 883.42 Excl. VAT

Specifications

Depth 99 mm
Width 68 mm
Height 104 mm
Redundancy no
Power output 31.2 W
Input voltage DC
Output voltage DC
Max. input current DC -
Input voltage AC 60 Hz
Type of output voltage AC/DC
Output voltage AC 60 Hz
Max. input current AC 60 Hz 0.35 A
Max. output current AC 60 Hz -
Type of voltage (input voltage) AC/DC

Documents

Declaration of Conformity (Sustainability)

BMXCPS3540T REACh Regulation

Open

User guide

Modicon X80 - Racks and Power Supplies, Hardware Reference Manual

Open

Instruction sheet

X80 / M580 / M340, Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalog of Modicon X80 Modules

Open

Declaration of Conformity (Sustainability)

BMXCPS3540T EU RoHS Directive

Open

Declaration of conformity

Modicon M580 M340 X80, Declaration of Conformity, EU CE, Schneider Electric

Open

Environmental Disclosure

Power supply module

Open
