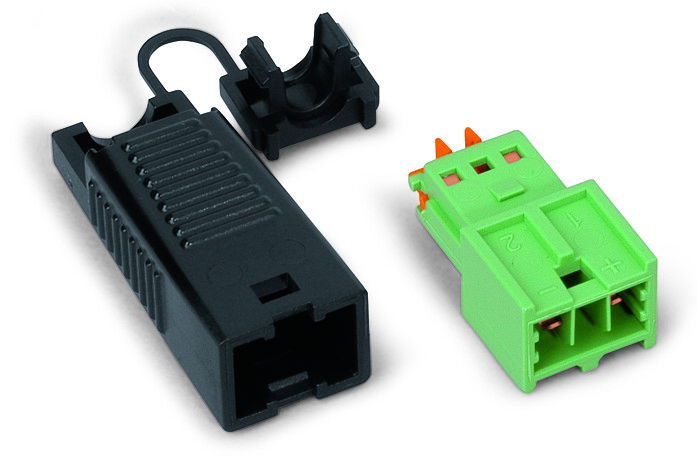

Plug with strain relief housing 2-pole green

Name: Plug with strain relief housing 2-pole green
Brand: Wago
SKU: 893-1012
Availability: InStock

Plug; with strain relief housing; 2-pole; Cod. E; green

Product identifiers

SKU: 893-1012

EAN: 4045454267445

GTIN: 4045454267445

MPN: 893-1012

Price: £ 5.66 Excl. VAT

Specifications

Model	Plug

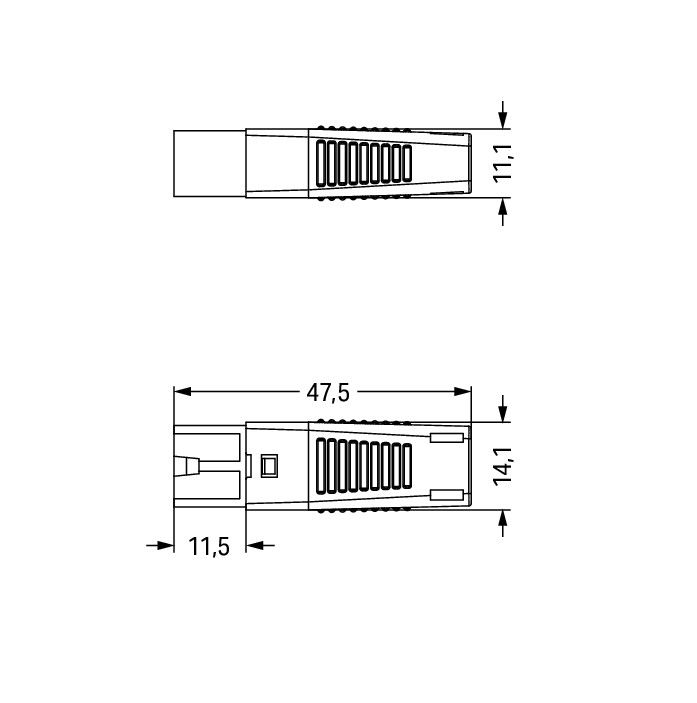

Width	14.1
Height	11.1
Length	47.5
Fire load	0.0475
Halogen free	yes
Rated current	3
Rated voltage	50
Cable diameter	5 - 7
Connection type	Spring clamp connection
Number of poles	2
Type of locking	None
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	1+, 2-
With strain relief	yes
Rated surge voltage	0.8
Continuity resistance	3
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Green
Number of connections per pole	1
RAL-number coding/contact insert	6001
Connection cross section (solid-core)
Connection cross section (fine-strand)
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
