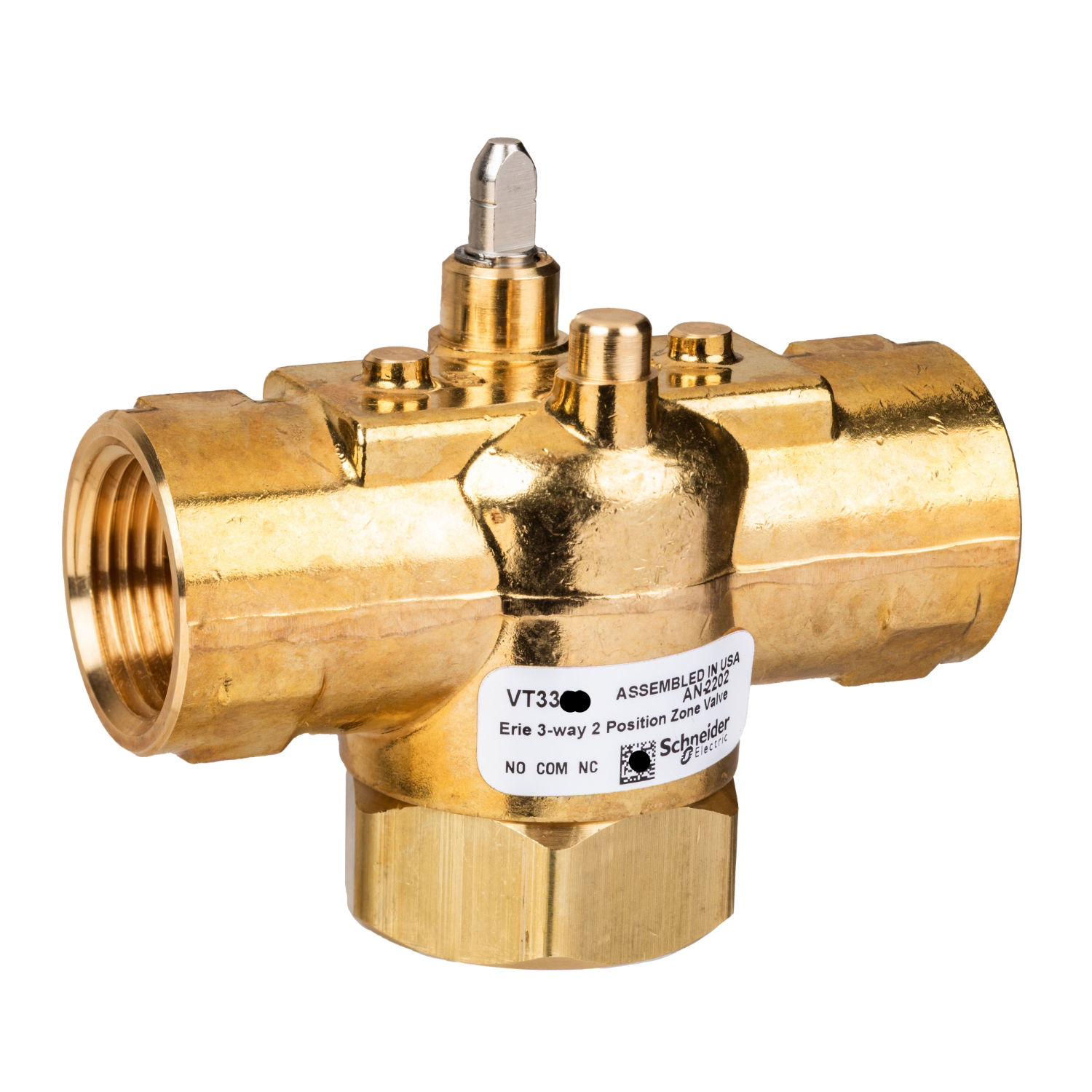

VLV BODY 2POS 3W 20MM RP
"The industry leading Erie Zone valve is suitable for on/off control of hot and chilled water in terminal unit applications." "High flow capacity paddle design and the unique ‘pop-top’ actuator connection allows for a quick and simple installation." "Valve size: DN20, Rp 3/4 thread, Flow capacity, Kvs: 4.3 m³/h." "Pressure class PN20." "The valve provide a working temperature range of 0 °C to 93 °C."
Product identifiers
SKU: VT3335
EAN: 711426635935
GTIN: 711426635935
MPN: VT3335
Loyalty points:
73
Price: £ 61.63 Excl. VAT
Categories
Features
|
Kvs value
|
4.3
|
|
Axle height
|
-
|
|
Connections
|
Internal thread
|
|
Stroke length
|
-
|
|
Housing material
|
Brass
|
|
Material quality
|
Other
|
|
Nominal diameter
|
DN 20
|
|
Surface protection
|
Untreated
|
|
Control ratio (Svo)
|
-
|
|
Characteristic curve
|
-
|
|
KVS value for bypass
|
-
|
|
Length of connection 1
|
-
|
|
Length of connection 2
|
-
|
|
Length of connection 3
|
-
|
|
Flange compression class
|
PN 16
|
|
Article compression class
|
PN 20
|
|
Leakage loss of Kvs value
|
0.01 %
|
|
With coupling connection 1
|
FALSE
|
|
With coupling connection 2
|
FALSE
|
|
With coupling connection 3
|
FALSE
|
|
Working length connection 1
|
-
|
|
Working length connection 2
|
-
|
|
Working length connection 3
|
-
|
|
Characteristic curve for bypass
|
-
|
|
Medium temperature (continuous)
|
|
|
Installation method, distributive
|
TRUE
|
|
With T-piece for 4-way connection
|
FALSE
|
|
Outer pipe diameter all connections
|
20 mm
|
|
Leakage loss of KVS value for bypass
|
-
|
|
Max. pressure difference in opened position
|
-
|
