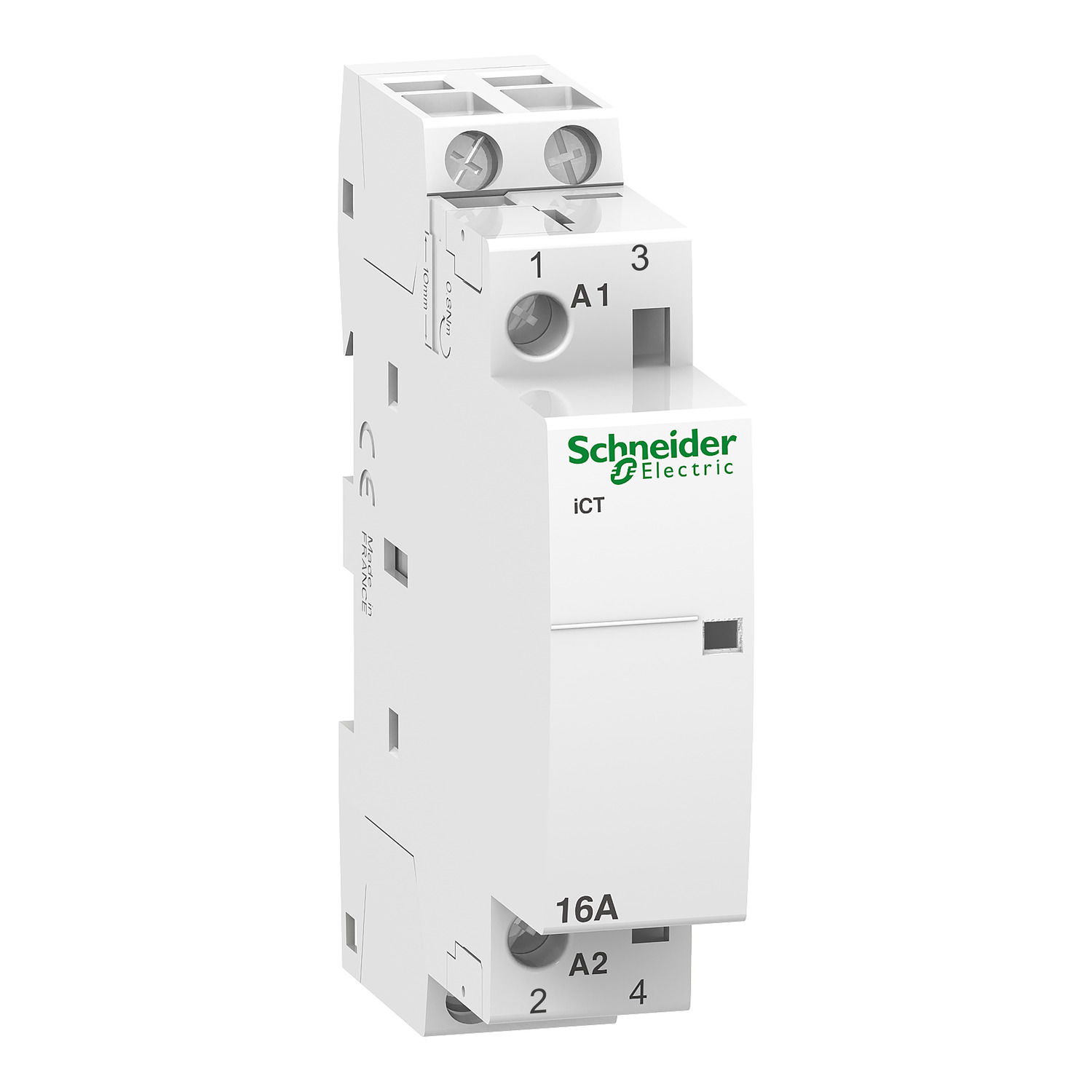

ICT 16A 2NO 230...240V 50Hz contactor

Link copied

SKU
EAN
GTIN
MPN

ICT 16A 2NO 230...240V 50Hz contactor by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £69.10 excl. VAT. Voltimum+ members earn 8 points per unit.

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The In rated current is 16A for AC-7a and 6A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 68.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Loyalty points: 8

Price: £ 69.10 Excl. VAT

Specifications

Hum-free	no
Built-in depth	43.5 mm
Slider for hand switch	no
Rated operating voltage
Rated operation current	16 A
With day/night function	no
Rated excitation voltage
Degree of protection (IP)	IP20
Max. load fluorescent lamp	850 VA
Max. incandescent lamp load	2000 W
Additional equipment possible	yes
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Width in number of modular spacings	1
Max. load fluorescent lamp (Duo circuit)	1500 VA
Number of contacts as normally open contact	2
Number of contacts as normally closed contact	0
Max. load fluorescent lamp (parallel compensated)	800 VA
Utilization category according to EN IEC 60947-4-1	-
