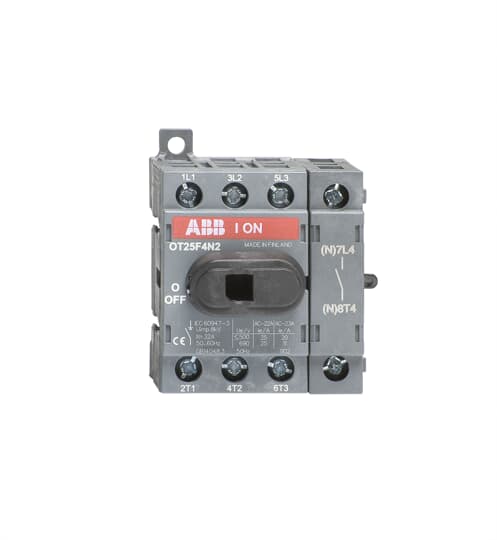

OT25F4N2 SWITCH-DISCONNECTOR

Name: OT25F4N2 SWITCH-DISCONNECTOR
Brand: ABB
SKU: OT25F4N2
Availability: InStock

OT25F4N2 SWITCH-DISCONNECTOR by ABB is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £23.86 to £34.09 excl. VAT. Voltimum+ members earn 15 points per unit.

4-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

Product identifiers

SKU: OT25F4N2

EAN: 6417019390185

GTIN: 6417019390185

MPN: OT25F4N2

Loyalty points: 15

Price range: £ 23.86 - £ 34.09 Excl. VAT

Specifications

Depth	56
Width	48
Height	68
Interlockable	no
Number of poles	4
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	-
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Other
Switching power at 400 V	9
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	32
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	-
Version as reversing switch	no
Max. rated operation voltage Ue AC	750
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	-
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	9
Rated short-time withstand current lcw	0.5
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	25
Rated permanent current at AC-23, 400 V	20
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
