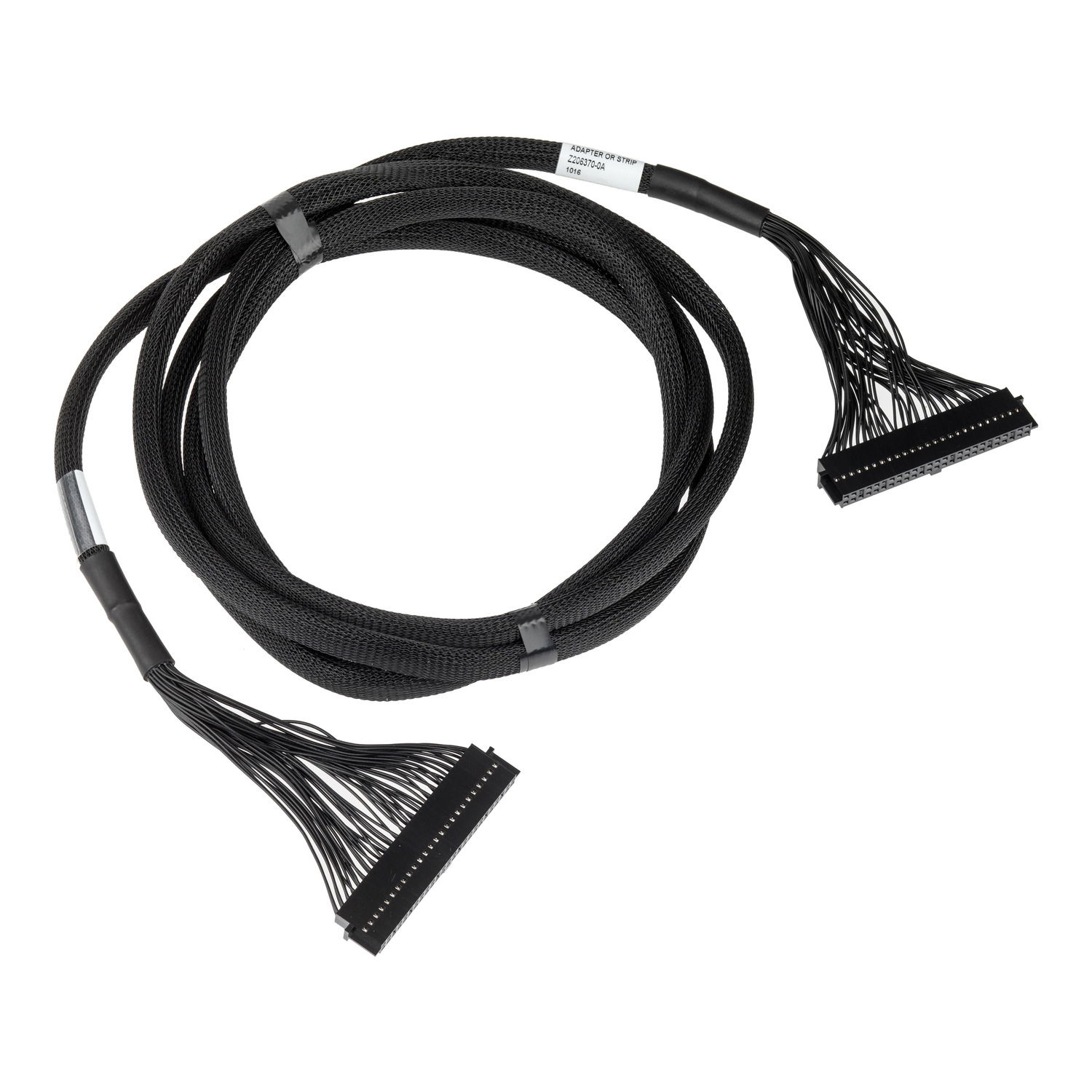

Round ribbon cable, 50 x 26 AWG, 10 ft (3m).

Link copied
SKU
EAN
GTIN
MPN
This cable is used for the additional current transformer strips of the PowerLogic BCPM series, or as spare. It is a round ribbon cable composed of 50 x 28 AWG wires. 3 meters in length.

Voltimum+ Loyalty Programme Loyalty points: 7

Price: £ 43.00 Excl. VAT

Specifications

Weight -
AWG size 26
Cable geometry -
Number of cores 50
Conductor surface Bare
Nominal voltage U 300 V
Stranding element No
Torsion resistant -
Conductor material Copper
Shape of conductor Round
Cable width approx. 12 mm
Core identification Colour
Material outer sheath Polyvinyl chloride (PVC)
Outer diameter approx. 12 mm
With protective conductor no
Specification core insulation -
Nominal cross section conductor 0.321 mm²
Nominal cross section conductor (AWG) -
Oil resistant according to EN IEC 60811-404 no
Reaction-to-fire according to EN 13501-6: Acidity -
Low temperature resistant according to EN 60811-504+505+506 -
Min. permitted bending radius, moving application/free movement -
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles -
Min. permitted bending radius, stationary application/permanent installation -

Documents

Catalog

PowerLogic Power Monitoring and Control Catalog - Web

Open

Declaration of Conformity (Sustainability)

CBL023 EU RoHS Directive

Open

Declaration of conformity

UK Declaration of conformity

Open
