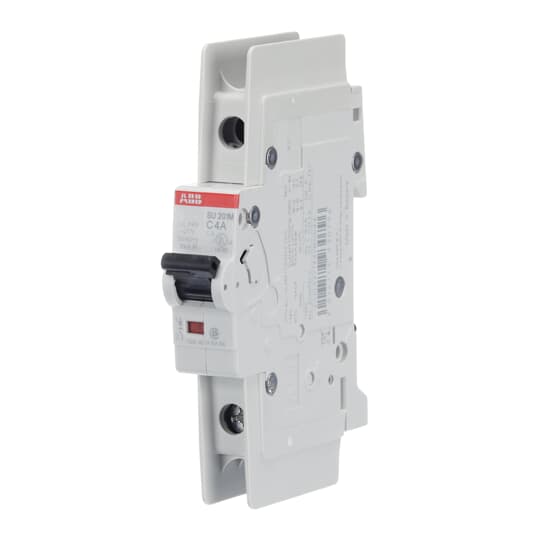

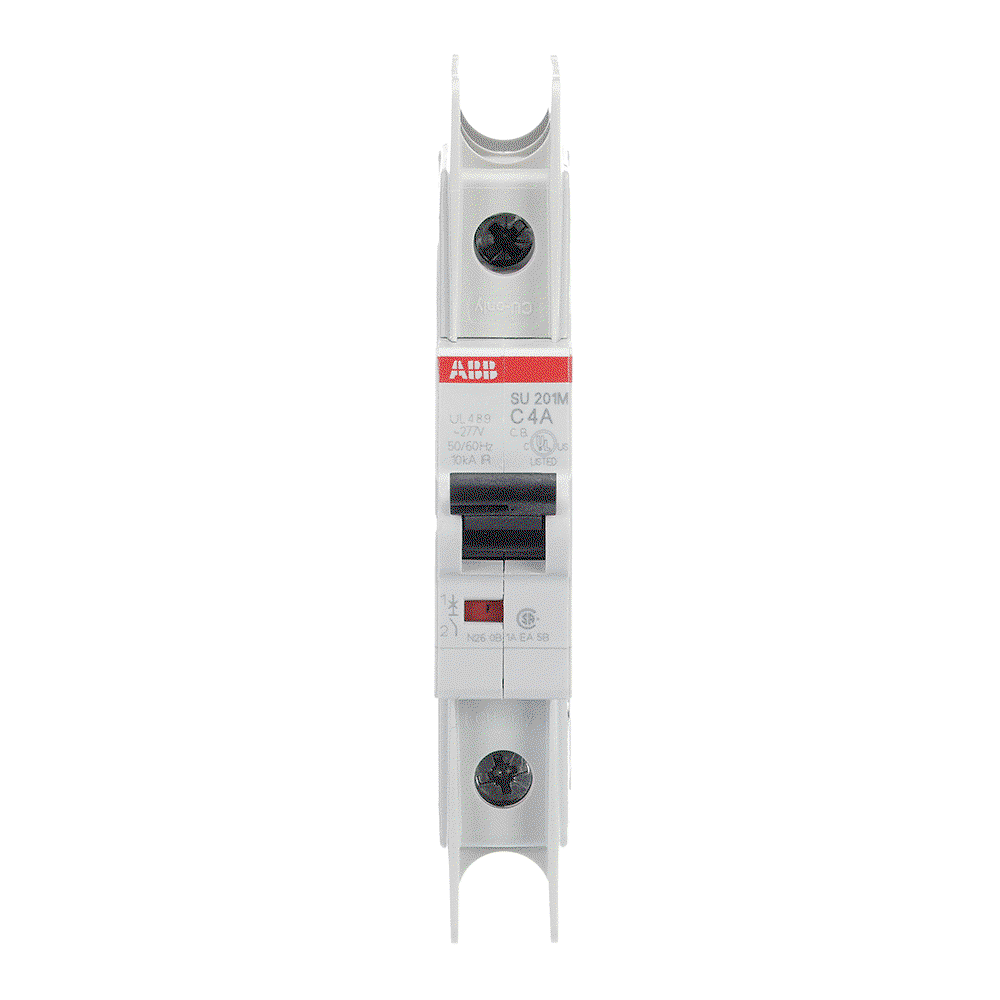

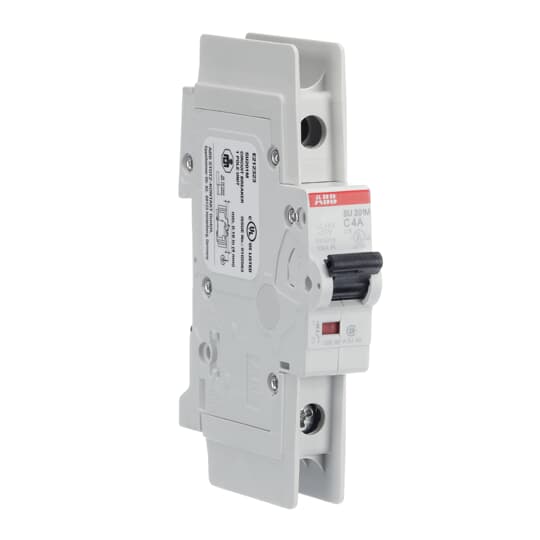

Miniature Circuit Breaker - SU200M - 1P - 4 A - C - (230 V AC) 11.2 kA

Name: Miniature Circuit Breaker - SU200M - 1P - 4 A - C - (230 V AC) 11.2 kA
Brand: ABB
SKU: 2CDS271337R0044
Availability: InStock

SU201M-C4 Miniature Circuit Breaker C-Char., UL10kA, IEC15kA, 4A, 1P UL489

Product identifiers

SKU: 2CDS271337R0044

EAN: 4016779930796

GTIN: 4016779930796

MPN: SU201M-C4

Price range: £ 42.35 - £ 56.84 Excl. VAT

Specifications

Frequency
Power loss	1.8
Voltage type	AC/DC
Rated current	4
Rated voltage
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	1
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	11.2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15
