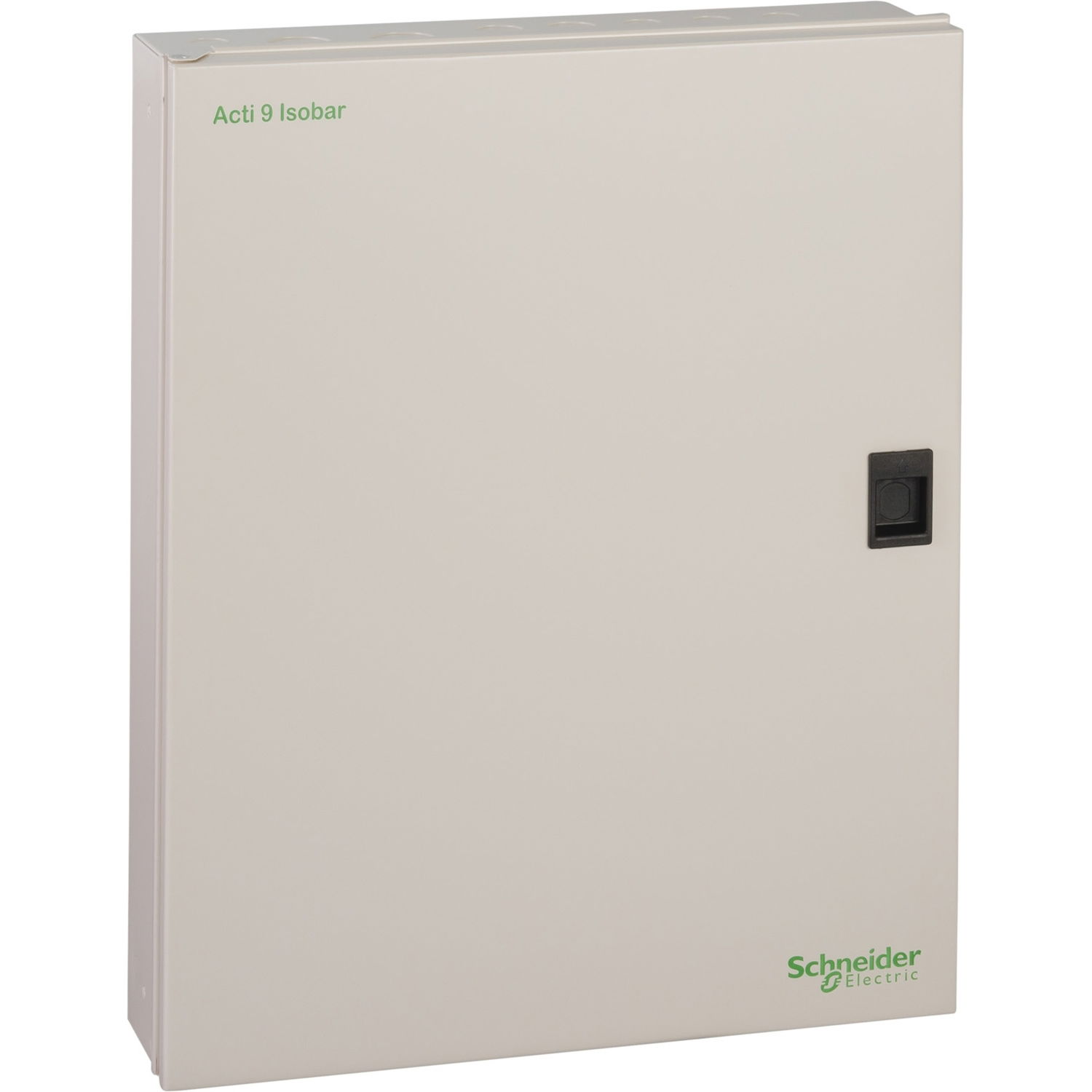

Acti9 Isobar A - din rail enclosure - 32 ways - steel
This Acti9 Isobar A product is a 2 horizontal rows and 32 ways enclosure. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 417mm x (H) 530mm x (D) 117mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is white (RAL9001).
Product identifiers
SKU: SEA9DE64
EAN: 5018934963310
GTIN: 5018934963310
MPN: SEA9DE64
Loyalty points:
39
Price range: £ 232.28 - £ 243.24 Excl. VAT
ETIM Group
Videos
Promotional video
Specifications
| Depth | 117 mm |
| Width | 417 mm |
| Colour | Other |
| Height | 530 mm |
| DIN-rail | yes |
| With lock | yes |
| RAL-number | 9001 |
| Cover model | Closed |
