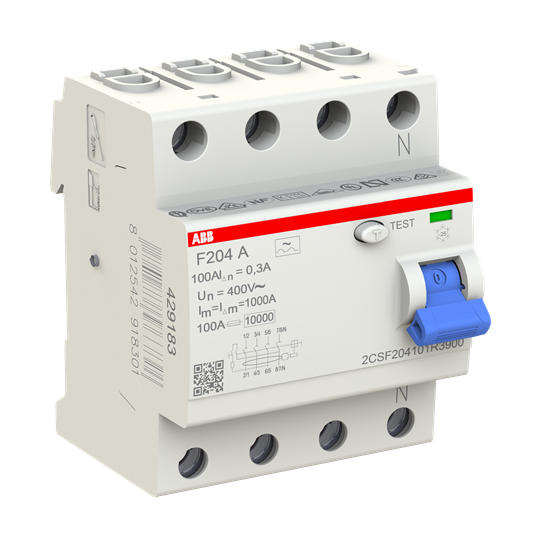

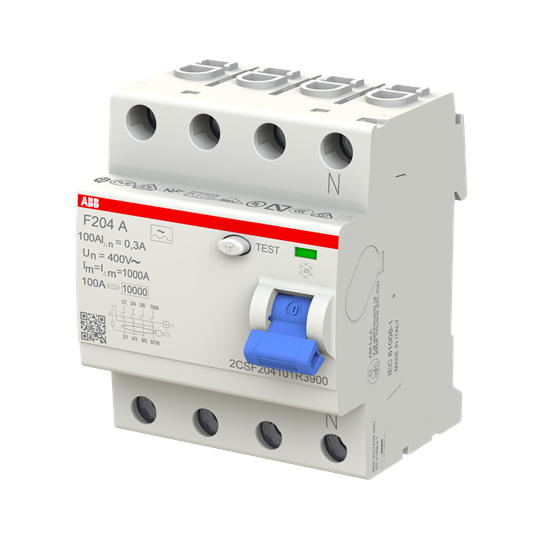

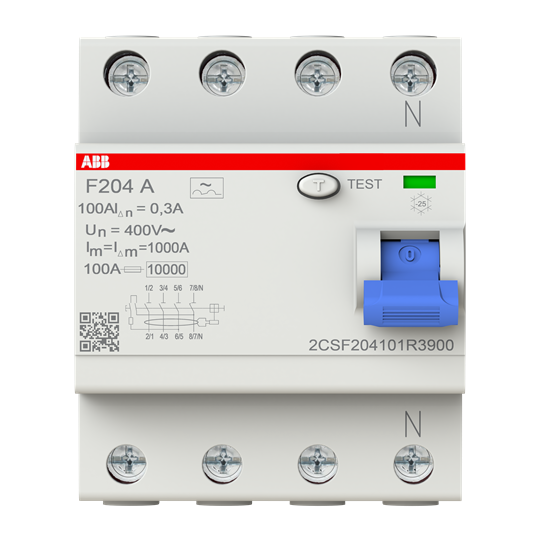

Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type A

Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type A – Image 2 of 3

Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type A – Image 3 of 3

1 / 3

Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type A

Name: Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type A
Brand: ABB
SKU: 2CSF204101R3900
Availability: InStock

Residual Current Circuit Breaker F200 - 4P - 300 mA - 100 A - Type A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade prices range from £295.06 to £368.65 excl. VAT. Voltimum+ members earn 162 points per unit.

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Product identifiers

SKU: 2CSF204101R3900

EAN: 8012542918301

GTIN: 8012542918301

MPN: F204 A-100/0.3

Loyalty points: 162

Price range: £ 295.06 - £ 368.65 Excl. VAT

Specifications

Frequency	Other
Power loss	-
Voltage type	-
Rated current	100
Rated voltage	-
Built-in depth	69
Explosion-proof	no
Mounting method	DIN rail
Number of poles	4
Pollution degree	2
Rated fault current	-
Leakage current type	A
RAL-number (similar)	7035
Selective protection	no
Surge current capacity	-
With interlocking device	yes
Degree of protection (IP)	IP20
Rated insulation voltage Ui	-
Short-time delayed tripping	no
Additional equipment possible	yes
Width in number of modular spacings	4
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Short-circuit breaking capacity (Icw)	-
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
