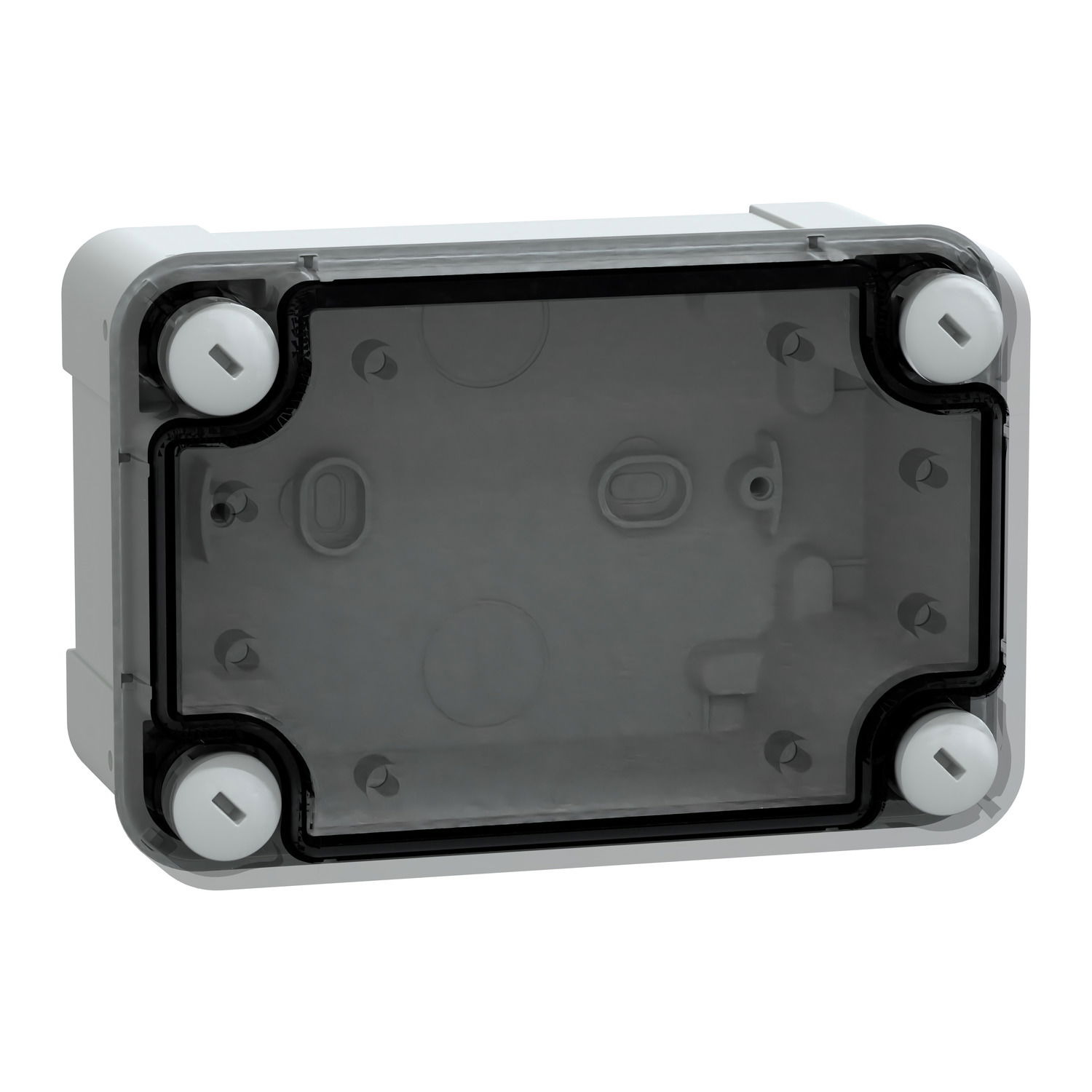

PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 Transp.cover H20

PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 Transp.cover H20

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Product identifiers

SKU: NSYTBP1397T
EAN: 3606480165788
GTIN: 3606480165788
MPN: NSYTBP1397T

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 11.04 - £ 14.97 Excl. VAT

Specifications

Depth 72 mm
Width 93 mm
Colour Grey
Height 138 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 65 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door yes
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -
