Wago

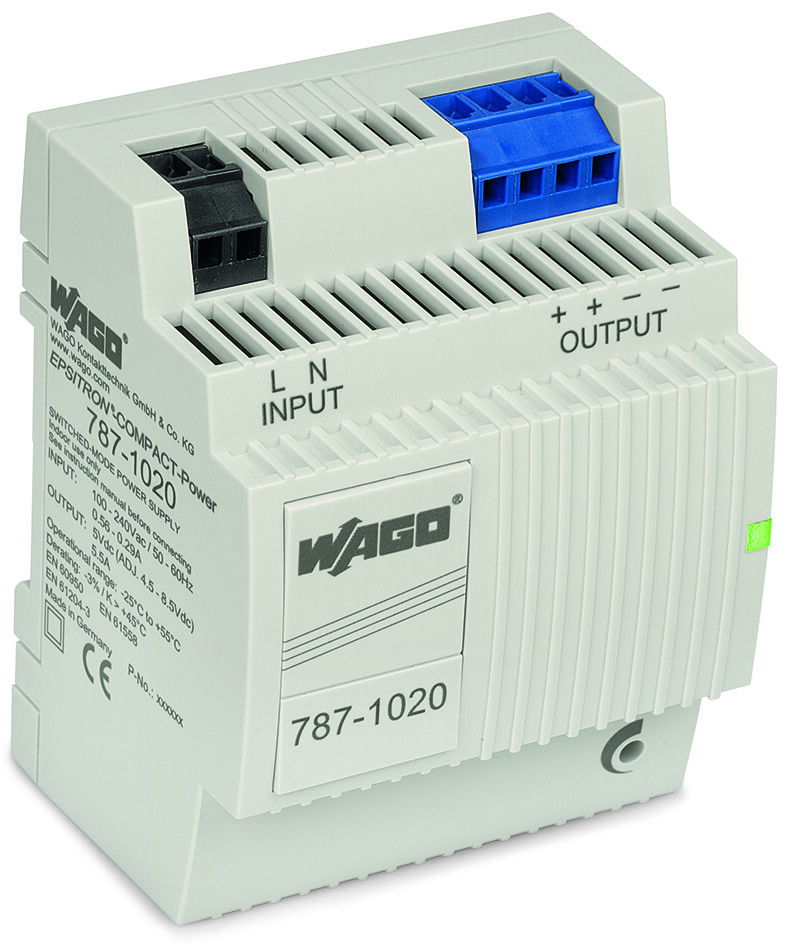

Switched-mode power supply Compact 1-phase

Switched-mode power supply Compact 1-phase by Wago is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £158.43 excl. VAT. Voltimum+ members earn 2 points per unit.

Switched-mode power supply; Compact; 1-phase; 5 VDC output voltage; 5.5 A output current; DC OK signal

Product identifiers

SKU: 787-1020
EAN: 4055143098816
GTIN: 4055143098816
MPN: 787-1020

Voltimum+ Loyalty Programme Loyalty points: 2

Price: £ 158.43 Excl. VAT

Categories

Transformers & Power Supplies DIN Rail Power Supplies

ETIM group

Low-voltage industrial components

Specifications

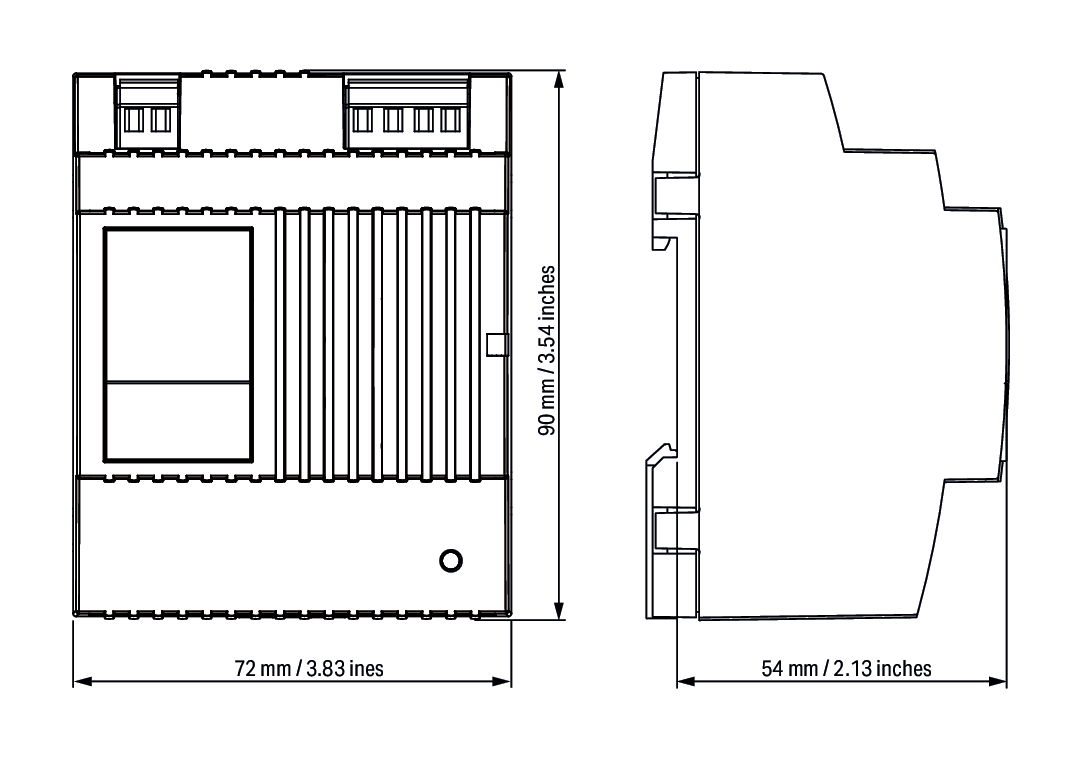

Depth 59
Width 72
Height 89
Stabilized yes
Power output 27.5
Built-in width -
Built-in height -
Modular version yes
Short-circuit-proof yes
Max. output current 2 -
Rated supply voltage DC 120 - 300
Degree of protection (IP) IP20
SIL according to IEC 61508 -
Suitable for wall mounting no
Type of electric connection Spring clamp connection
2nd secondary output voltage
Secondary voltage adjustable yes
Rated supply voltage AC 60 Hz 85 - 264
Voltage type (supply voltage) AC/DC
Nominal value output current 2 -
Nominal value output voltage 1 5
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 -
