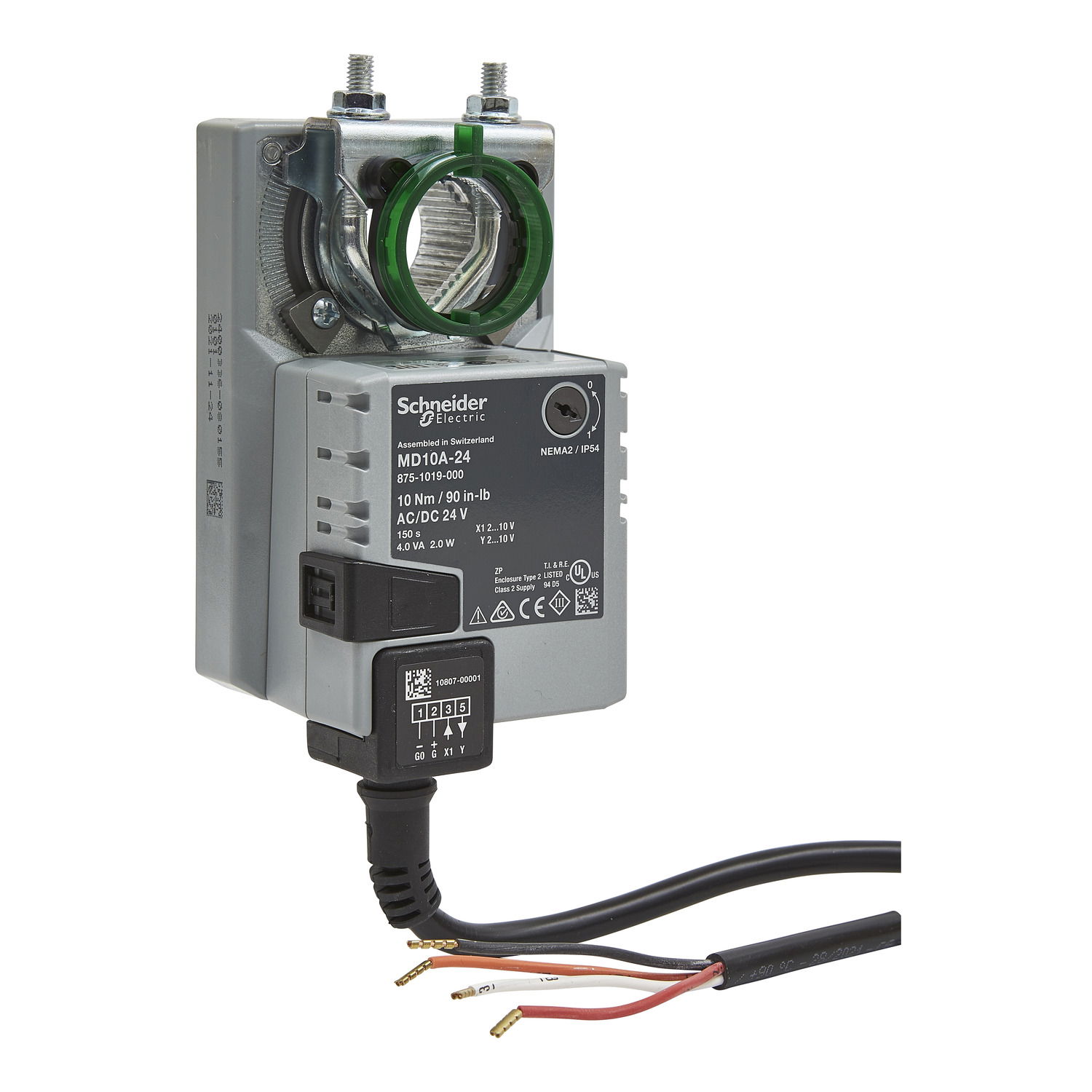

MD10A Electric Damper Actuator, Modulating, 2-10Vdc, Non-Spring Return, 24Vac/dc, 1m Cable, 10Nm, IP54
MD10A Electric Damper Actuator, Modulating, 2-10Vdc, Non-Spring Return, 24Vac/dc, 1m Cable, 10Nm, IP54
The MD1A is a 2…1 V modulating damper actuators. It is designed for operating air control dampers in ventillation and air conditioning systems for building services installations. As an accessory, the modulating actuator have a fully adjustable auxiliary switch unit. The actuator is maintenance free, with mechanical position indication. Supply voltage: 24 Vac/Vdc +/- 2%. Modulating control signal: 2…1 Vdc. Torque: 1 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable by mechanical stops. Connection cable 1 m, 4 x .75 mm² (AW 18).
Product identifiers
SKU: 8751019000
EAN: 3606489659264
GTIN: 3606489659264
MPN: 8751019000
Loyalty points:
53
Price: £ 316.00 Excl. VAT
Categories
ETIM group
Specifications
| Depth | - |
| Model | Rotating |
| Width | 131 mm |
| Height | 79 mm |
| Torque | 10 Nm |
| End contacts | None |
| Transmission | - |
| Stroke length | - |
