Schneider Electric
Popularity Top 10% More about Popularity
Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

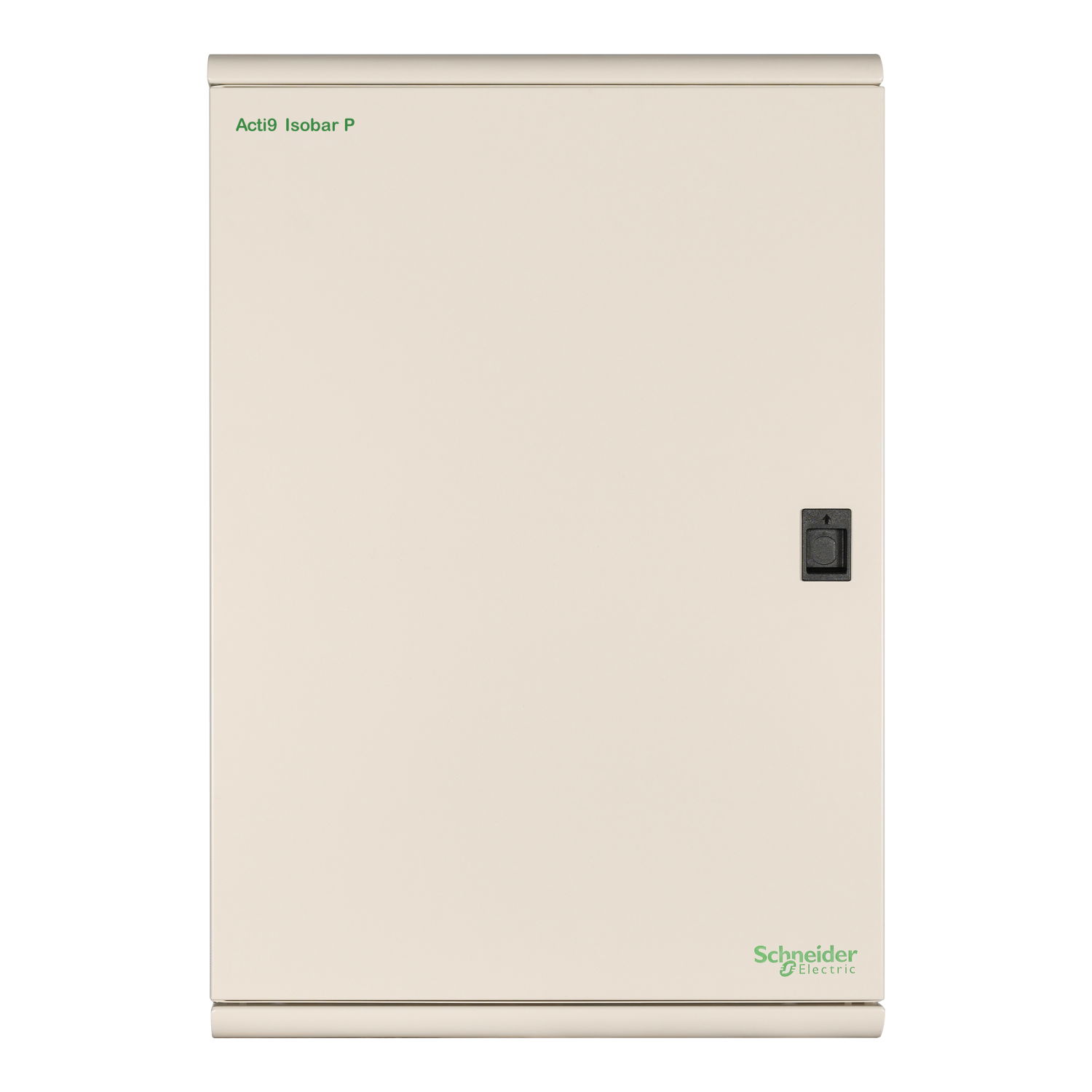

Acti9 Isobar P B - distribution board - 8 ways TP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar P B - distribution board - 8 ways TP+N by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Rexel Group and 3 more. It is currently in stock at 4 of them. Trade prices range from £307.46 to £460.99 excl. VAT. Voltimum+ members earn 51 points per unit.

This Acti9 Isobar P B product is a distribution board, up to 250A. It is a 8 ways of 3 poles outgoer. This distribution board include a 250A swtich disconector incomer. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 538mm x (D) 138mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL9001). This distribution board is compliant with BS/EN 61439-3.

Voltimum+ Loyalty Programme Loyalty points: 51

Price range: £ 307.46 - £ 460.99 Excl. VAT

Specifications

Depth 138 mm
Width 470 mm
Colour Other
Height 538 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 8

Documents

Declaration of Conformity (Sustainability)

SEA9BPN8 REACh Regulation

Open

Instruction sheet

Acti9 - ISOBAR P Type B & ISOBAR Type B - Instruction Sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9BPN8 EU RoHS Directive

Open

Declaration of conformity

EU declaration of conformity

Open

Declaration of Conformity (Sustainability)

SEA9BPN8 OECD PFAS Regulation

Open

Declaration of Conformity (Sustainability)

SEA9BPN8 POP Directive

Open
