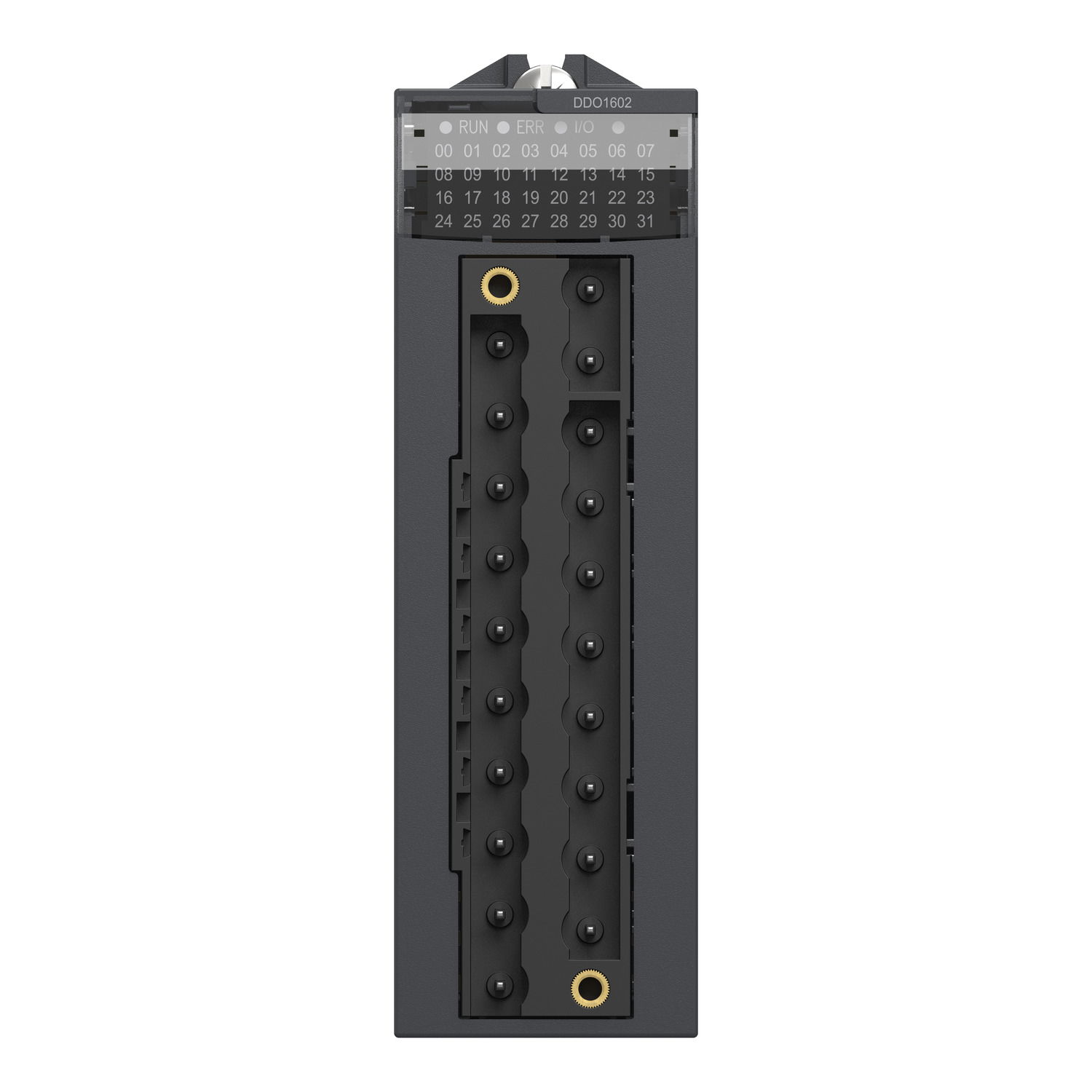

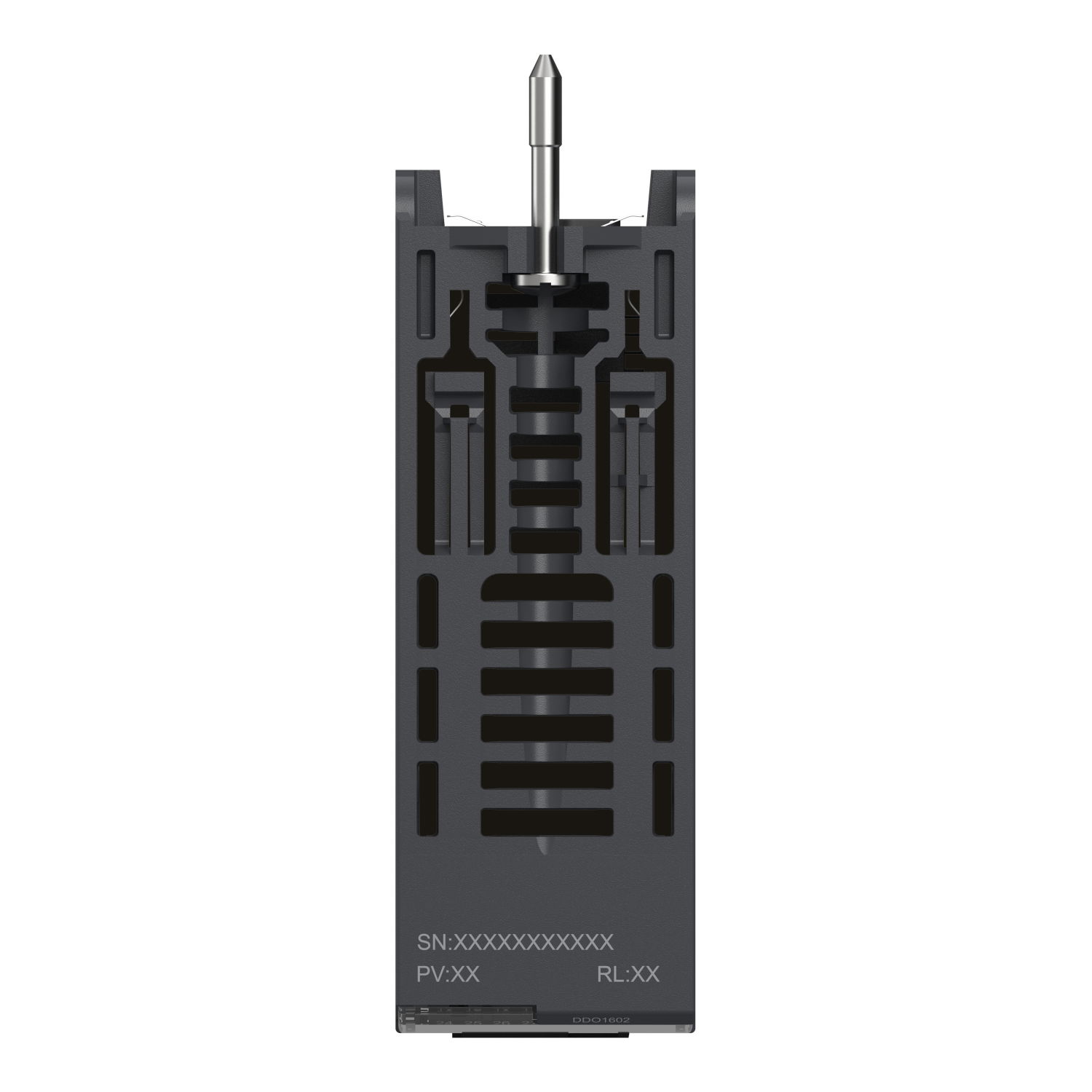

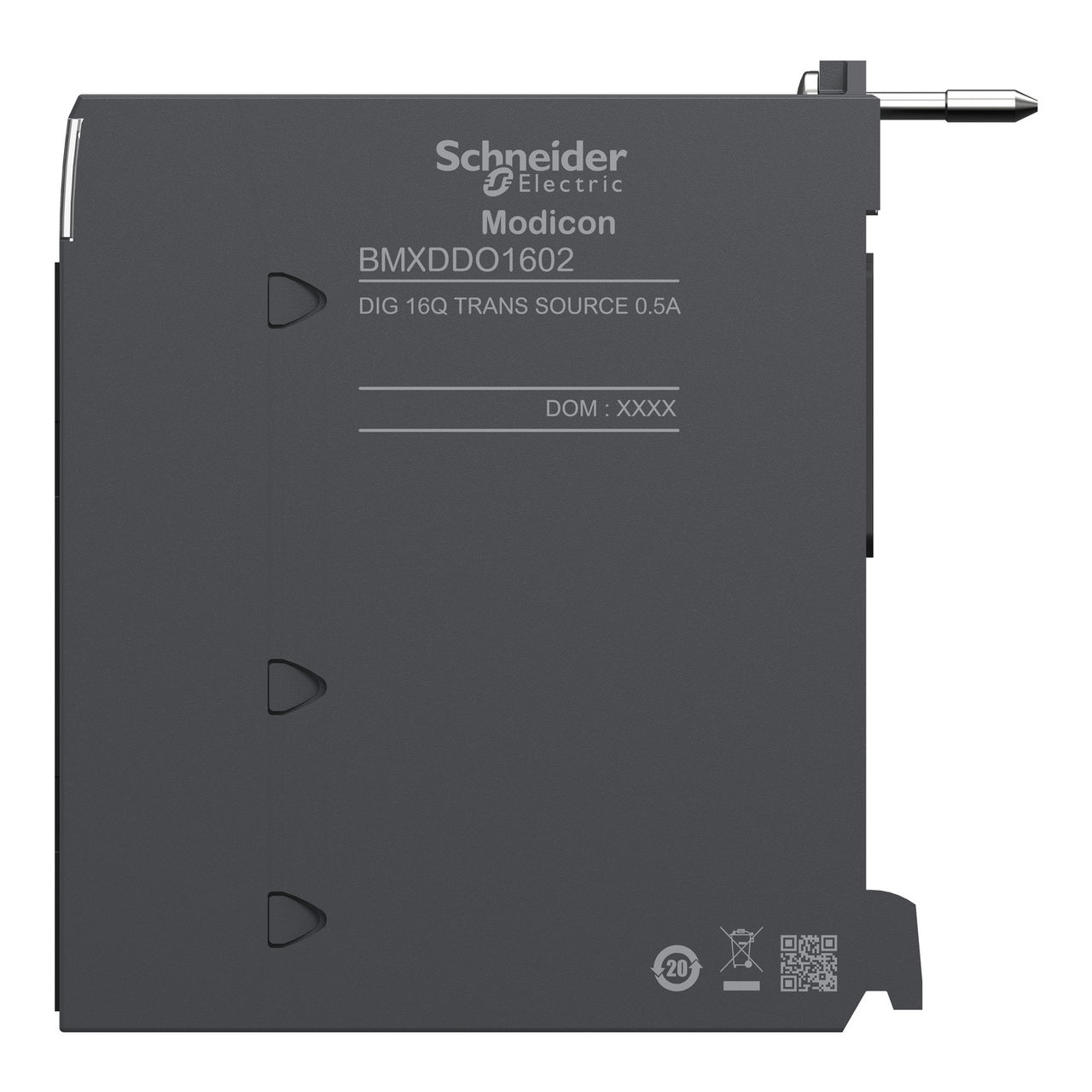

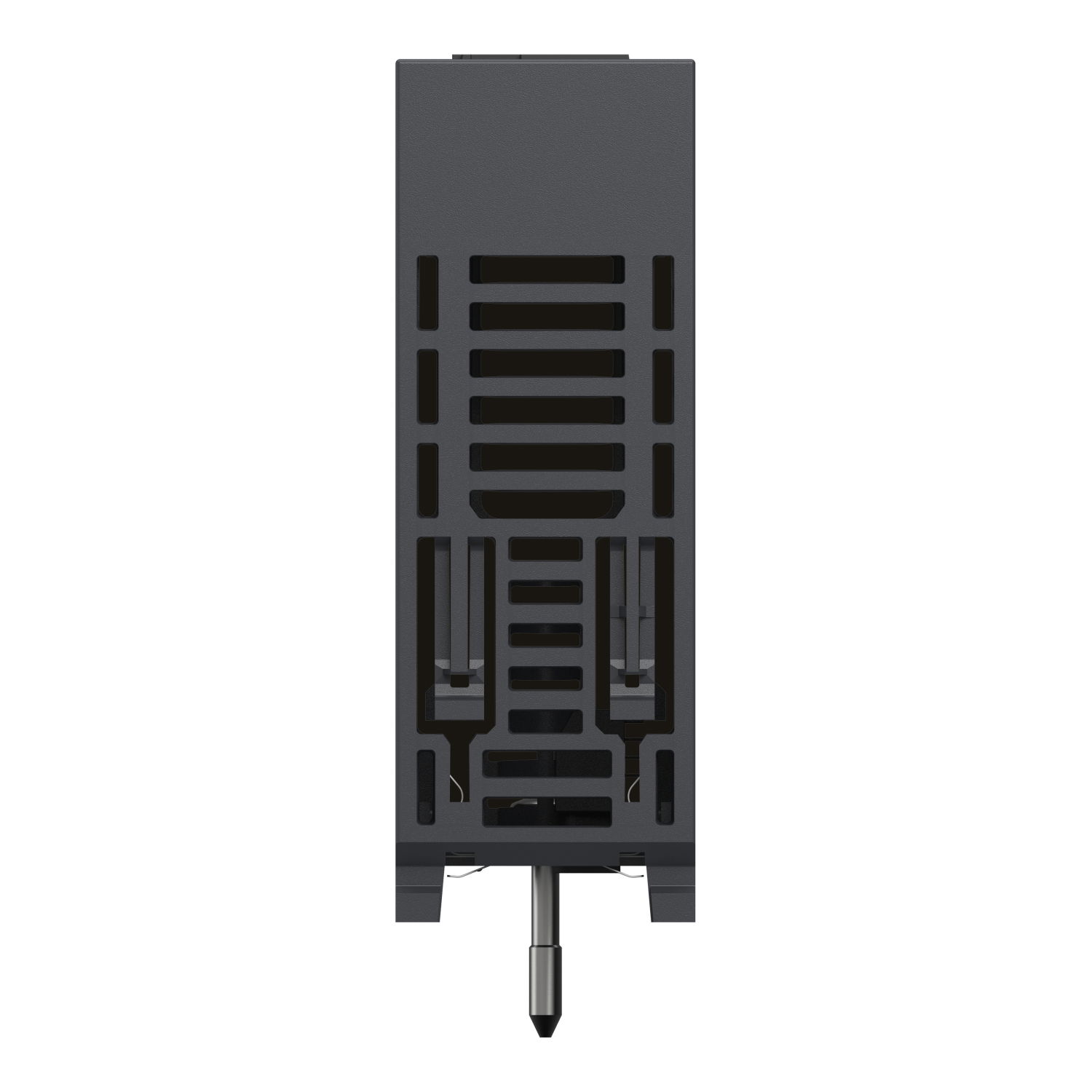

Discrete output module X80 - 16 outputs - 24 V DC positive

Link copied
SKU
EAN
GTIN
MPN

Discrete output module X80 - 16 outputs - 24 V DC positive by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £165.88 to £221.19 excl. VAT. Voltimum+ members earn 26 points per unit.

This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Voltimum+ Loyalty Programme Loyalty points: 26

Price range: £ 165.88 - £ 221.19 Excl. VAT

Specifications

Depth 150 mm
Width 33 mm
Height 100 mm
Redundancy no
Output current 0.5 A
Power consumption 6 W
Supply voltage DC
Type of digital output Transistor
Supply voltage AC 50 Hz
Number of digital inputs 0
Number of digital outputs 16
SIL according to IEC 61508 None
Permitted voltage at output
Type of electric connection Plug-in connection
Suitable for safety functions no
Type of voltage (input voltage) DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None
Performance level according to EN ISO 13849-1 None
