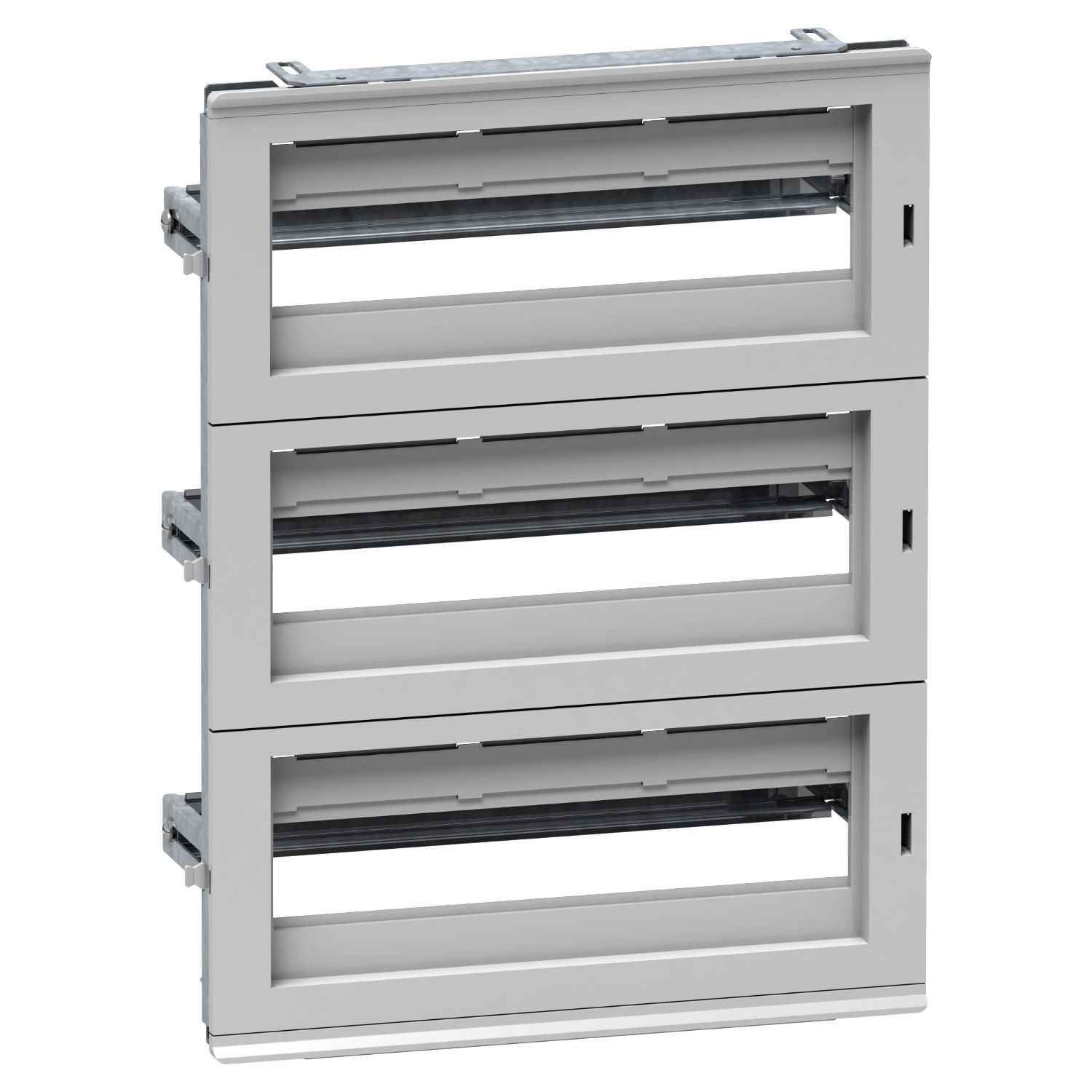

Modular distribution chassis 48 modules for NSYPLM54,NSYS3D54,NSYCRN54,NSYS3X54

"DLA chassis for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and Thalassa PLM enclosures" "The chassis is to be fixed on front of enclosure by fixing elements with supports location" "The width is 360mm" The height is 480mm Number of 18mm modules is 48 (1 module = 2 steps = 18 mm) Number of horizontal rows is 3 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel The front has a grey (RAL 7035) color Number of cut-outs is 3 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 3 front panels with 35mm DIN rails "This product is qualified as a green premium, with minimal use of hazardous substances"
