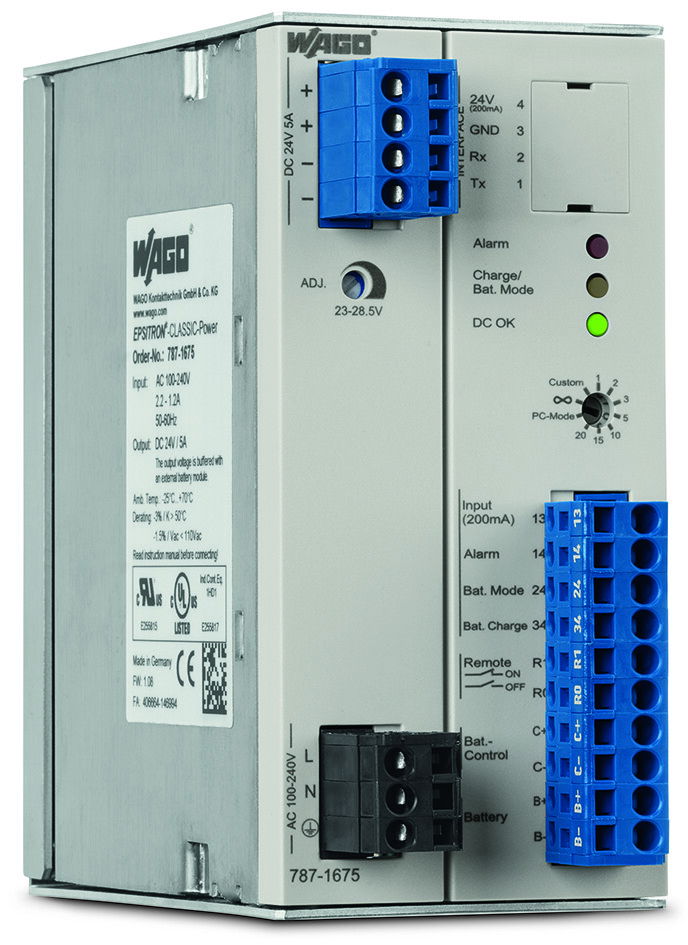

Switched-mode power supply with integrated charger and controller Classic 1-phase

Switched-mode power supply with integrated charger and controller Classic 1-phase

Switched-mode power supply with integrated charger and controller; Classic; 1-phase; 24 VDC output voltage; 5 A output current; communication capability

Product identifiers

SKU: 787-1675
EAN: 4050821502616
GTIN: 4050821502616
MPN: 787-1675

Voltimum+ Loyalty Programme Loyalty points: 6

Price: £ 372.77 Excl. VAT

Specifications

Depth 135.5
Width 60
Height 127
Stabilized yes
Power output 120
Built-in width -
Built-in height -
Modular version no
Short-circuit-proof no
Max. output current 2 -
Rated supply voltage DC 120 - 372
Degree of protection (IP) IP20
SIL according to IEC 61508 -
Suitable for wall mounting no
Type of electric connection Spring clamp connection
2nd secondary output voltage 18.5 - 27.5
Secondary voltage adjustable yes
Rated supply voltage AC 60 Hz 85 - 264
Voltage type (supply voltage) AC/DC
Nominal value output current 2 -
Nominal value output voltage 1 24
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 -
