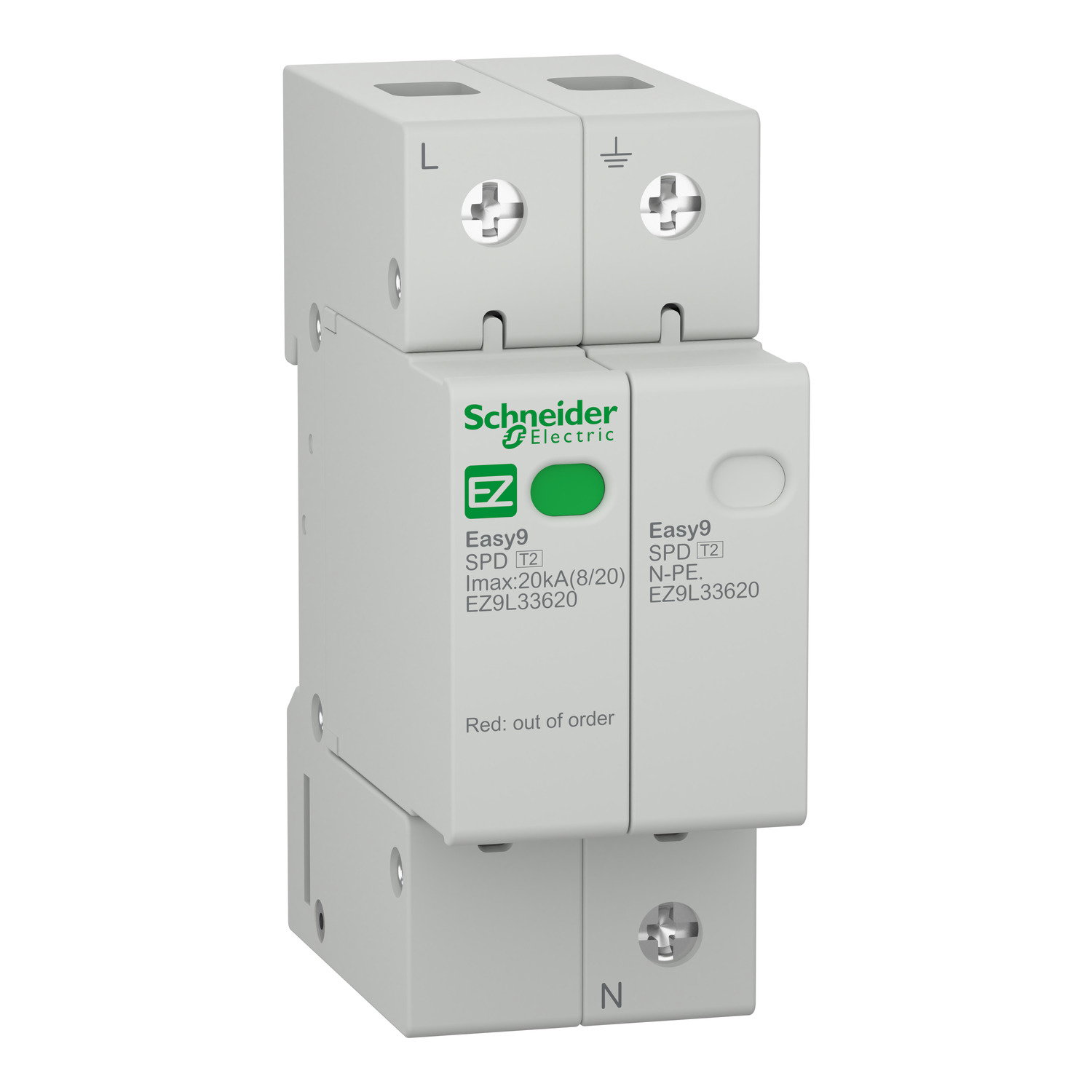

Easy9 surge arrester - 1P + N - 230 V - 20000 A
This Easy9 is a SPD surge arrester. Protects the circuit from switching surges. IP 20 degree of protection on terminal DIN rail mounting support Clip on mounting mode The Uc maximum continuous operating voltage is 275VAC. The In nominal discharge current is 10kA. The Up maximum voltage protection level is 1.3kV It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. According to IEC 60529 standard, the degree of protection is or IP40 in modular enclosure. The pollution degree is . The operating temperature is -5°C to 60°C. The storage temperature is -5°C to 70°C. This product complies with IEC 61643-11 standard.
Product identifiers
SKU: EZ9L33620
EAN: 3606480586767
GTIN: 3606480586767
MPN: EZ9L33620
Loyalty points: 161
Price range: £ 59.95 - £ 60.61 Excl. VAT
Categories
Features
|
Category type 2
|
TRUE
|
|
Max. PV-voltage
|
-
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Construction size
|
2 modular spacing
|
|
Nominal voltage AC
|
230 V
|
|
Nominal voltage DC
|
-
|
|
Leakage-current free
|
FALSE
|
|
Integrated backup fuse
|
FALSE
|
|
System configuration DC
|
FALSE
|
|
System configuration IT
|
FALSE
|
|
System configuration TN
|
FALSE
|
|
System configuration TT
|
TRUE
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
1.3 kV
|
|
Degree of protection (IP)
|
IP20
|
|
System configuration TN-C
|
FALSE
|
|
System configuration TN-S
|
TRUE
|
|
Max. continuous voltage AC
|
275 V
|
|
Max. continuous voltage DC
|
-
|
|
System configuration other
|
FALSE
|
|
System configuration TN-C-S
|
FALSE
|
|
Voltage protection level L-N
|
1.3 kV
|
|
Voltage protection level N-PE
|
1.3 kV
|
|
With remote signalling contact
|
FALSE
|
|
Integrated short-circuit protection
|
FALSE
|
|
Max. discharge surge current (8/20)
|
20 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
1
|
|
Short-circuit breaking capacity (Isccr)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
35 mm²
|
|
Max. conductor cross section solid (solid, stranded)
|
35 mm²
|
|
Integrated short-circuit protection selective to fuse gG
|
-
|
|
Max. overcurrent protection device, series connection (fuse)
|
-
|
|
Max. overcurrent protection device, parallel connection (fuse)
|
-
|
