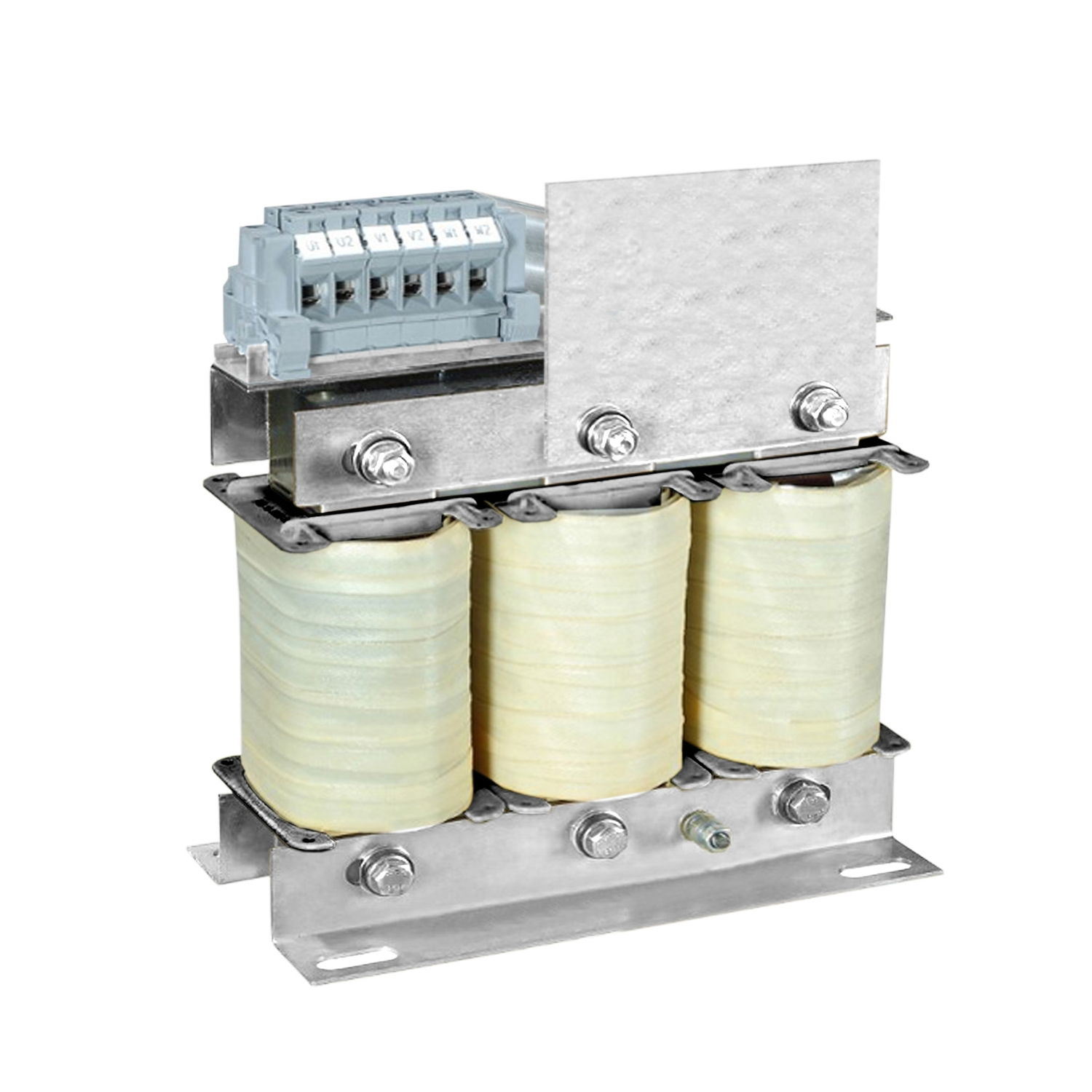

Sinus filter - 400 A - for Altivar variable speed drive
Sinus filter - 400 A - for Altivar variable speed drive
Sinus filter - 400 A - for Altivar variable speed drive by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £9,213.00 excl. VAT. Voltimum+ members earn 1 point per unit.
This sinus filter is an option for variable speed drives of Altivar range. Its rated current is equal to 400A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 190kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Product identifiers
SKU: VW3A5209
EAN: 3389119201605
GTIN: 3389119201605
MPN: VW3A5209
Loyalty points:
1
Price: £ 9,213.00 Excl. VAT
Categories
ETIM group
Specifications
| Rated current AC | |
| Rated clock frequency | 8 kHz |
| Suitable as du/dt-filter | no |
| Suitable as sinus filter | yes |
| Degree of protection (IP) | IP00 |
| Rated operating frequency | |
| Degree of protection (NEMA) | - |
| Number of poles, primary side | 3 |
