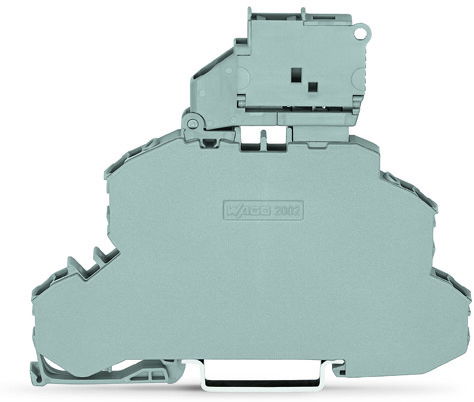

Double-deck fuse terminal block with pivoting fuse holder Through/Fuse terminal block gray
Wago

Double-deck fuse terminal block with pivoting fuse holder Through/Fuse terminal block gray

Double-deck fuse terminal block; with pivoting fuse holder; Through/Fuse terminal block; for 5 x 20 mm miniature metric fuse; L/L; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product identifiers

SKU: 2002-2611
EAN: 4055143873253
GTIN: 4055143873253
MPN: 2002-2611

Voltimum+ Loyalty Programme Loyalty points: 2 (x25)

Price range: £ 4.86 - £ 5.55 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 76.4
Width 6.2
Colour Grey
Height 93
EFNA0008 V0
Rated voltage 250
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 2
Type of fuse holder Swivelling
Operating temperature 105 - 105
Material insulation body Thermoplastic
Type of electrical connection 2 Spring clamp connection
Supply voltage for defect-indication
Connectable conductor cross section multi-wired 0.25 - 4
Connectable conductor cross section fine-strand with cable end sleeve 0.75 - 2.5
