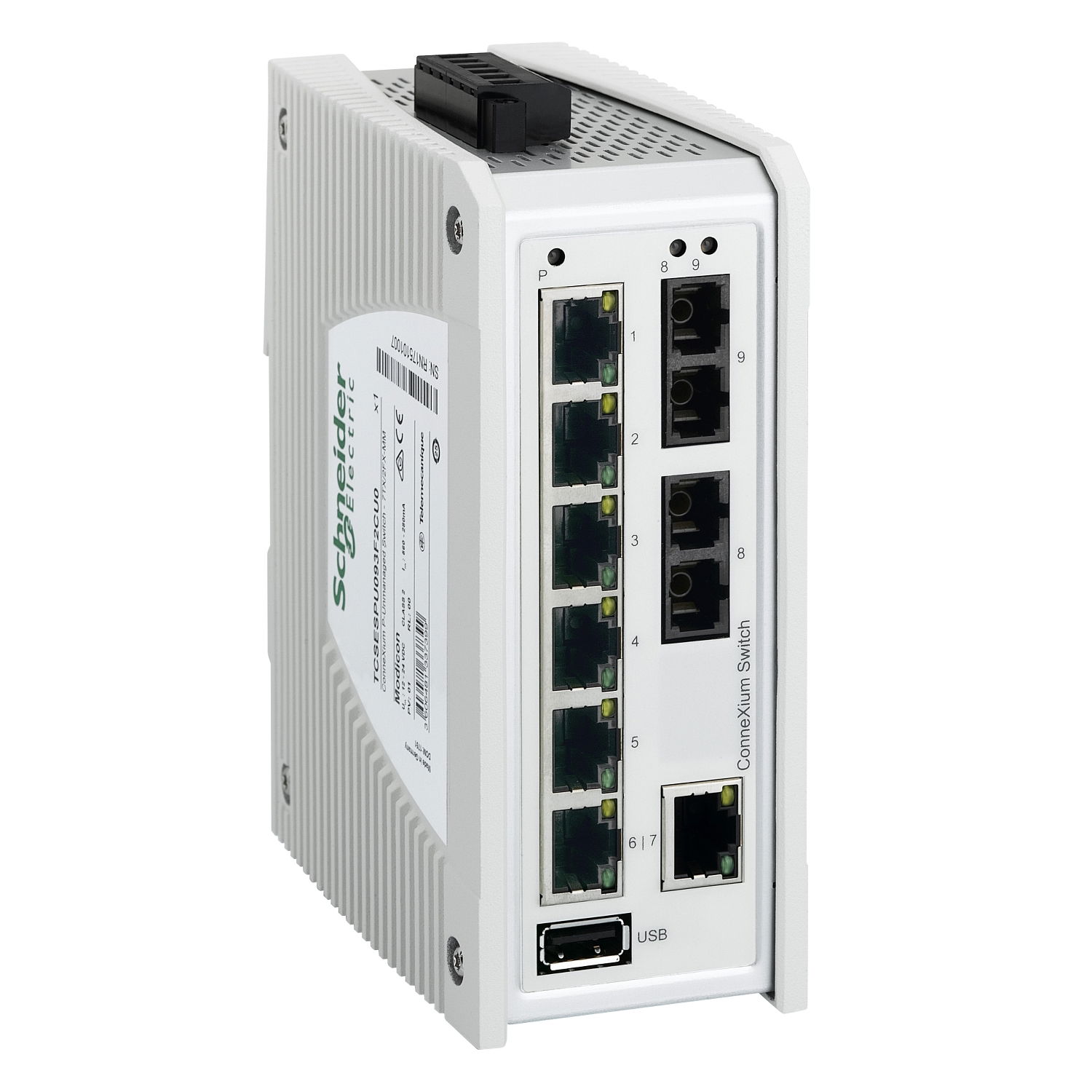

ConneXium Premium Unmanaged Switch - 7 ports for copper + 2 ports for fiber optic multimode
"This product is part of the Modicon Networking range, an offer of Modicon Premium Unmanaged Switch." "This device comes with Ethernet TCP/IP protocol." "It comes with 7 copper cable transmission ports and 2 ports for multi-mode fiber optic." "It provides simple connectivity for multiple Ethernet device and more advanced switching features for unmanaged switches." "This product works at a power consumption of 6.9W and a rated voltage from 12V to 24V DC." "It is furnished with 6-way removable connector (power supply) for electrical connection" "Its dimensions are 56mm (width) x 135mm (height) x 117mm (depth) and weighs 0.51 kg." "It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels." "It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards." "It is designed to be mounted on a 35mm symmetrical DIN rail." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."
Product identifiers
SKU: TCSESPU093F2CU0
EAN: 3606481337399
GTIN: 3606481337399
MPN: TCSESPU093F2CU0
Loyalty points:
218
Price: £ 528.33 Excl. VAT
Categories
Features
|
Depth
|
113 mm
|
|
Width
|
56 mm
|
|
Height
|
135 mm
|
|
Layer 2
|
no
|
|
Layer 3
|
no
|
|
EFFR0001
|
no
|
|
EFFR0002
|
no
|
|
Ethernet
|
no
|
|
Manageable
|
yes
|
|
Max. PoE power
|
-
|
|
Mounting method
|
DIN rail (top hat rail)
|
|
Number of ports PoE
|
0
|
|
Number of other ports
|
0
|
|
Max. power consumption
|
6.9 W
|
|
Number of module slots
|
0
|
|
Redundant power supply
|
no
|
|
Degree of protection (IP)
|
IP40
|
|
Power over Ethernet (PoE)
|
Other
|
|
Number of ports 100 Mbps SC
|
2
|
|
Number of ports 100 Mbps ST
|
0
|
|
Number of ports 10 Gbps RJ45
|
0
|
|
Number of ports 100 Mbps POF
|
0
|
|
Number of ports 1000 Mbps POF
|
0
|
|
Number of ports 1000 Mbps GBIC
|
0
|
|
Number of ports 1000 Mbps RJ45
|
0
|
|
Number of ports 10/100 Mbps M12
|
0
|
|
Number of ports 10/100 Mbps RJ45
|
7
|
|
Number of max. stackable switches
|
0
|
|
Number of ports 10 Gbps Mini GBIC
|
0
|
|
Number of ports 1000 Mbps SC (LX)
|
0
|
|
Number of ports 1000 Mbps SC (SX)
|
0
|
|
Number of ports 40 Gbps Mini GBIC
|
0
|
|
Number of ports 100 Gbps Mini GBIC
|
0
|
|
Number of ports 1000 Mbps Mini GBIC
|
0
|
|
Number of ports 10/100/1000 Mbps RJ45
|
0
|
|
Number of ports 100/1000 Mbps Mini GBIC
|
0
|
|
Number of combination-ports RJ45/Mini GBIC
|
0
|
