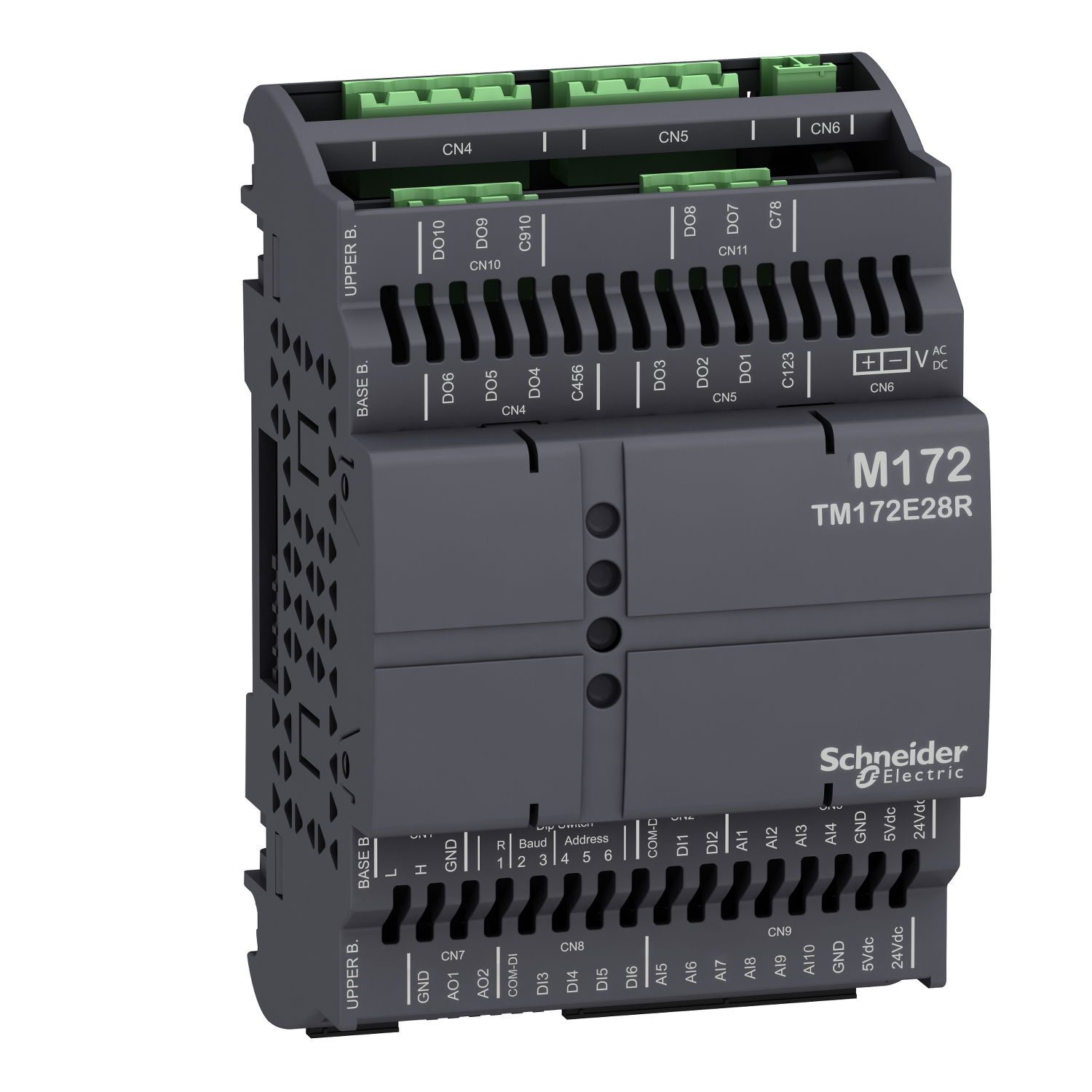

Modicon M172 Optimized and Performance expansion 28 I/Os

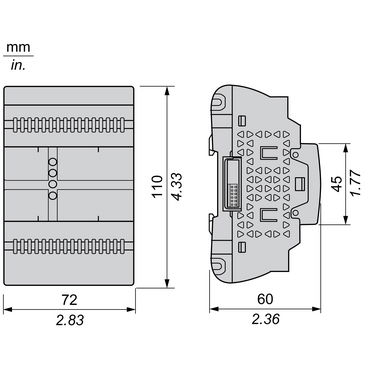

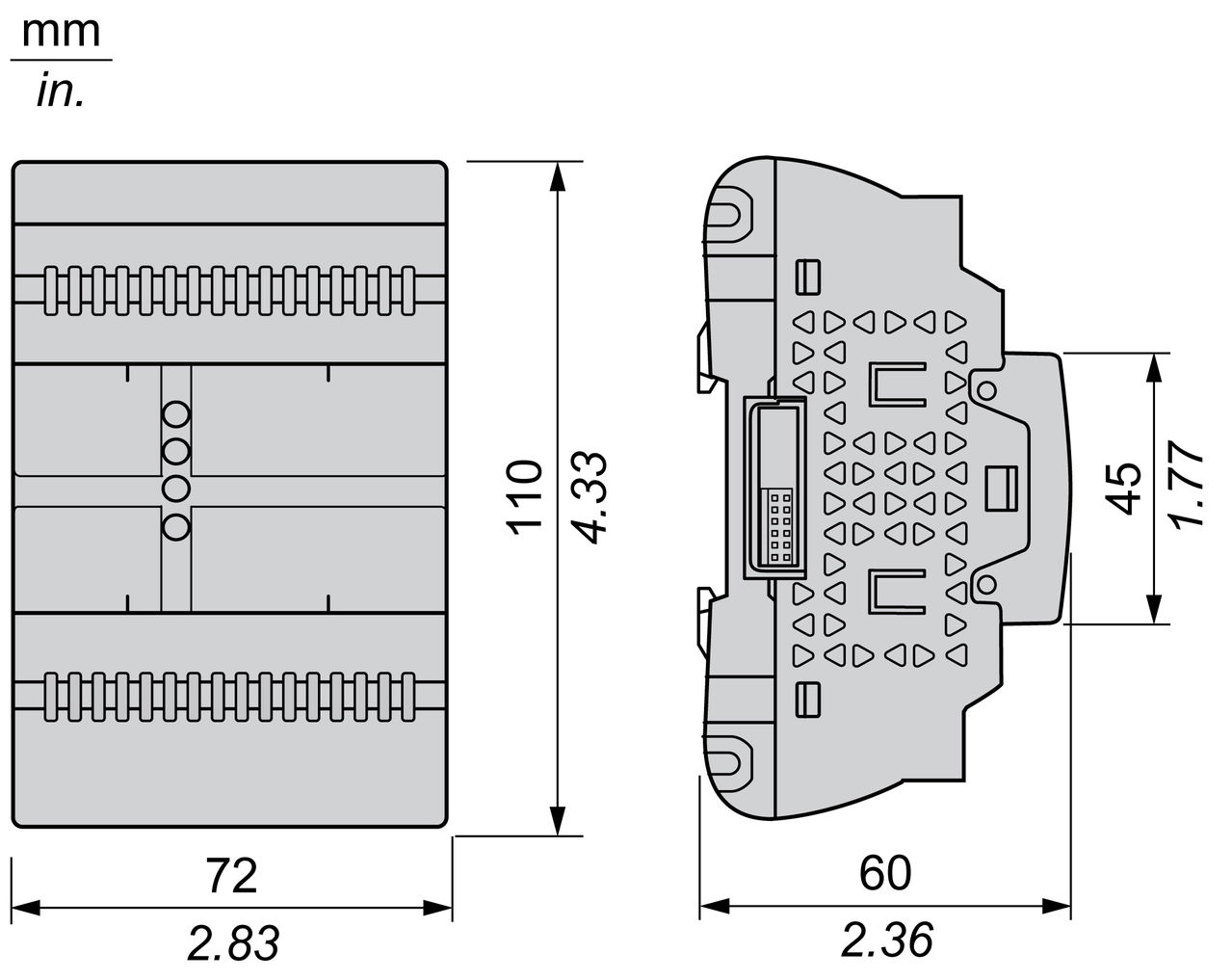

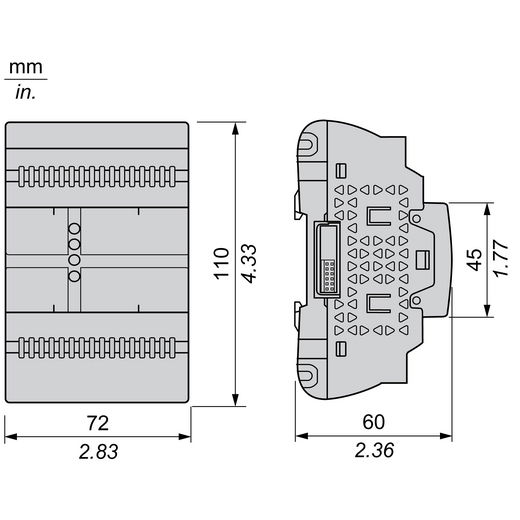

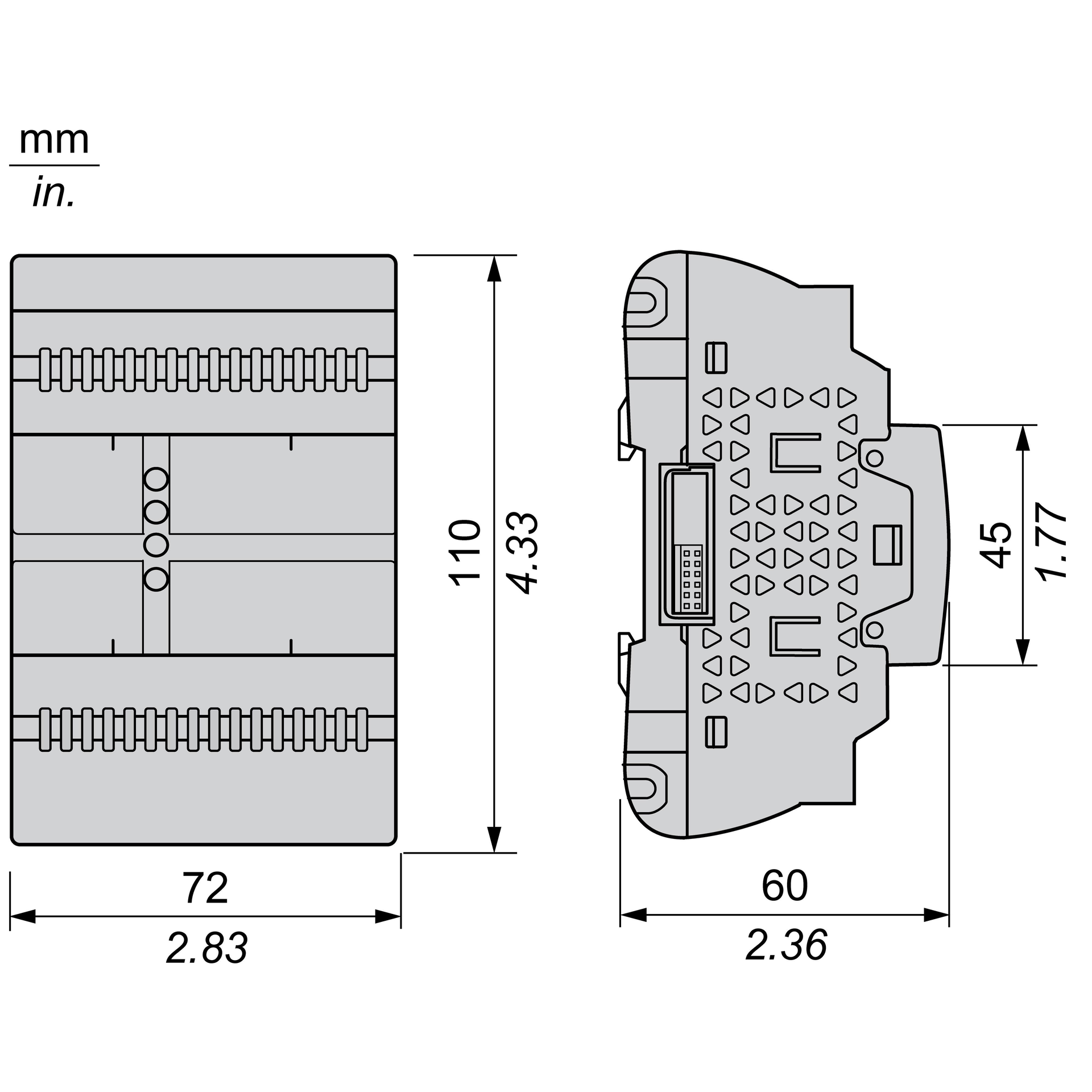

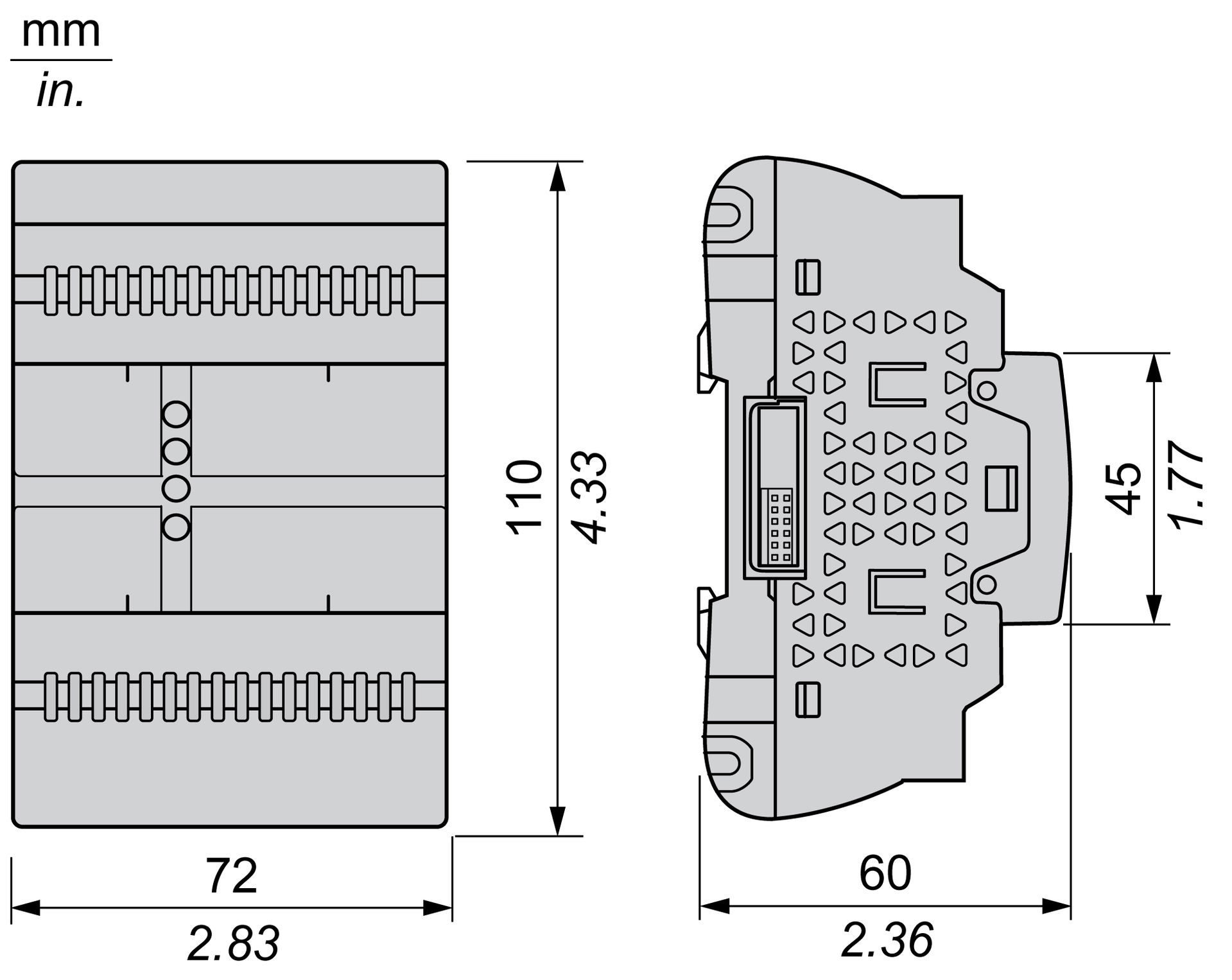

This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink). It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 10 configurable by pair analogue input with 2 programmable analogue outputs. It is an IP20 rated product. Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Product identifiers
SKU: TM172E28R
EAN: 3606481267627
GTIN: 3606481267627
MPN: TM172E28R
Loyalty points: 104
Price: £ 203.90 Excl. VAT
Categories
Features
|
Depth
|
59 mm
|
|
Width
|
72 mm
|
|
Height
|
110 mm
|
|
Supply voltage DC
|
|
|
Type of digital output
|
Relay
|
|
Type of output voltage
|
AC
|
|
Analogue input, current
|
TRUE
|
|
Analogue input, voltage
|
TRUE
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Analogue input, resistor
|
FALSE
|
|
Analogue output, current
|
TRUE
|
|
Analogue output, voltage
|
TRUE
|
|
Number of digital inputs
|
6
|
|
Input current at signal 1
|
0.5 mA
|
|
Number of analogue inputs
|
10
|
|
Number of digital outputs
|
10
|
|
Number of analogue outputs
|
2
|
|
Permitted voltage at input
|
|
|
SIL according to IEC 61508
|
None
|
|
Time delay at signal change
|
|
|
Type of electric connection
|
Screw connection
|
|
Analogue input, thermocouple
|
FALSE
|
|
Suitable for safety functions
|
FALSE
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Type of voltage (input voltage)
|
DC
|
|
Output current at digital output
|
3 A
|
|
Output voltage at digital output
|
|
|
Appendant operation agent (Ex ia)
|
FALSE
|
|
Appendant operation agent (Ex ib)
|
FALSE
|
|
Digital in-/outputs, configurable
|
FALSE
|
|
Explosion safety category for gas
|
None
|
|
Resolution of the analogue inputs
|
13 Bit
|
|
Analogue input signal configurable
|
TRUE
|
|
Explosion safety category for dust
|
None
|
|
Resolution of the analogue outputs
|
13 Bit
|
|
Analogue output signal configurable
|
TRUE
|
|
Analogue input, resistor temperature
|
TRUE
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Short-circuit protection, digital outputs available
|
FALSE
|
