Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

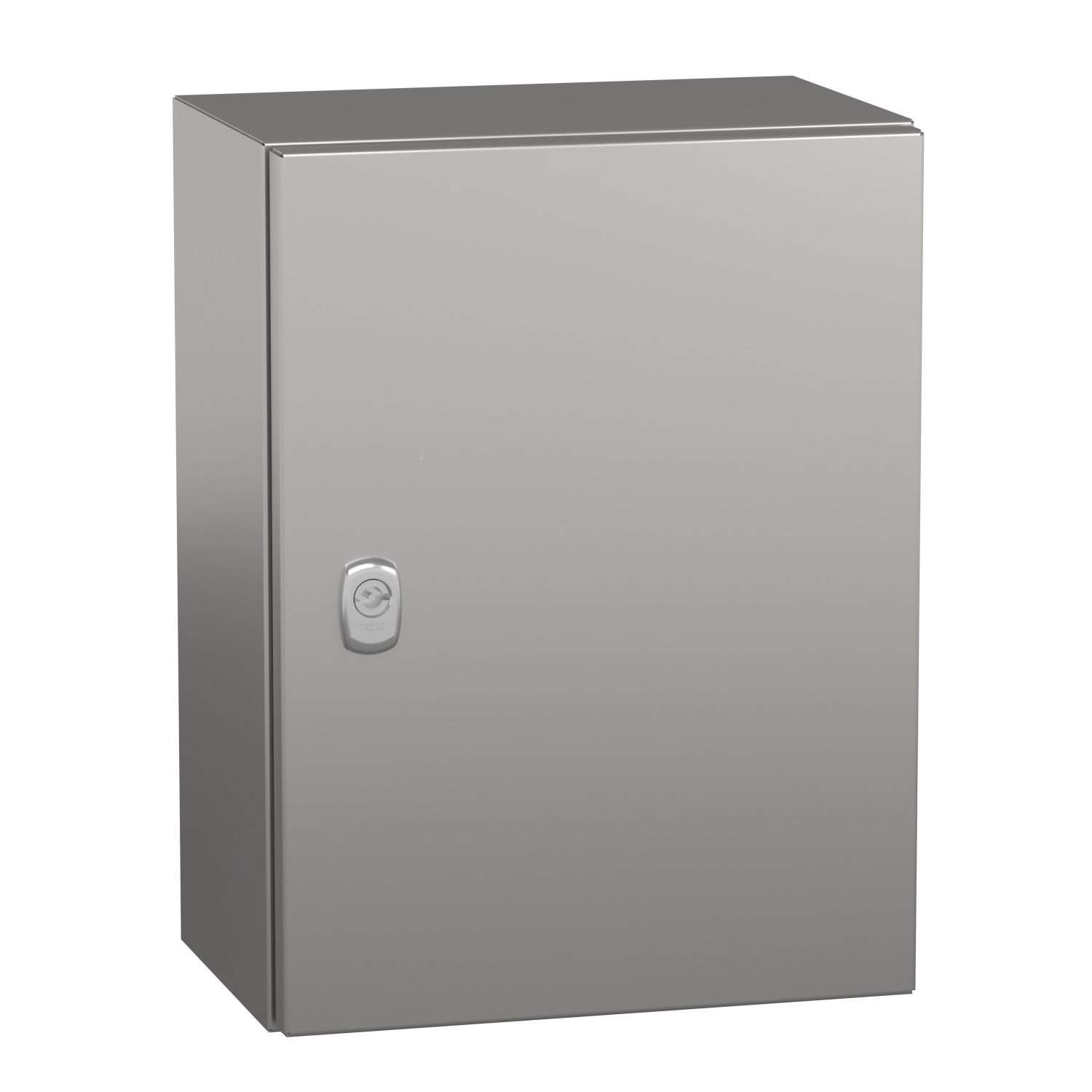

"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW300xD200 mm."

"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW300xD200 mm." by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £282.42 to £316.58 excl. VAT. Voltimum+ members earn 39 points per unit.

Spacial S3X compact steel enclosure with plain front door. 400 x 300 x 200 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.

Product identifiers

SKU: NSYS3X4320
EAN: 3606480155116
GTIN: 3606480155116
MPN: NSYS3X4320

Voltimum+ Loyalty Programme Loyalty points: 39

Price range: £ 282.42 - £ 316.58 Excl. VAT

Categories

Electrical Enclosures Enclosures & Panels

ETIM group

Control cabinet systems

Specifications

Depth 200 mm
Width 300 mm
Colour Stainless steel
Height 400 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 304 (V2A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
