Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

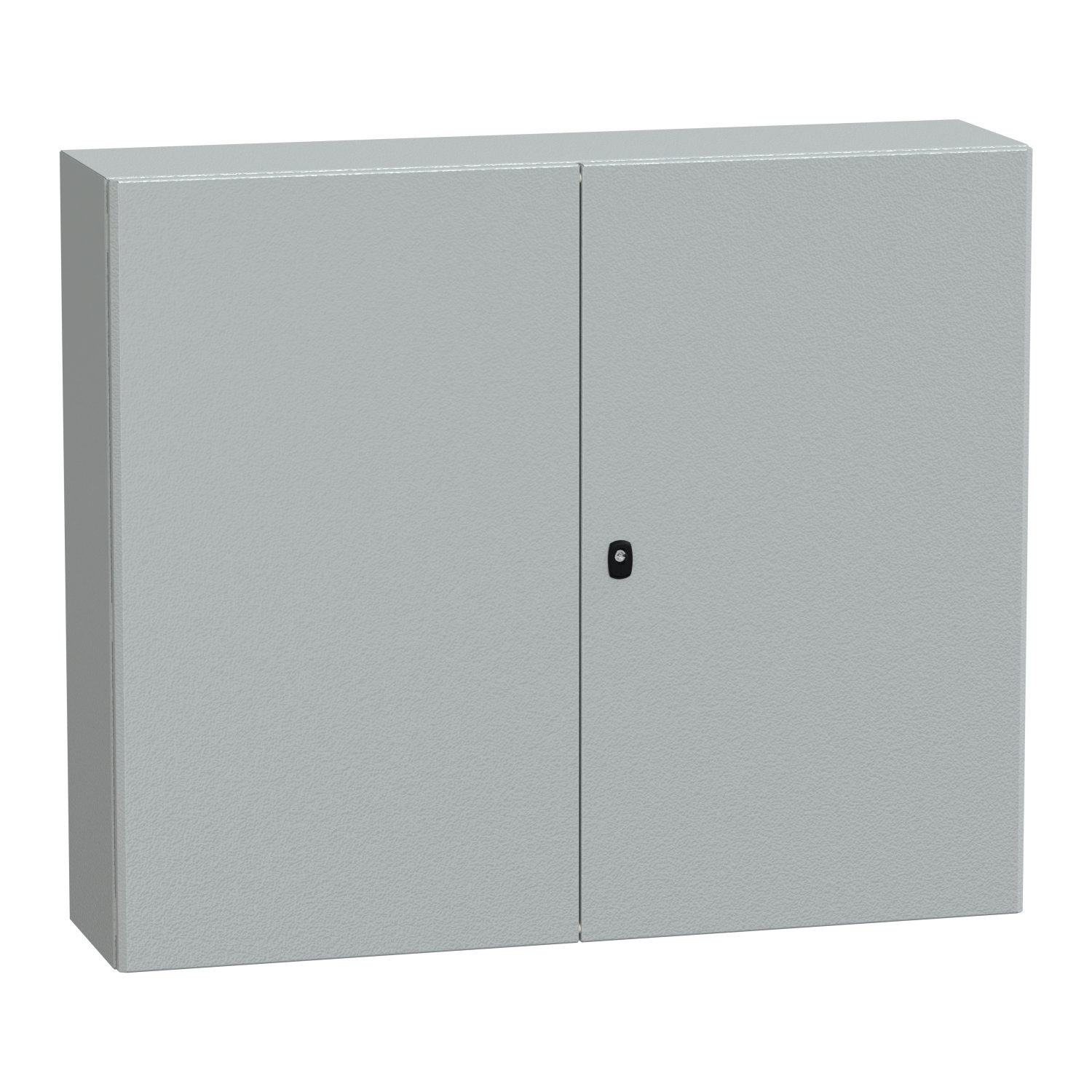

"Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1200x300mm, IP55, IK10"

"Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1200x300mm, IP55, IK10" by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £450.78 to £632.34 excl. VAT. Voltimum+ members earn 85 points per unit.

PanelSeT S3D wall mounted steel enclosure with 2 plain doors. 1000 x 1200 x 300 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 55, IK10, Grey RAL 7035.

Product identifiers

SKU: NSYS3D101230DP
EAN: 3606480160271
GTIN: 3606480160271
MPN: NSYS3D101230DP

Voltimum+ Loyalty Programme Loyalty points: 85

Price range: £ 450.78 - £ 632.34 Excl. VAT

Categories

Enclosures & Panels Weatherproof Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 300 mm
Width 1200 mm
Colour Grey
Height 1000 mm
Material Steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 2
Material quality Other
Surface finishing Powder coating
With mounting plate yes
With ventilation door no
Floor standing wall model yes
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -

Documents

Declaration of Conformity (Sustainability)

NSYS3D101230DP REACh Regulation

Open

Instruction sheet

PanelSeT S3D - Steel Wall-mounted Enclosure - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYS3D101230DP EU RoHS Directive

Open

Declaration of conformity

EU Declaration of Conformity Spacial S3D

Open

Environmental Disclosure

PanelSeT S3D - Steel Wall Mounting Enclosure

Open
