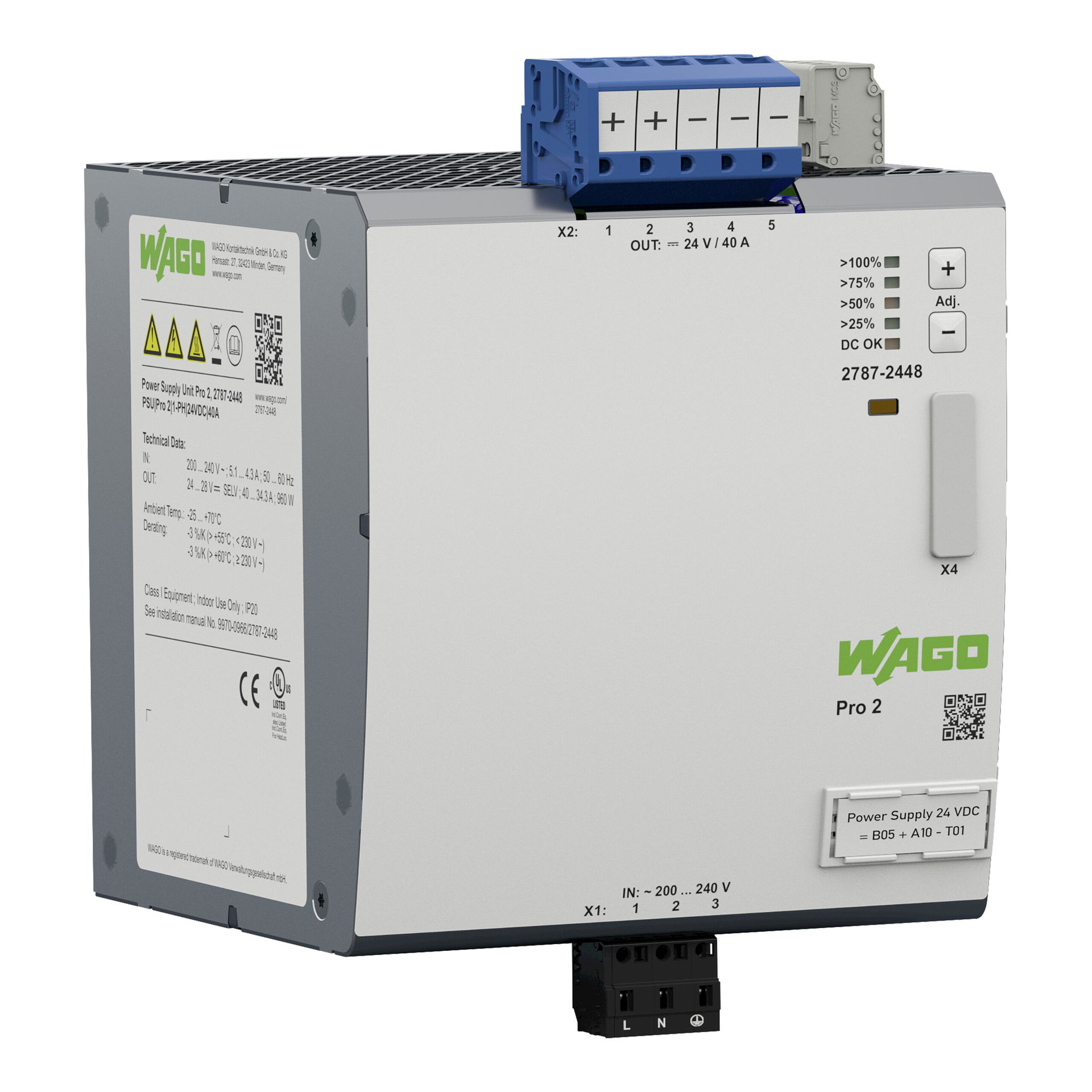

Power supply Pro 2 1-phase

Power supply Pro 2 1-phase

Power supply; Pro 2; 1-phase; 24 VDC output voltage; 40 A output current; TopBoost + PowerBoost; communication capability; Input voltage range: 200 … 240 VAC

Product identifiers

SKU: 2787-2448
EAN: 4055143878296
GTIN: 4055143878296
MPN: 2787-2448

Voltimum+ Loyalty Programme Loyalty points: 11

Price range: £ 509.98 - £ 532.01 Excl. VAT

Specifications

Depth 130
Width 120
Height 130
Stabilized yes
Power output 960
Built-in width -
Built-in height -
Modular version yes
Short-circuit-proof yes
Max. output current 2 -
Rated supply voltage DC 255 - 373
Degree of protection (IP) IP20
SIL according to IEC 61508 -
Suitable for wall mounting no
Type of electric connection Spring clamp connection
2nd secondary output voltage
Secondary voltage adjustable yes
Rated supply voltage AC 60 Hz 180 - 264
Voltage type (supply voltage) DC
Nominal value output current 2 -
Nominal value output voltage 1 24
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 -
