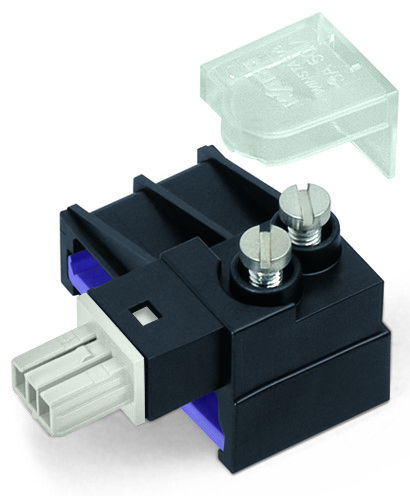

Tap-off module for flat cable 5 x 2.5 mm² + 2 x 1.5 mm² light gray

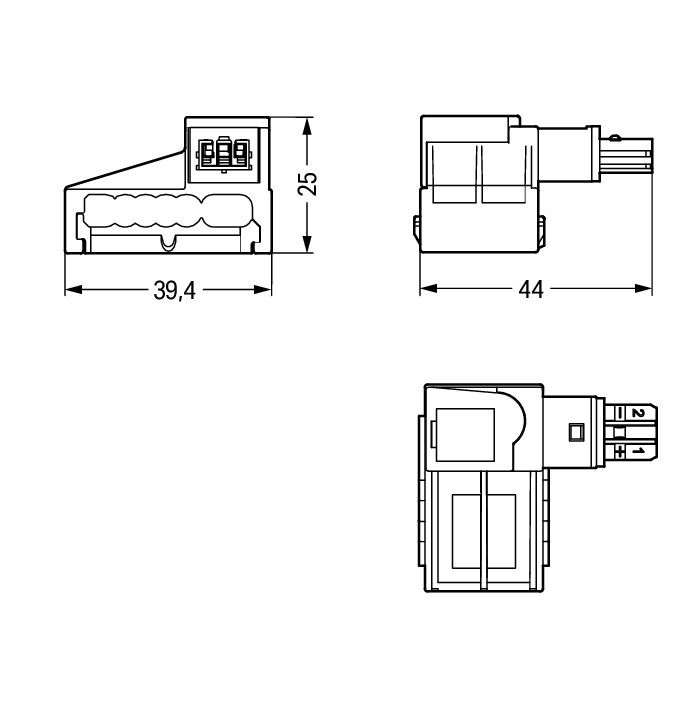

Tap-off module for flat cable 5 x 2.5 mm² + 2 x 1.5 mm² light gray – Image 2 of 2

1 / 2

Tap-off module for flat cable 5 x 2.5 mm² + 2 x 1.5 mm² light gray

Name: Tap-off module for flat cable 5 x 2.5 mm² + 2 x 1.5 mm² light gray
Brand: Wago
SKU: 893-269
Price: 807.50 GBP
Availability: OutOfStock

Tap-off module; for flat cable; 5 x 2.5 mm² + 2 x 1.5 mm²; 2-pole; Cod. F; light gray

Product identifiers

SKU: 893-269

EAN: 4045454267308

GTIN: 4045454267308

MPN: 893-269

Loyalty points: 16 (x50)

Price: £ 807.50 Excl. VAT

Specifications

Model	Branch
Width	39.4
Height	25
Length	44
Fire load	0
Transparent	no
Halogen free	yes
Phase pickup	-
Rated current	3
Rated voltage	50
Cable diameter
Housing colour	Black
Number of poles	2
Type of locking	None
Contact material	CuSn
Housing material	Polyamide (PA)
Mechanical coding	yes
Pole codification	1+, 2-
Connection round cable	Screw connection
Degree of protection (IP)	IP20
Colour coding/contact insert	Grey
Type of integrated switching	None
RAL-number coding/contact insert	-
Connection cross section (solid-core)
Connection cross section (fine-strand)
With integrated DIN rail (top hat rail)	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
