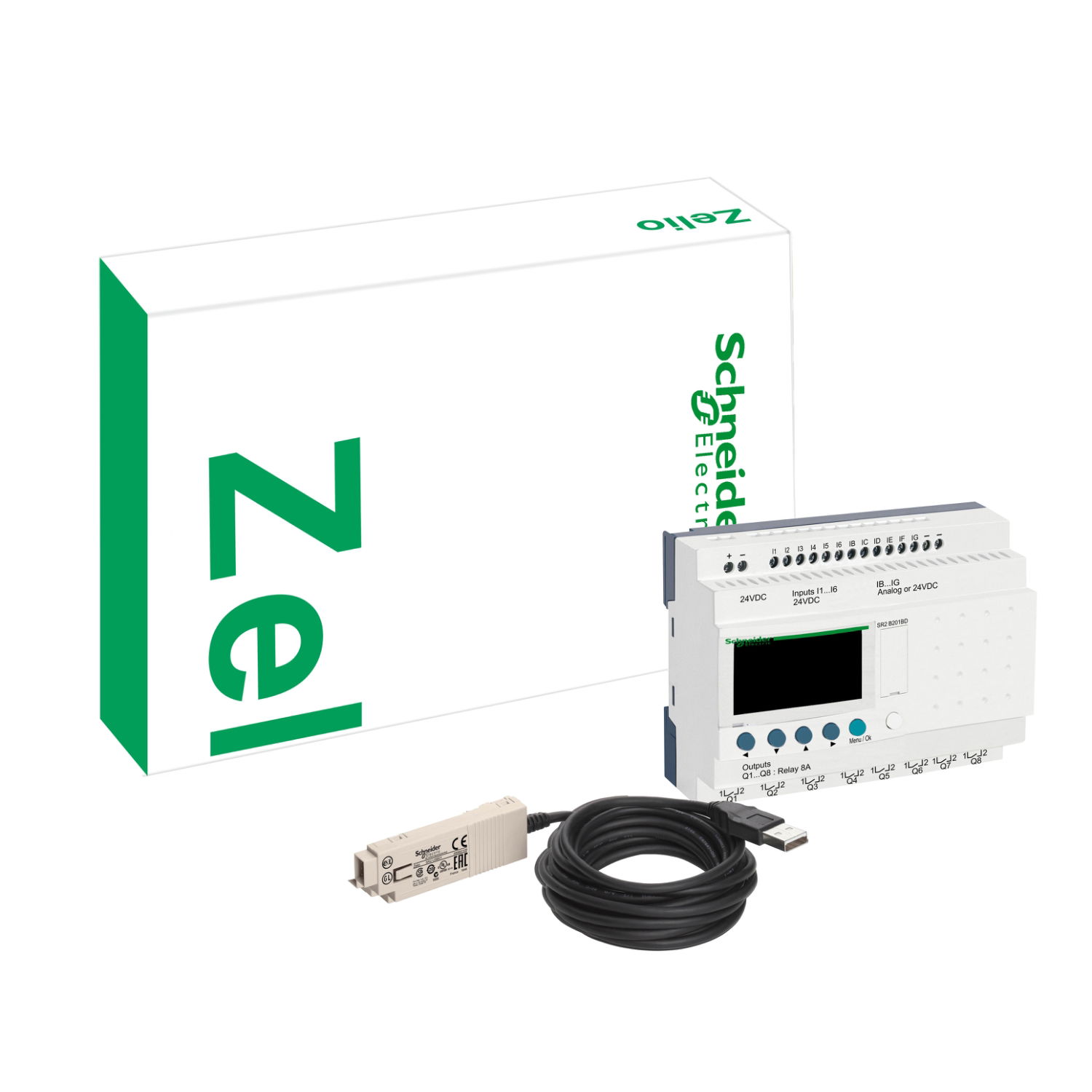

Compact smart relay Zelio Logic - “discovery” pack - 12 I O - 24 V DC

Compact smart relay Zelio Logic - “discovery” pack - 12 I O - 24 V DC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £284.18 excl. VAT. Voltimum+ members earn 1 point per unit.

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 12 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 8 resistive discrete inputs with voltage of 24V DC, 4 analogue input ranges from 0V to 10V, 0V to 24V and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Product identifiers

SKU: SR2PACKBD
EAN: 3389110549386
GTIN: 3389110549386
MPN: SR2PACKBD

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 284.18 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Contains monitor yes
Contains libraries yes
Contains memory unit yes
Contains module rack no
Contains basic device yes
Contains control unit yes
Contains power supply no
Software preinstalled no
Contains visualization yes
Contains connection cable yes
Contains simulation module yes
Contains communication module yes
Contains engineering software yes
Contains analogue input module no
Contains analogue output module no

Documents

Safety Data Sheet (SDS or MSDS)

SDS for Zelio offers with battery

Open

Declaration of Conformity (Sustainability)

SR2PACKBD REACh Regulation

Open

User guide

Zelio Logic Programming Guide

Open

Instruction sheet

SR2A... / SR2B... Logic compact module Zelio with screen

Open

Product data sheet

Open

Catalog

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

Open

Declaration of Conformity (Sustainability)

SR2PACKBD EU RoHS Directive

Open

Environmental Disclosure

Zelio Logic Smart Relays

Open
