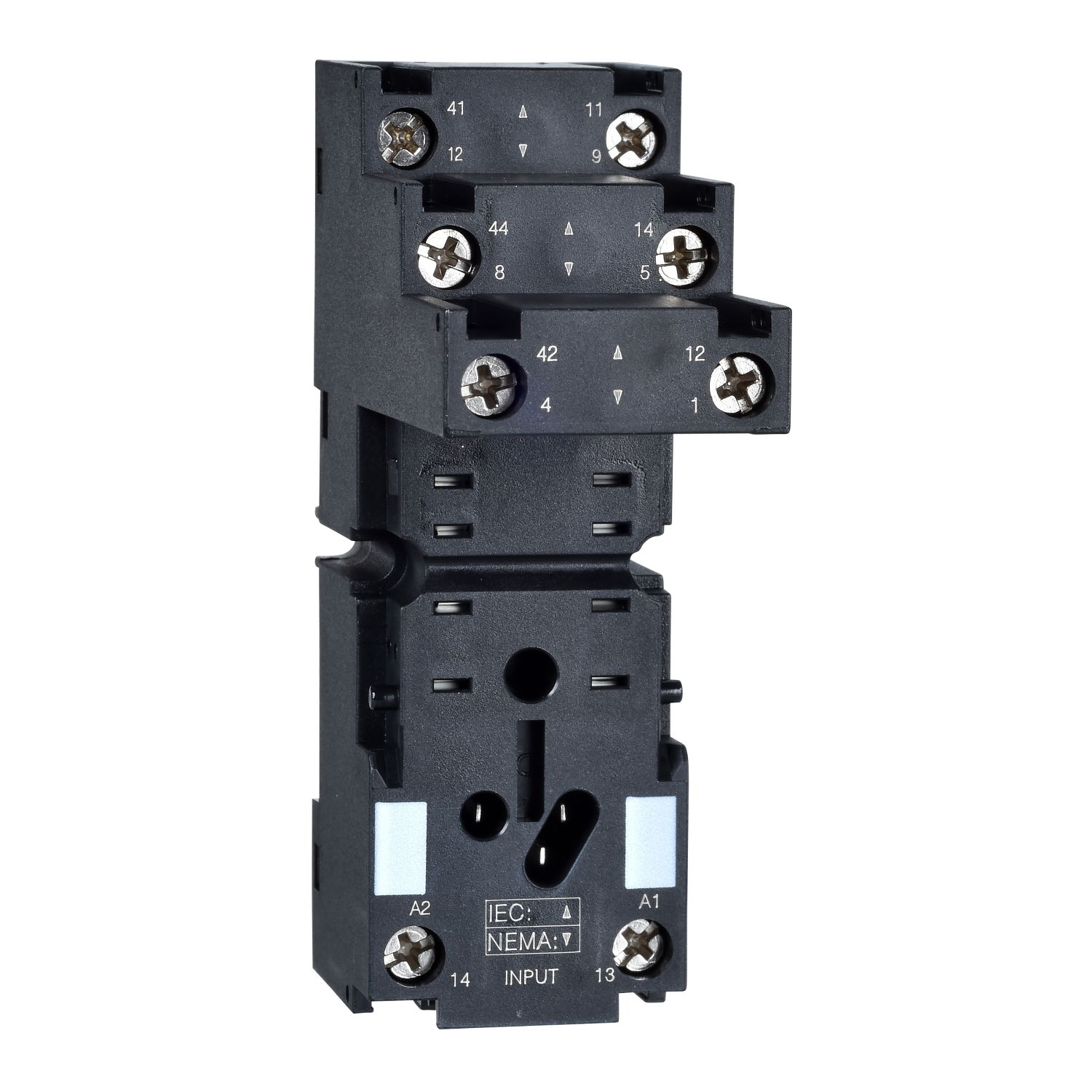

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC

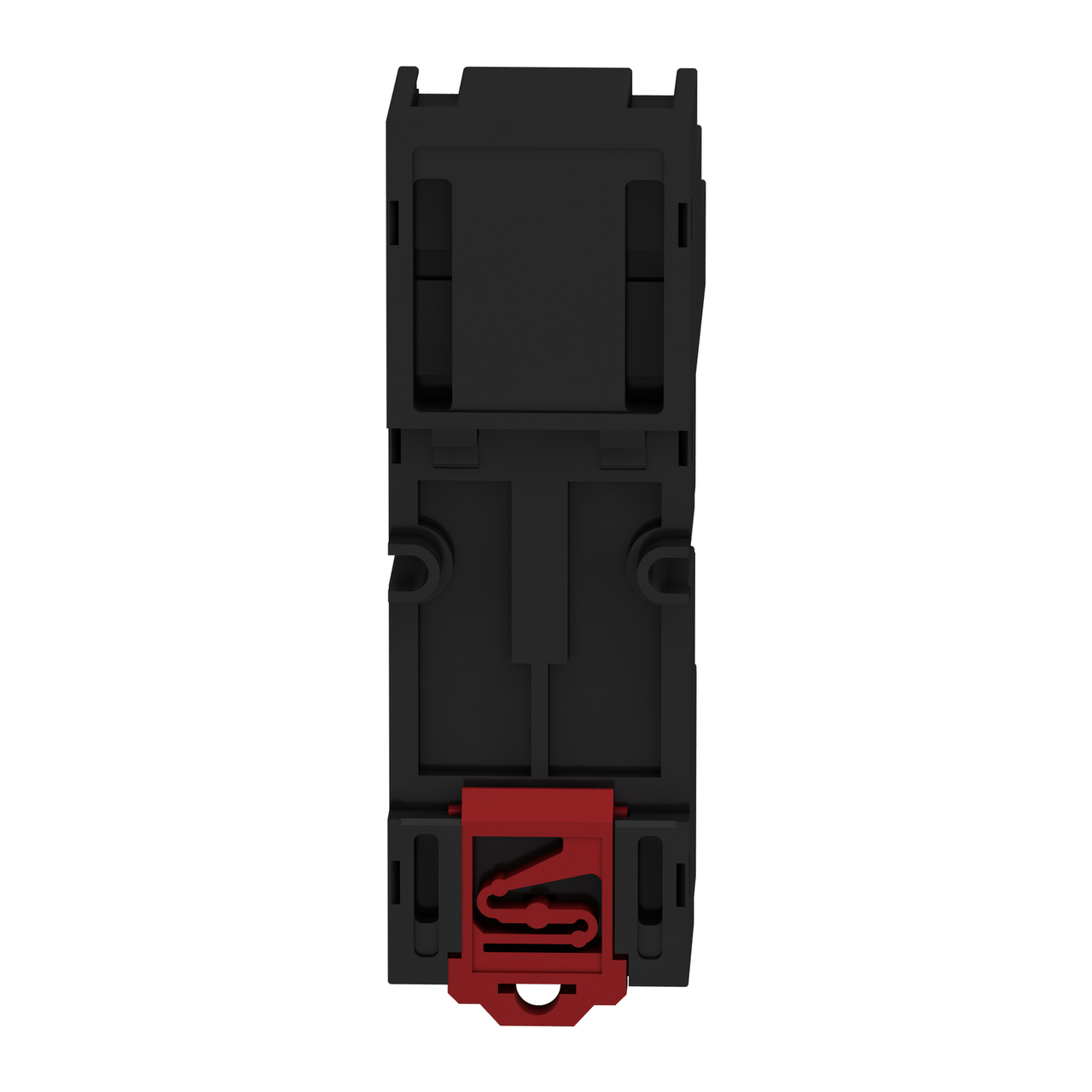

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 2 of 10

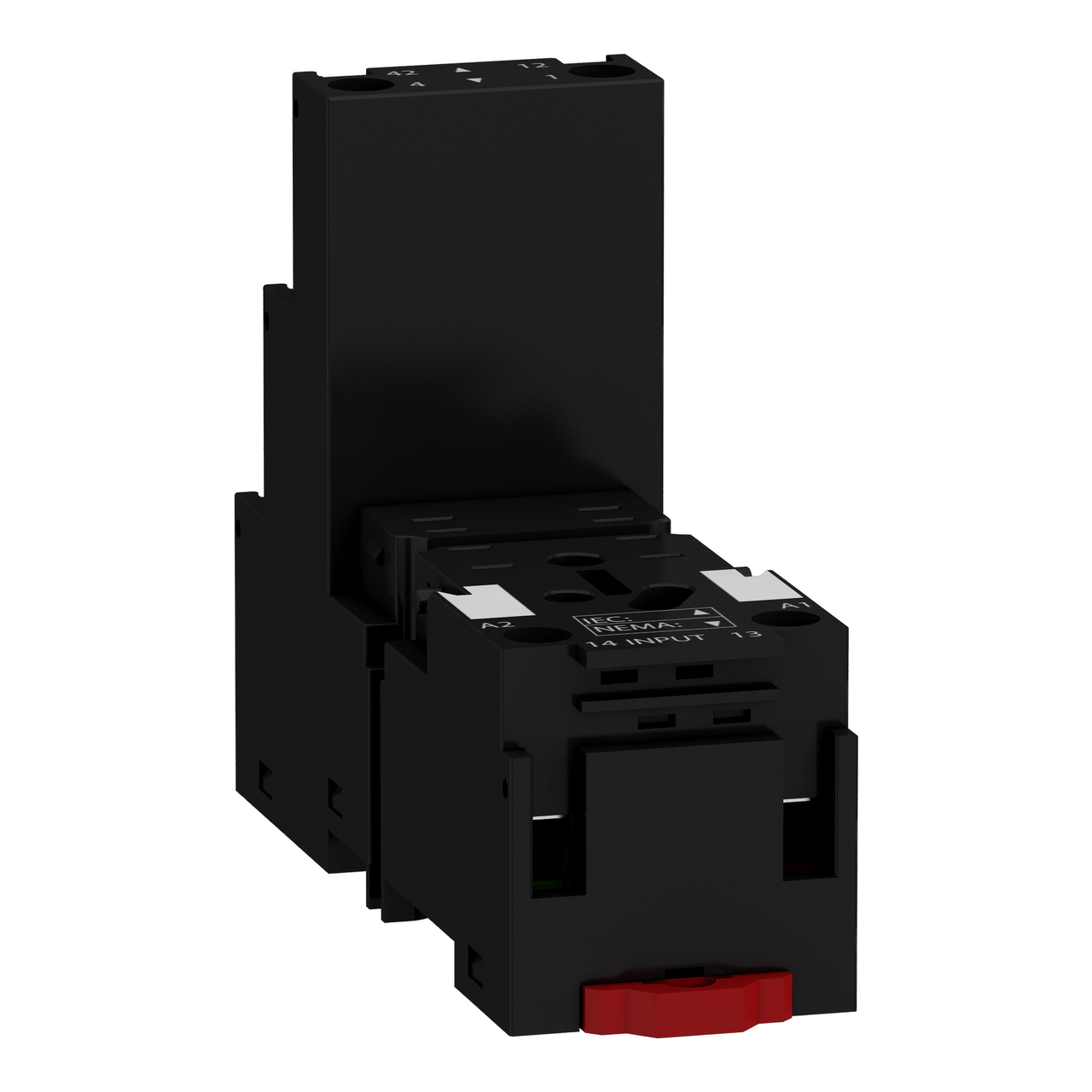

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 3 of 10

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 4 of 10

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 5 of 10

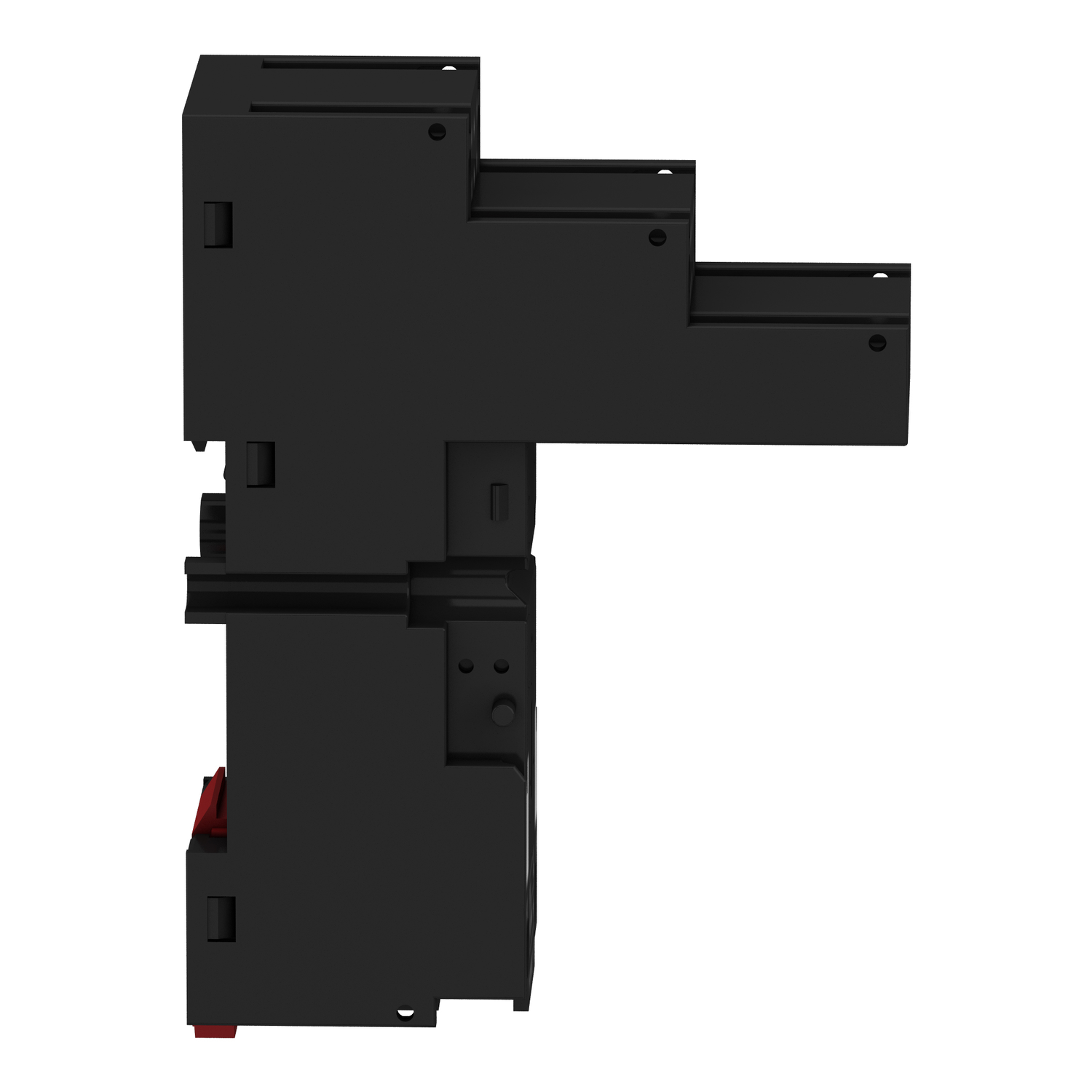

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 6 of 10

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 7 of 10

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC – Image 8 of 10

1 / 10

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC

Name: Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC
Brand: Schneider Electric
SKU: RXZE2S108M
Availability: InStock

Socket, separate contact, 12 A, relay type RXM2, screw connector, 250 V AC by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at all of them. Trade prices range from £3.26 to £5.80 excl. VAT. Voltimum+ members earn 1 point per unit.

"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RXZE2S108M

EAN: 3389119404266

GTIN: 3389119404266

MPN: RXZE2S108M

Loyalty points: 1

Price range: £ 3.26 - £ 5.80 Excl. VAT

Specifications

Depth	61 mm
Width	27 mm
Height	79 mm
Number of pins	8
Mounting method	DIN rail (top hat rail) 35 mm
With detachable clamps	no
Function extension possible	no
Type of electric connection	Plug-in connection
