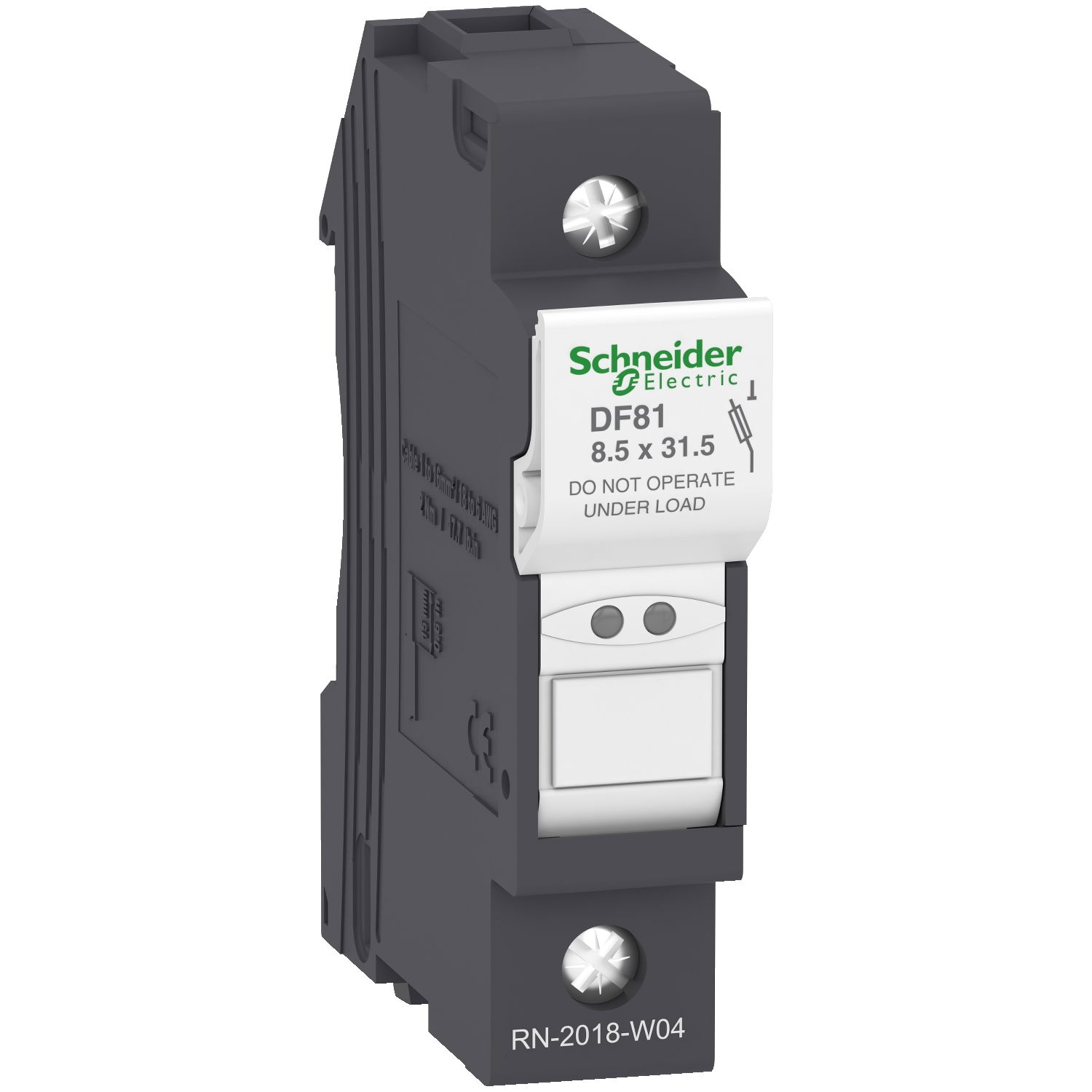

Fuse carrier TeSys DF, 1P 25A, fuse size 8.5x32 mm

Link copied
SKU
EAN
GTIN
MPN

Fuse carrier TeSys DF, 1P 25A, fuse size 8.5x32 mm by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £4.91 to £8.53 excl. VAT. Voltimum+ members earn 1 point per unit.

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, EAC, Marine).

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 4.91 - £ 8.53 Excl. VAT

Categories

Switchgear Low Voltage Switchgear Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Lockable yes
For fuse size 8.5x31.5 mm
Built-in depth 56.5 mm
Mounting method DIN rail
Nominal voltage 500 V
Number of poles 1
Degree of protection (IP) IP20
With optical defect indication no
Concurrently switching neutral conductor no
