| Screen |
- |
| Weight |
350 |
| AWG size |
- |
| Drain wire |
- |

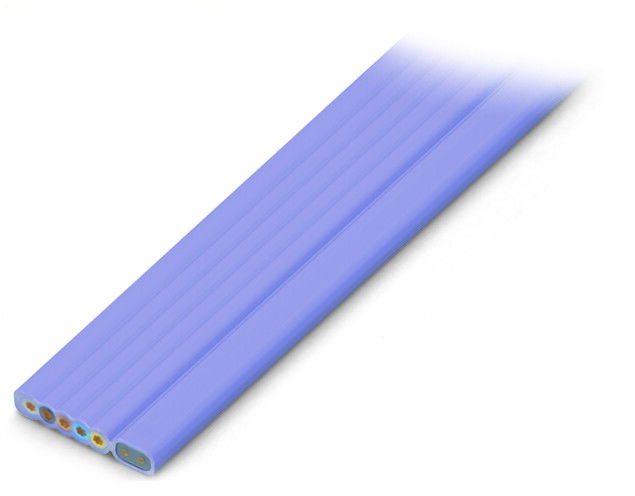

| Cable geometry |
Flat |
| Number of cores |
7 |
| Strand diameter |
- |
| Conductor surface |
Tinned |
| Nominal voltage U |
1000 |
| Stranding element |
No |
| Torsion resistant |
- |
| Conductor category |
Class 5 = flexible |
| Conductor material |
Copper |
| Material armouring |
- |
| Nominal voltage U0 |
600 |
| Protective barrier |
- |
| Shape of conductor |
Round |
| Suspension element |
None |

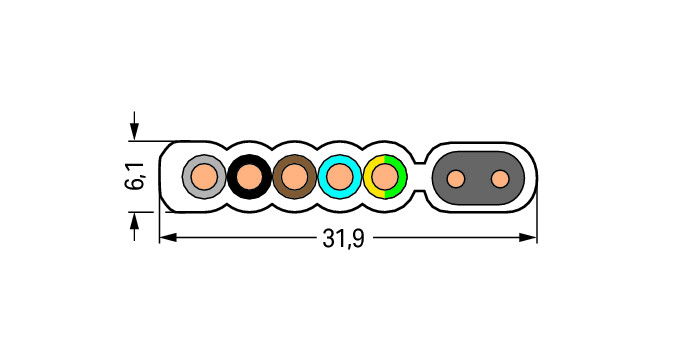

| Cable width approx. |
31.9 |
| Colour outer sheath |
- |
| Core identification |
Colour |
| Cable height approx. |
6.1 |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Screen over stranding |
None |
| Outer diameter approx. |
- |
| Armouring/reinforcement |
- |
| Material core insulation |
- |
| With protective conductor |
yes |
| Max. conductor temperature |
- |
| Number of stranding elements |
- |
| Screen over stranding element |
None |
| Specification core insulation |
- |
| Conductor resistance at 20 °C |
8.21 |
| Nominal cross section conductor |
2.5 |
| Number of strands per conductor |
- |
| Number of pilot/reduced conductors |
- |
| Specification material outer sheath |
- |
| Low smoke according to EN IEC 61034-2 |
- |
| Nominal cross section conductor (AWG) |
- |
| Halogen free according to EN IEC 60754-1 |
no |
| Halogen free according to EN IEC 60754-2 |
no |
| Halogen free according to EN IEC 60754-3 |
no |
| Max. tensile strength during installation |
- |
| Core identification according to HD 308 S2 |
- |
| Flame retardant according to IEC 60332-1-2 |
- |
| Oil resistant according to EN IEC 60811-404 |
no |
| Nominal cross section pilot/reduced conductors |
- |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Acidity |
- |
| Flame retardant according to IEC 60332-3-22 (Cat A) |
- |
| Flame retardant according to IEC 60332-3-23 (Cat B) |
- |
| Flame retardant according to IEC 60332-3-24 (Cat C) |
- |
| Flame retardant according to IEC 60332-3-25 (Cat D) |
- |
| Nominal cross section pilot/reduced conductors (AWG) |
- |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) |
- |
| Reaction-to-fire according to EN 13501-6: Smoke production |
- |
| Low temperature resistant according to EN 60811-504+505+506 |
- |
| Permitted cable outer temperature during assembling/handling |
|
| Min. permitted bending radius, moving application/free movement |
- |
| Permitted cable outer temperature after assembling without vibration |
-25 - 70 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
- |
| Min. permitted bending radius, moving application with forced guidance |
- |
| Min. permitted bending radius, stationary application/permanent installation |
36 |
